| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19035cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19035cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,259,840 | 90,354,240 |
| Size | 505.7 MB | 86.2 MB |
| Events in quadrant A | 3,141,257 | 586,291 |
| Events in quadrant B | 3,446,700 | 603,713 |
| Events in quadrant C | 3,339,291 | 574,862 |
| Events in quadrant D | 5,704,225 | 531,042 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13177 | 1 |
| B | 0 | 14125 | 2 |
| C | 0 | 13559 | 1 |
| D | 0 | 21277 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6310 | 37 | 0.586371% |
| B | 6309 | 100 | 1.585037% |
| C | 6310 | 74 | 1.172742% |
| D | 6310 | 419 | 6.640254% |

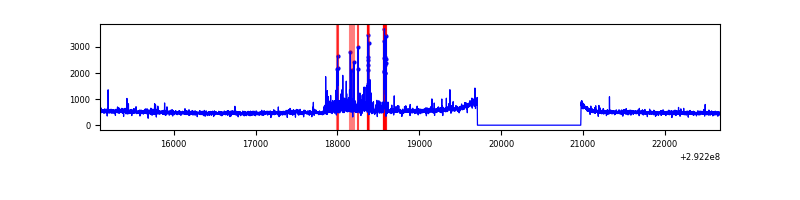

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6311 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7574 | 6310 | 28 | 28 | 0.37% | 0.44% |  |
| C | 7575 | 6311 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7575 | 6311 | 351 | 351 | 4.63% | 5.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 6 | 15689 | 91.18 | 808 | 792 | 163.4 |
| A | 9 | 143 | 15061 | 87.33 | 808 | 792 | 163.4 |
| A | 13 | 254 | 7351 | 40.14 | 808 | 792 | 163.4 |
| B | 7 | 220 | 205687 | 1347.0 | 805 | 786 | 152.1 |
| B | 0 | 189 | 53815 | 348.61 | 805 | 786 | 152.1 |
| B | 3 | 112 | 34007 | 218.39 | 805 | 786 | 152.1 |
| C | 3 | 233 | 149447 | 814.39 | 779 | 785 | 182.5 |
| C | 14 | 238 | 121531 | 661.47 | 779 | 785 | 182.5 |
| C | 9 | 15 | 25251 | 134.03 | 779 | 785 | 182.5 |
| D | 7 | 238 | 2726741 | 14578.93 | 771 | 748 | 187.0 |
| D | 1 | 52 | 39352 | 206.46 | 771 | 748 | 187.0 |
| D | 2 | 234 | 26874 | 139.72 | 771 | 748 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

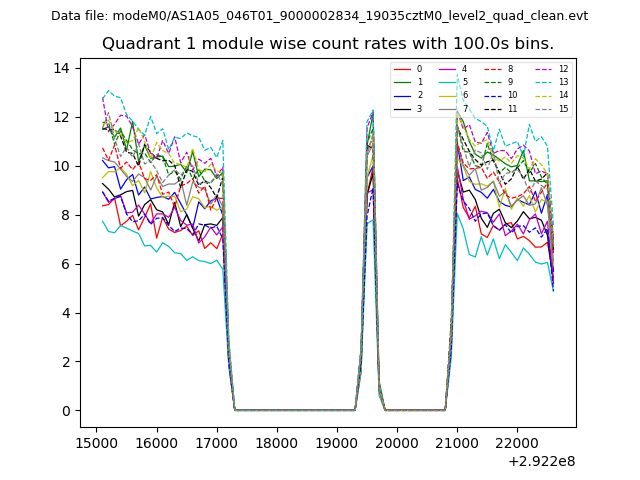

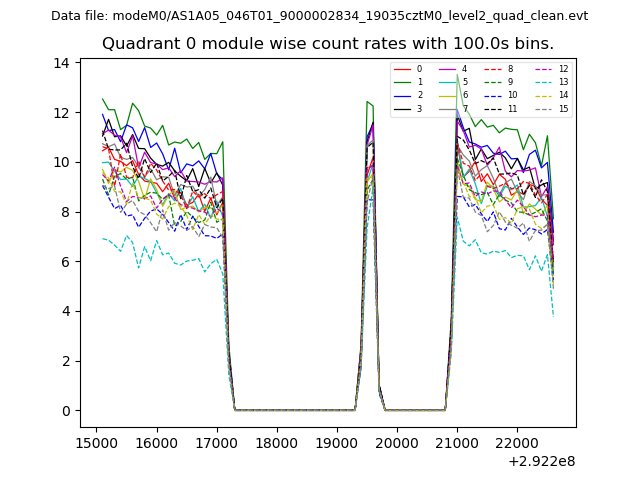

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

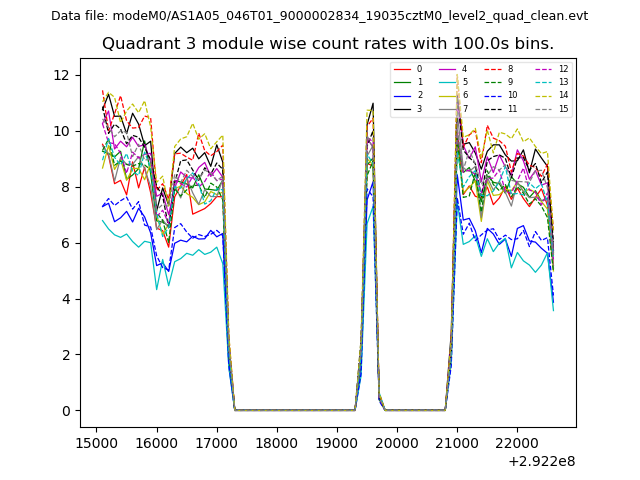

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

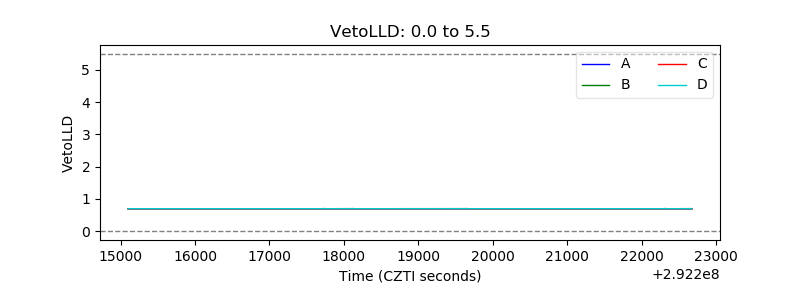

| Veto LLD |  |
| Alpha Counter |  |

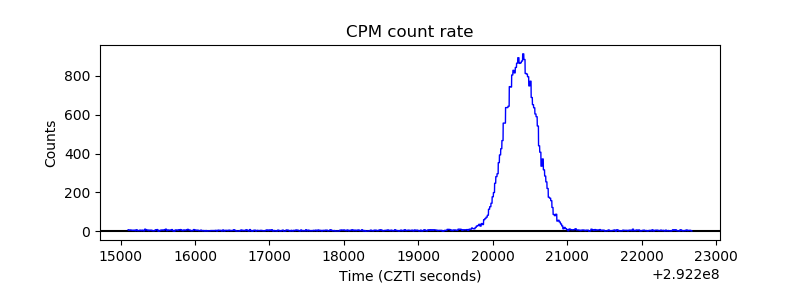

| _CPM_Rate |  |
| CZT Counter |  |

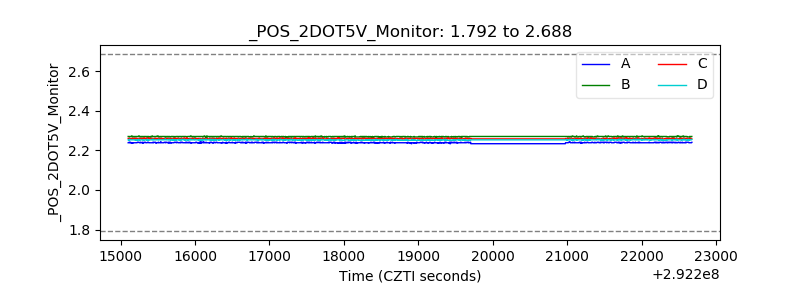

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

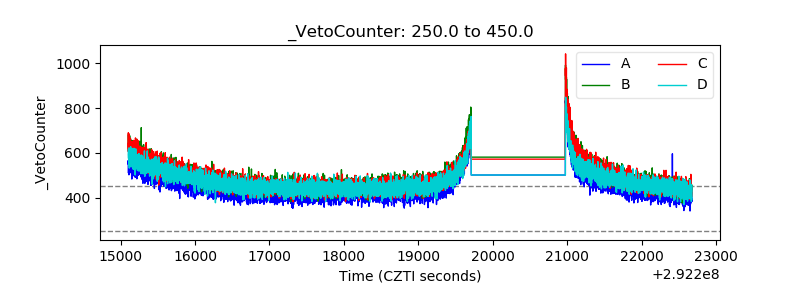

| Veto Counter |  |
