| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19042cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19042cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,375,718,400 | 221,999,040 |
| Size | 1.3 GB | 211.7 MB |
| Events in quadrant A | 8,896,086 | 1,378,961 |
| Events in quadrant B | 9,624,754 | 1,395,860 |
| Events in quadrant C | 9,234,606 | 1,351,803 |
| Events in quadrant D | 12,642,024 | 1,305,756 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38738 | 4 |
| B | 0 | 40584 | 4 |
| C | 0 | 38914 | 5 |
| D | 0 | 50098 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18749 | 285 | 1.520081% |
| B | 18749 | 363 | 1.936103% |
| C | 18748 | 322 | 1.717517% |
| D | 18748 | 1133 | 6.043311% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

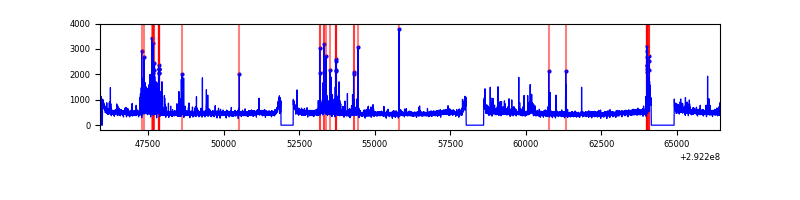

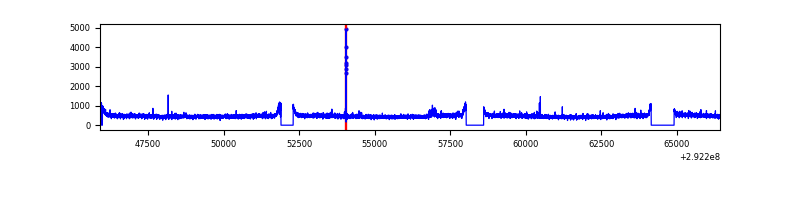

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20524 | 18753 | 7 | 7 | 0.03% | 0.04% |  |
| B | 20524 | 18753 | 42 | 42 | 0.20% | 0.22% |  |
| C | 20523 | 18752 | 3 | 3 | 0.01% | 0.02% |  |
| D | 20523 | 18752 | 722 | 722 | 3.52% | 3.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 54496 | 113.05 | 2283 | 2231 | 462.3 |
| A | 8 | 144 | 53498 | 110.89 | 2283 | 2231 | 462.3 |
| A | 13 | 254 | 21082 | 40.77 | 2283 | 2231 | 462.3 |
| B | 7 | 220 | 312631 | 709.47 | 2275 | 2214 | 437.5 |
| B | 3 | 112 | 122016 | 273.81 | 2275 | 2214 | 437.5 |
| B | 0 | 189 | 88362 | 196.9 | 2275 | 2214 | 437.5 |
| C | 14 | 238 | 337790 | 647.51 | 2201 | 2219 | 518.2 |
| C | 3 | 233 | 216858 | 414.16 | 2201 | 2219 | 518.2 |
| C | 9 | 15 | 105898 | 200.06 | 2201 | 2219 | 518.2 |
| D | 7 | 238 | 4241176 | 7983.24 | 2176 | 2113 | 531.0 |
| D | 2 | 234 | 85507 | 157.05 | 2176 | 2113 | 531.0 |
| D | 11 | 176 | 58122 | 105.48 | 2176 | 2113 | 531.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

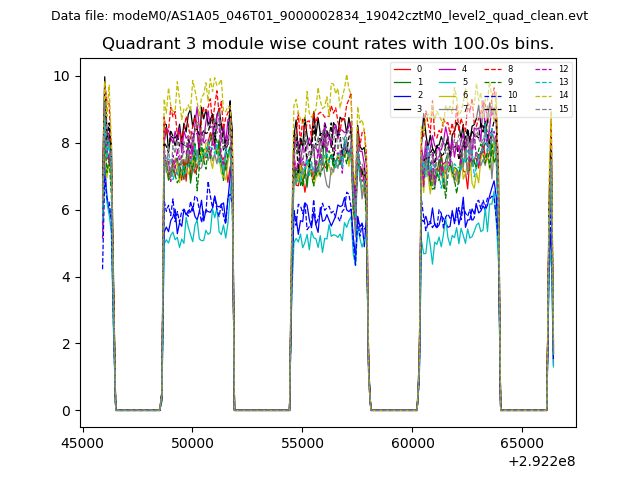

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

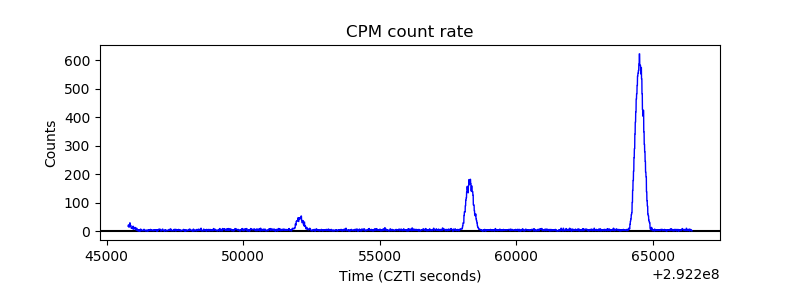

| _CPM_Rate |  |

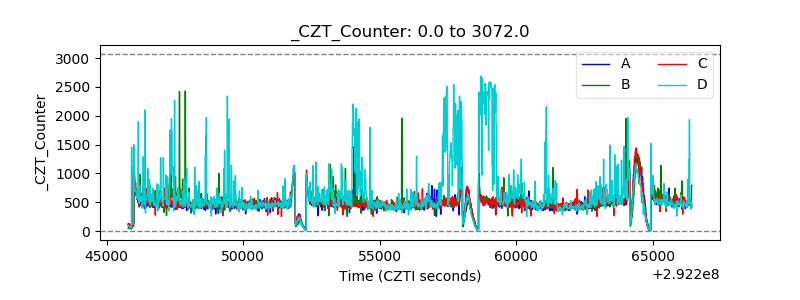

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

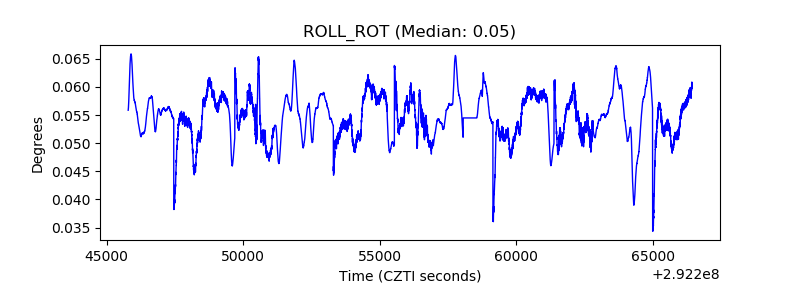

| _ROLL_ROT |  |
| _Roll_DEC |  |

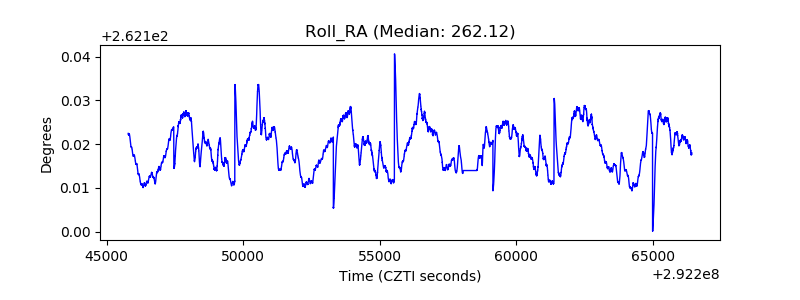

| _Roll_RA |  |

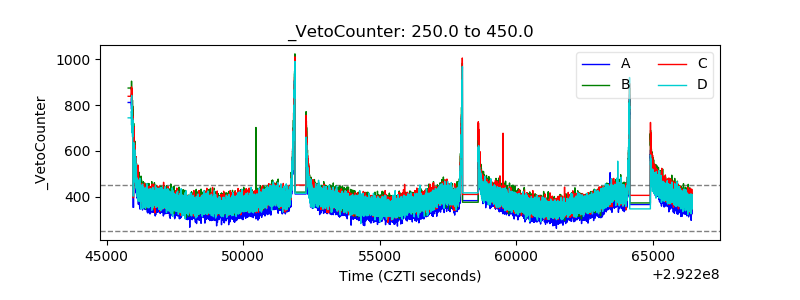

| Veto Counter |  |
