| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19048cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19048cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,906,560 | 111,991,680 |
| Size | 473.9 MB | 106.8 MB |
| Events in quadrant A | 3,397,319 | 736,333 |
| Events in quadrant B | 3,502,803 | 765,775 |
| Events in quadrant C | 3,853,547 | 733,021 |
| Events in quadrant D | 3,849,890 | 699,058 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14050 | 2 |
| B | 0 | 14451 | 2 |
| C | 0 | 15695 | 2 |
| D | 0 | 15626 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6560 | 48 | 0.731707% |
| B | 6560 | 68 | 1.036585% |
| C | 6560 | 96 | 1.463415% |
| D | 6560 | 134 | 2.042683% |

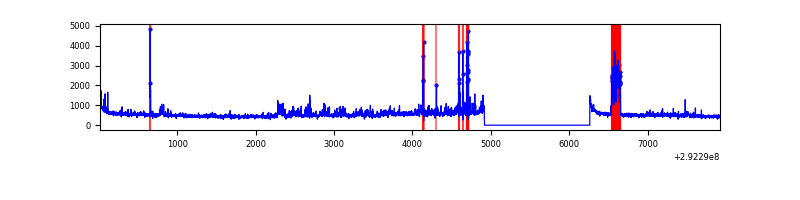

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7905 | 6561 | 19 | 19 | 0.24% | 0.29% |  |
| B | 7905 | 6561 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7905 | 6561 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7905 | 6561 | 93 | 93 | 1.18% | 1.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 42616 | 243.14 | 861 | 848 | 171.8 |
| A | 0 | 31 | 33430 | 189.67 | 861 | 848 | 171.8 |
| A | 13 | 254 | 8391 | 43.91 | 861 | 848 | 171.8 |
| B | 7 | 220 | 41987 | 250.52 | 869 | 848 | 164.2 |
| B | 3 | 112 | 35200 | 209.19 | 869 | 848 | 164.2 |
| B | 12 | 111 | 18653 | 108.43 | 869 | 848 | 164.2 |
| C | 3 | 233 | 310511 | 1584.81 | 842 | 851 | 195.4 |
| C | 14 | 238 | 131901 | 670.7 | 842 | 851 | 195.4 |
| C | 9 | 15 | 122157 | 620.83 | 842 | 851 | 195.4 |
| D | 7 | 238 | 367157 | 1807.93 | 837 | 813 | 202.6 |
| D | 1 | 83 | 294076 | 1447.27 | 837 | 813 | 202.6 |
| D | 2 | 234 | 24741 | 118.09 | 837 | 813 | 202.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

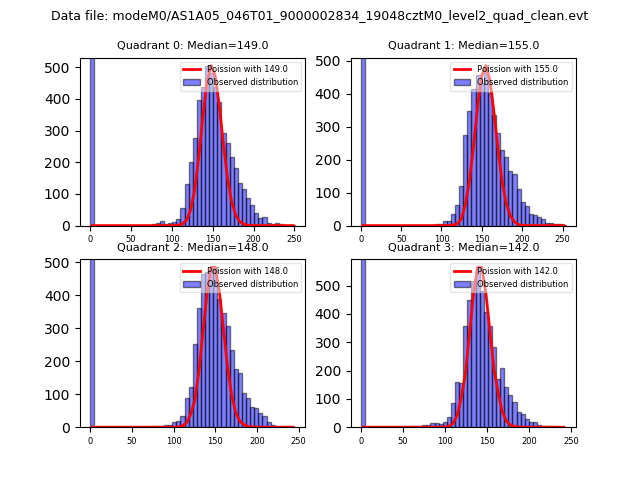

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

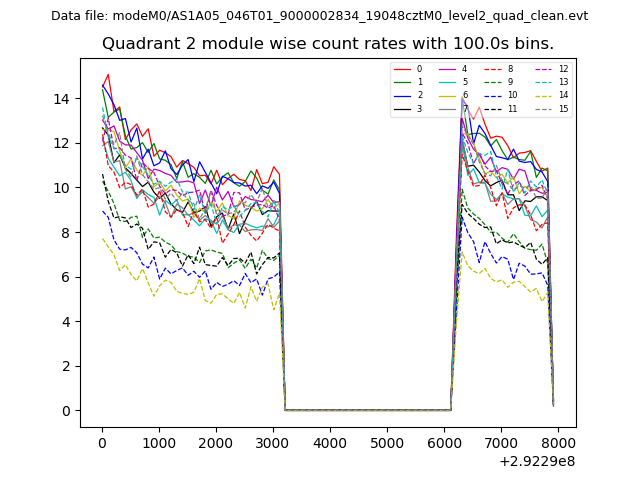

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

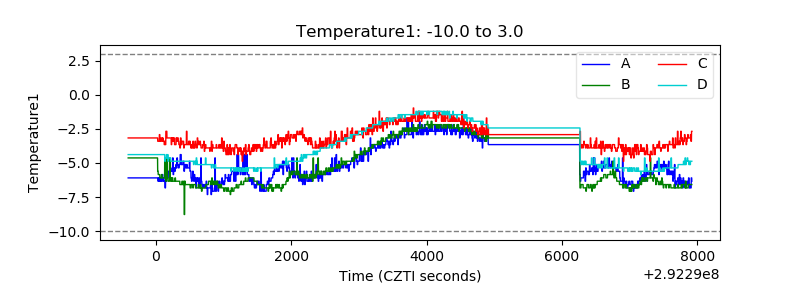

| Temperature 1 |  |
| Veto HV Monitor |  |

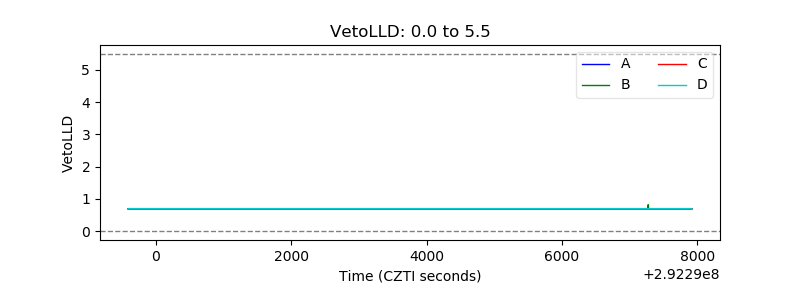

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

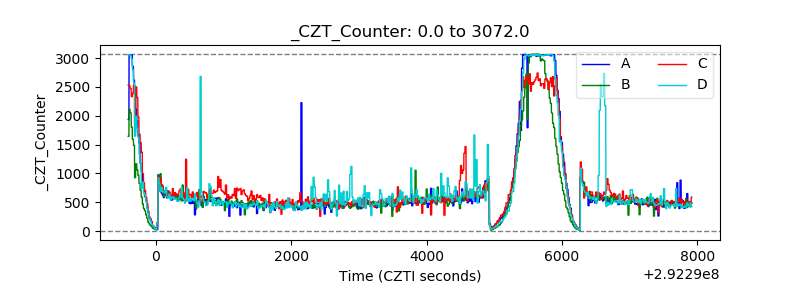

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

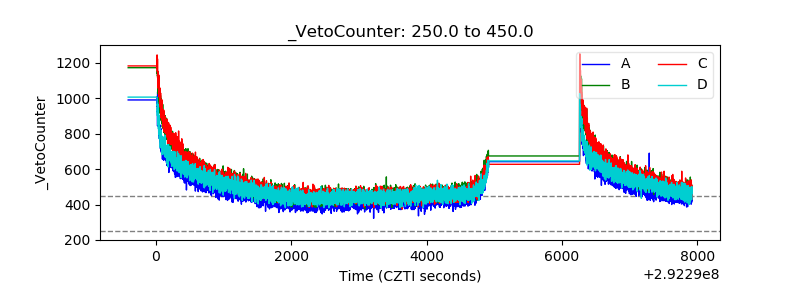

| Veto Counter |  |
