| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19056cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19056cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,104,845,760 | 143,303,040 |
| Size | 1.0 GB | 136.7 MB |
| Events in quadrant A | 6,111,034 | 883,488 |
| Events in quadrant B | 7,133,808 | 894,272 |
| Events in quadrant C | 9,221,617 | 839,089 |
| Events in quadrant D | 10,114,388 | 823,393 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26636 | 3 |
| B | 0 | 29438 | 3 |
| C | 0 | 35598 | 3 |
| D | 0 | 38995 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13013 | 119 | 0.914470% |
| B | 13013 | 246 | 1.890417% |
| C | 13013 | 1514 | 11.634519% |
| D | 13013 | 1173 | 9.014063% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14218 | 13015 | 1 | 1 | 0.01% | 0.01% |  |
| B | 14218 | 13015 | 53 | 53 | 0.37% | 0.41% |  |
| C | 14218 | 13015 | 1127 | 1127 | 7.93% | 8.66% |  |
| D | 14218 | 13015 | 976 | 976 | 6.86% | 7.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 16617 | 47.06 | 1580 | 1542 | 320.4 |
| A | 0 | 226 | 13991 | 38.86 | 1580 | 1542 | 320.4 |
| A | 3 | 137 | 12681 | 34.77 | 1580 | 1542 | 320.4 |
| B | 3 | 112 | 476188 | 1565.64 | 1573 | 1531 | 303.2 |
| B | 7 | 220 | 327014 | 1073.6 | 1573 | 1531 | 303.2 |
| B | 0 | 189 | 53588 | 171.71 | 1573 | 1531 | 303.2 |
| C | 9 | 54 | 3288317 | 9612.89 | 1454 | 1463 | 341.9 |
| C | 14 | 238 | 223112 | 648.25 | 1454 | 1463 | 341.9 |
| C | 3 | 233 | 40162 | 113.18 | 1454 | 1463 | 341.9 |
| D | 7 | 238 | 4006426 | 10866.16 | 1508 | 1465 | 368.6 |
| D | 1 | 52 | 330409 | 892.48 | 1508 | 1465 | 368.6 |
| D | 2 | 234 | 59256 | 156.8 | 1508 | 1465 | 368.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

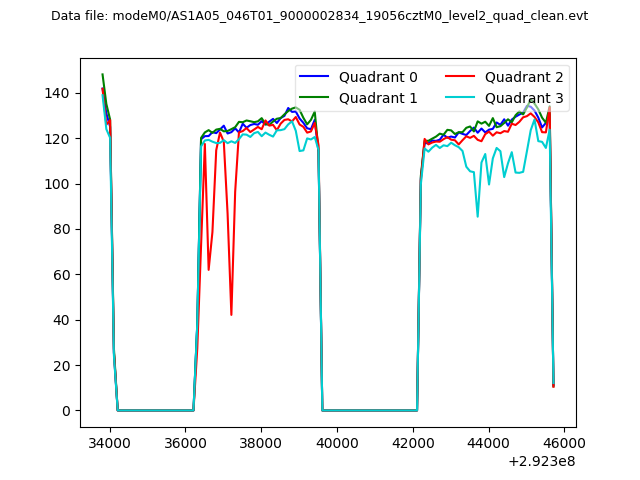

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

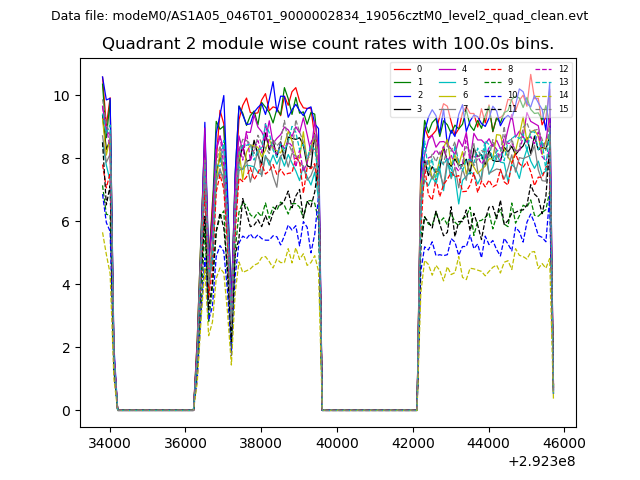

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
