| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19058cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19058cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,713,280 | 82,471,680 |
| Size | 530.0 MB | 78.7 MB |
| Events in quadrant A | 3,167,782 | 523,530 |
| Events in quadrant B | 3,464,449 | 530,901 |
| Events in quadrant C | 3,272,821 | 514,545 |
| Events in quadrant D | 6,478,184 | 468,839 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13667 | 2 |
| B | 0 | 14533 | 2 |
| C | 0 | 13713 | 2 |
| D | 0 | 23733 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6587 | 52 | 0.789434% |
| B | 6587 | 102 | 1.548505% |
| C | 6586 | 84 | 1.275433% |
| D | 6586 | 809 | 12.283632% |

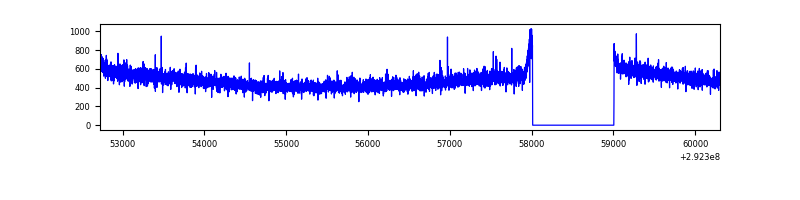

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6588 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7582 | 6588 | 15 | 15 | 0.20% | 0.23% |  |
| C | 7581 | 6587 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7581 | 6587 | 596 | 596 | 7.86% | 9.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8978 | 48.89 | 820 | 801 | 167.3 |
| A | 0 | 226 | 7196 | 38.23 | 820 | 801 | 167.3 |
| A | 3 | 137 | 6324 | 33.02 | 820 | 801 | 167.3 |
| B | 7 | 220 | 88696 | 554.93 | 819 | 797 | 158.4 |
| B | 3 | 112 | 74460 | 465.05 | 819 | 797 | 158.4 |
| B | 0 | 189 | 26494 | 162.23 | 819 | 797 | 158.4 |
| C | 14 | 238 | 123230 | 656.53 | 792 | 798 | 186.5 |
| C | 3 | 233 | 62145 | 328.97 | 792 | 798 | 186.5 |
| C | 13 | 61 | 5483 | 25.12 | 792 | 798 | 186.5 |
| D | 7 | 238 | 3328690 | 17757.94 | 766 | 744 | 187.4 |
| D | 1 | 52 | 241260 | 1283.39 | 766 | 744 | 187.4 |
| D | 2 | 234 | 28318 | 147.14 | 766 | 744 | 187.4 |

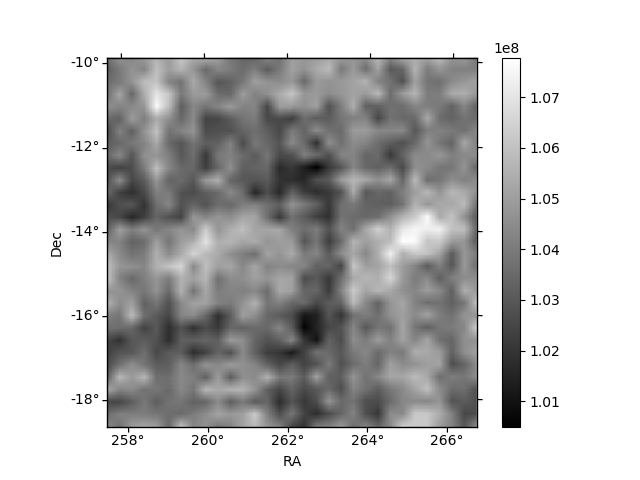

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

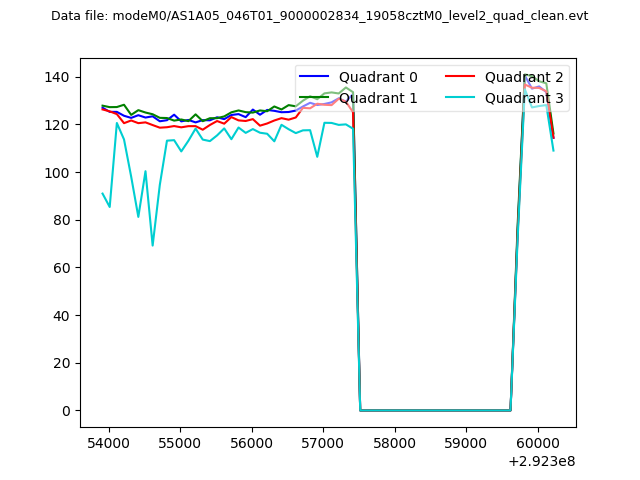

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

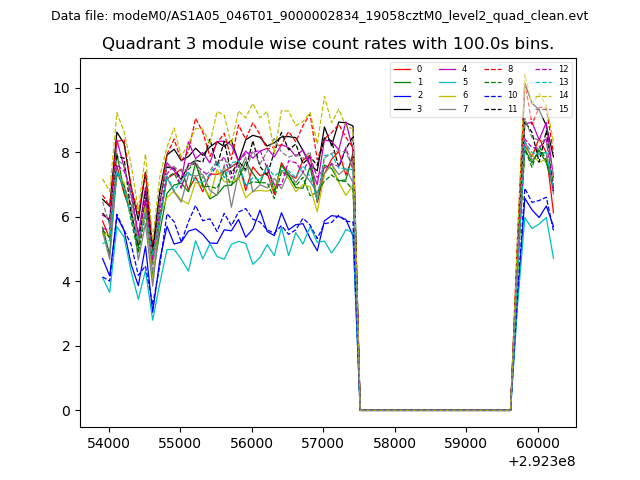

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

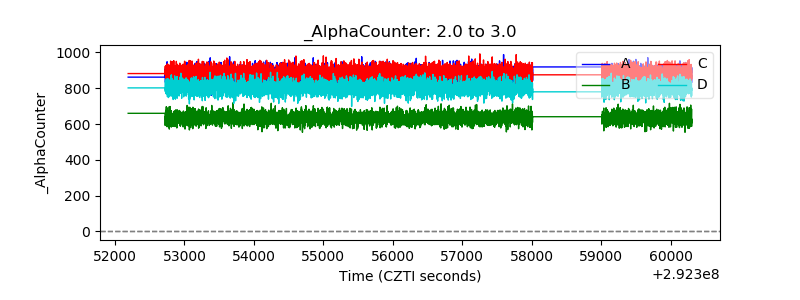

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

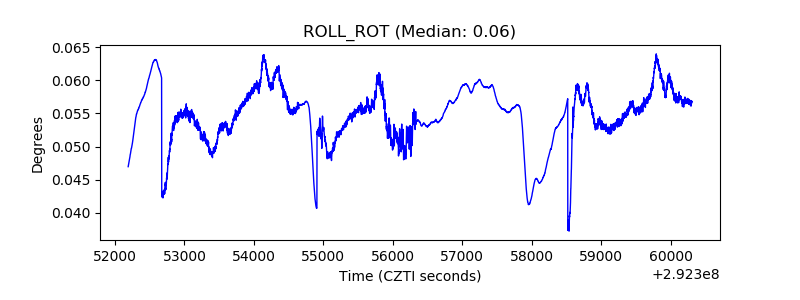

| _ROLL_ROT |  |
| _Roll_DEC |  |

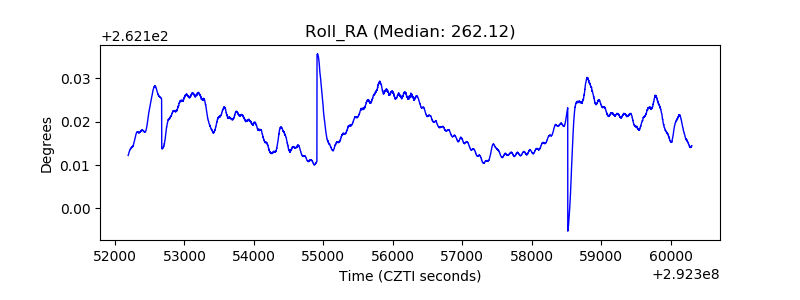

| _Roll_RA |  |
| Veto Counter |  |
