| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19060cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19060cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,475,520 | 95,650,560 |
| Size | 476.3 MB | 91.2 MB |
| Events in quadrant A | 3,175,273 | 620,771 |
| Events in quadrant B | 3,452,737 | 636,947 |
| Events in quadrant C | 3,251,291 | 616,631 |
| Events in quadrant D | 4,805,802 | 568,416 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13628 | 2 |
| B | 0 | 14491 | 2 |
| C | 0 | 13727 | 2 |
| D | 0 | 18633 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 34 | 0.522113% |
| B | 6512 | 69 | 1.059582% |
| C | 6512 | 70 | 1.074939% |
| D | 6511 | 376 | 5.774843% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

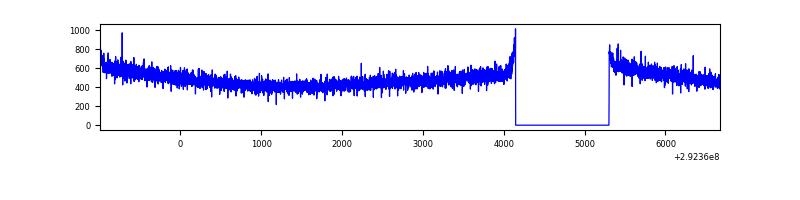

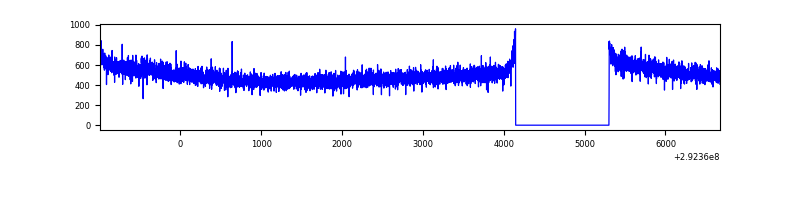

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7667 | 6513 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7667 | 6513 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7667 | 6513 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7666 | 6512 | 297 | 297 | 3.87% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8823 | 48.18 | 824 | 808 | 166.4 |
| A | 0 | 226 | 7201 | 38.43 | 824 | 808 | 166.4 |
| A | 3 | 137 | 6315 | 33.1 | 824 | 808 | 166.4 |
| B | 3 | 112 | 82628 | 521.37 | 828 | 806 | 156.9 |
| B | 7 | 220 | 33065 | 205.55 | 828 | 806 | 156.9 |
| B | 0 | 198 | 24393 | 150.3 | 828 | 806 | 156.9 |
| C | 14 | 238 | 125195 | 664.31 | 801 | 808 | 187.2 |
| C | 13 | 61 | 5640 | 25.81 | 801 | 808 | 187.2 |
| C | 3 | 233 | 5224 | 23.58 | 801 | 808 | 187.2 |
| D | 7 | 238 | 848069 | 4452.66 | 784 | 764 | 190.3 |
| D | 1 | 20 | 802585 | 4213.64 | 784 | 764 | 190.3 |
| D | 1 | 52 | 153186 | 800.99 | 784 | 764 | 190.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

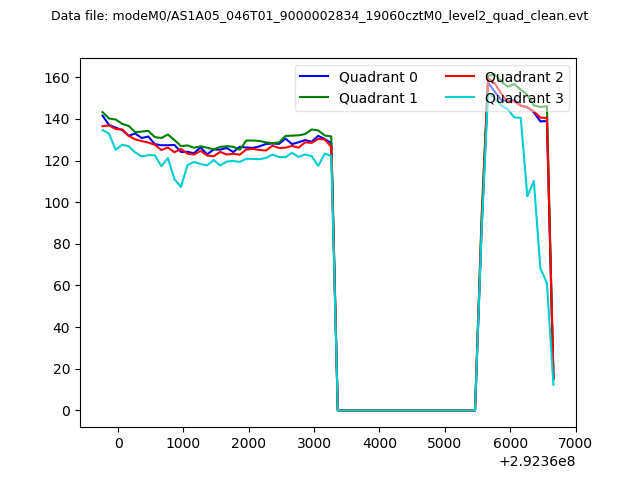

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

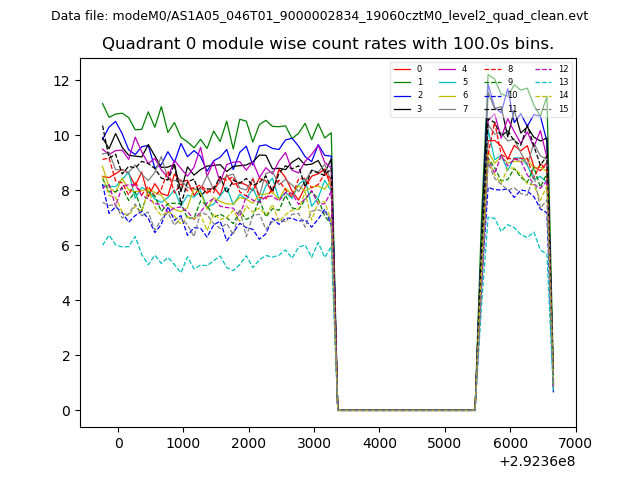

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

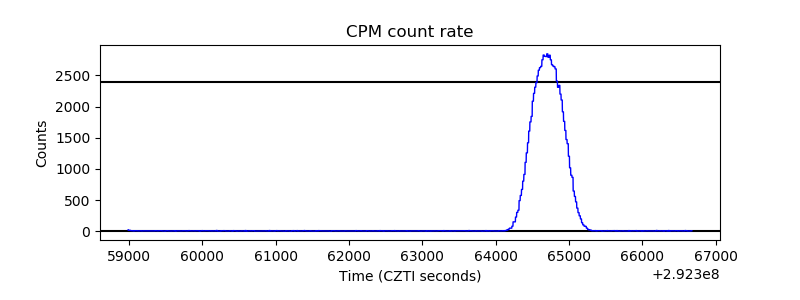

| _CPM_Rate |  |

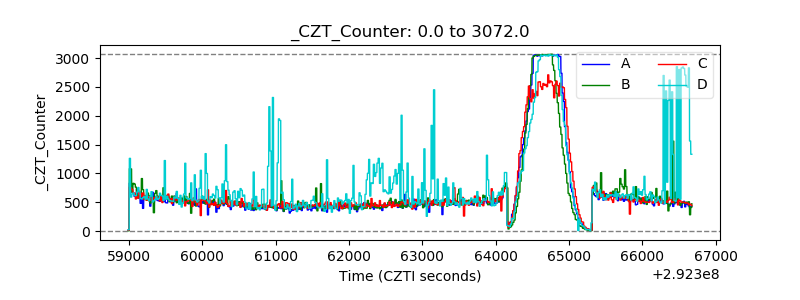

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

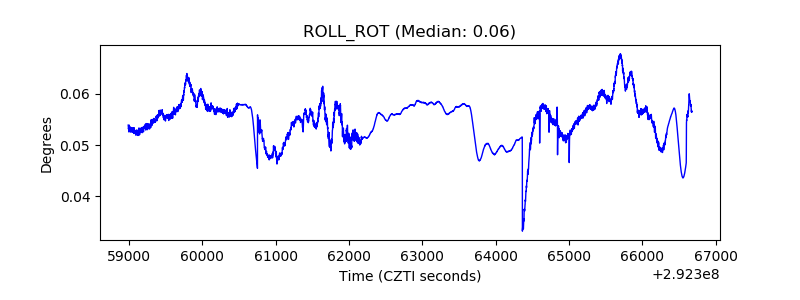

| _ROLL_ROT |  |
| _Roll_DEC |  |

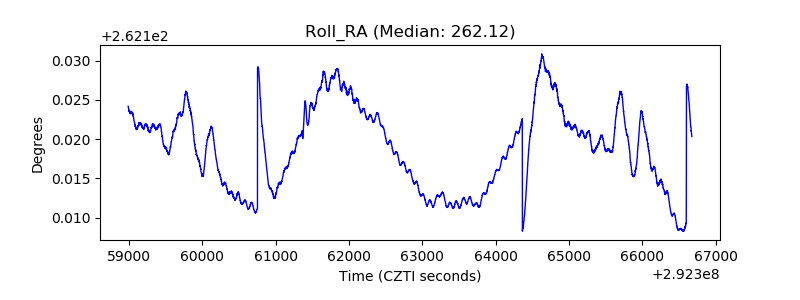

| _Roll_RA |  |
| Veto Counter |  |
