| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19072cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19072cztM0_level2_quad_clean.evt |
| Size (bytes) | 661,060,800 | 78,312,960 |
| Size | 630.4 MB | 74.7 MB |
| Events in quadrant A | 3,049,759 | 499,451 |
| Events in quadrant B | 3,913,716 | 507,765 |
| Events in quadrant C | 3,078,930 | 492,885 |
| Events in quadrant D | 9,546,792 | 426,676 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 175 | 45 |
| B | 0 | 173 | 45 |
| C | 0 | 174 | 46 |
| D | 0 | 169 | 41 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17705 | 4521 |
| B | 0 | 20321 | 4421 |
| C | 0 | 17653 | 4521 |
| D | 0 | 41318 | 8540 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 3 |
| B | 0 | 15 | 5 |
| C | 0 | 13 | 3 |
| D | 0 | 15 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6371 | 50 | 0.784806% |
| B | 6375 | 189 | 2.964706% |
| C | 6374 | 75 | 1.176655% |
| D | 6363 | 2234 | 35.109225% |

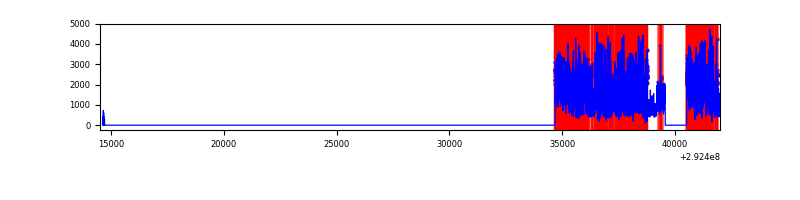

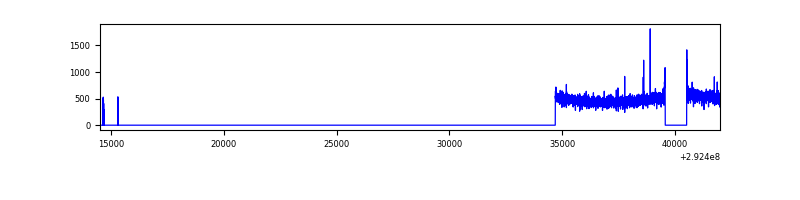

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 27485 | 6387 | 6 | 6 | 0.02% | 0.09% |  |
| B | 27357 | 6387 | 43 | 43 | 0.16% | 0.67% |  |
| C | 27477 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| D | 27352 | 6373 | 1680 | 1680 | 6.14% | 26.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 61408 | 386.71 | 775 | 757 | 156.8 |
| A | 13 | 254 | 9600 | 56.38 | 775 | 757 | 156.8 |
| A | 0 | 226 | 6702 | 37.91 | 775 | 757 | 156.8 |
| B | 6 | 36 | 483098 | 3281.0 | 773 | 754 | 147.0 |
| B | 3 | 112 | 203952 | 1382.19 | 773 | 754 | 147.0 |
| B | 0 | 189 | 82128 | 553.52 | 773 | 754 | 147.0 |
| C | 14 | 238 | 115047 | 648.11 | 750 | 756 | 176.3 |
| C | 3 | 233 | 28805 | 159.06 | 750 | 756 | 176.3 |
| C | 5 | 112 | 12057 | 64.08 | 750 | 756 | 176.3 |
| D | 7 | 238 | 5004437 | 31086.51 | 654 | 634 | 161.0 |
| D | 1 | 20 | 1050844 | 6524.51 | 654 | 634 | 161.0 |
| D | 11 | 176 | 473907 | 2940.24 | 654 | 634 | 161.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

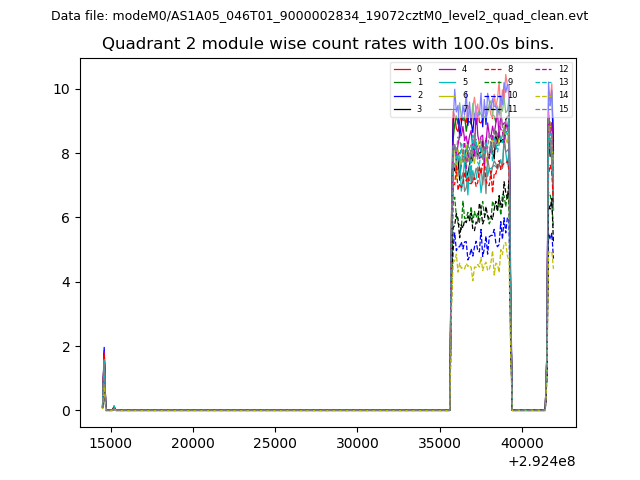

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

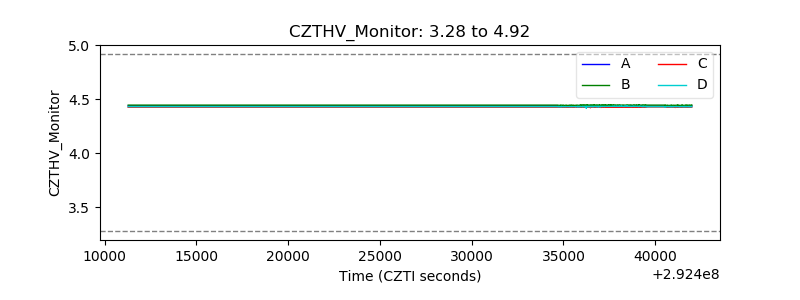

| CZT HV Monitor |  |

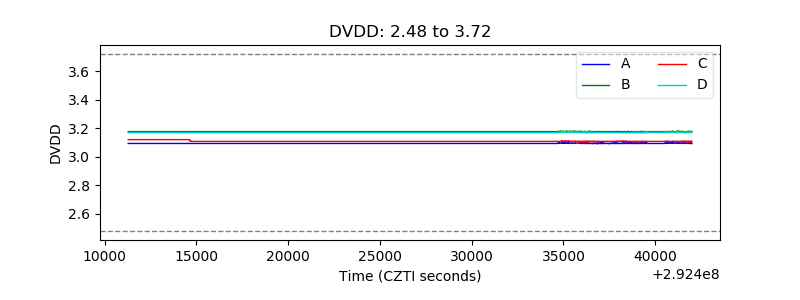

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

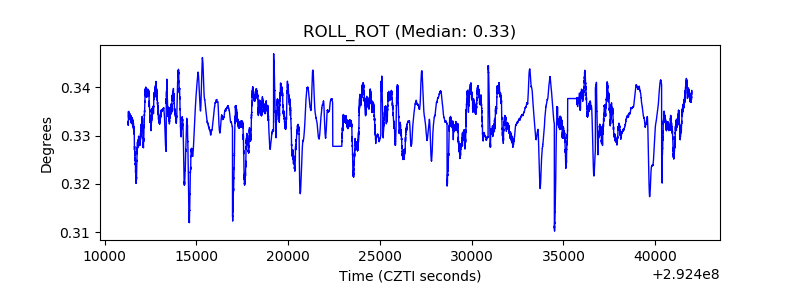

| _ROLL_ROT |  |

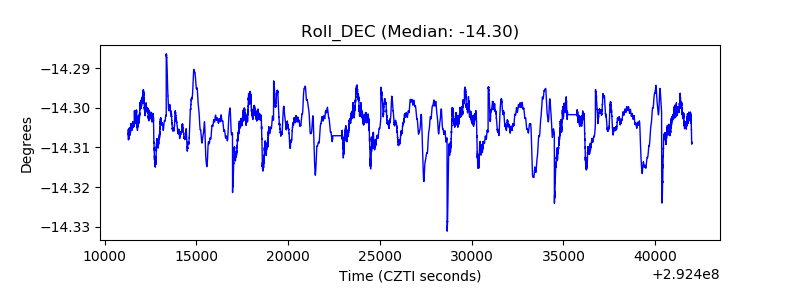

| _Roll_DEC |  |
| _Roll_RA |  |

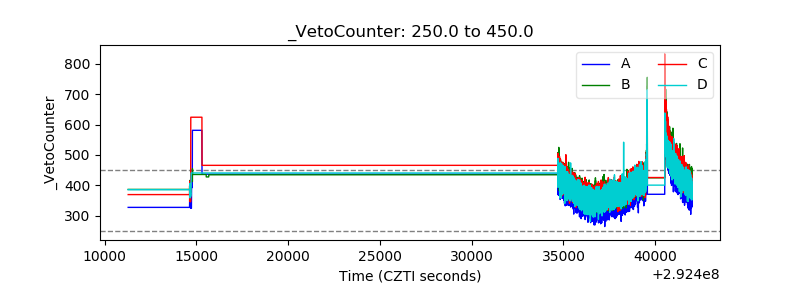

| Veto Counter |  |
