| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19074cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19074cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,558,545,280 | 418,636,800 |
| Size | 3.3 GB | 399.2 MB |
| Events in quadrant A | 16,199,163 | 2,695,469 |
| Events in quadrant B | 19,188,449 | 2,741,689 |
| Events in quadrant C | 16,976,256 | 2,655,925 |
| Events in quadrant D | 53,112,352 | 2,239,502 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 690 | 0 |
| B | 0 | 690 | 0 |
| C | 0 | 690 | 0 |
| D | 0 | 690 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70725 | 6 |
| B | 0 | 79053 | 6 |
| C | 0 | 72253 | 8 |
| D | 0 | 181599 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 34136 | 546 | 1.599484% |
| B | 34136 | 1056 | 3.093508% |
| C | 34135 | 762 | 2.232313% |
| D | 34136 | 12931 | 37.880830% |

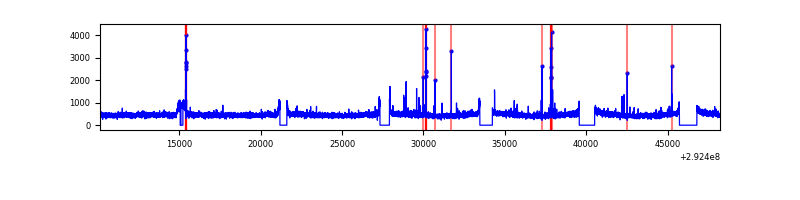

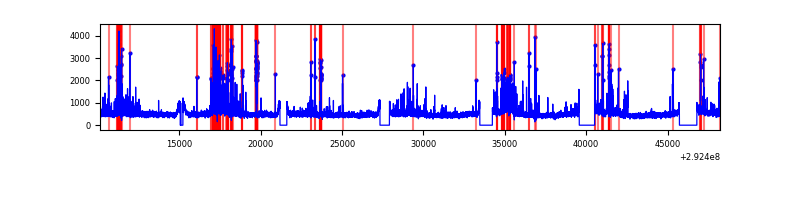

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38096 | 34143 | 22 | 22 | 0.06% | 0.06% |  |
| B | 38096 | 34143 | 257 | 257 | 0.67% | 0.75% |  |
| C | 38096 | 34143 | 105 | 105 | 0.28% | 0.31% |  |
| D | 38095 | 34141 | 9732 | 9732 | 25.55% | 28.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 203051 | 238.02 | 4152 | 4058 | 836.0 |
| A | 13 | 254 | 46636 | 50.93 | 4152 | 4058 | 836.0 |
| A | 0 | 226 | 35597 | 37.73 | 4152 | 4058 | 836.0 |
| B | 6 | 36 | 908747 | 1143.79 | 4137 | 4031 | 791.0 |
| B | 7 | 220 | 523441 | 656.67 | 4137 | 4031 | 791.0 |
| B | 0 | 189 | 454112 | 569.02 | 4137 | 4031 | 791.0 |
| C | 3 | 233 | 708746 | 747.43 | 4012 | 4038 | 942.8 |
| C | 14 | 238 | 616947 | 650.06 | 4012 | 4038 | 942.8 |
| C | 13 | 61 | 28305 | 25.74 | 4012 | 4038 | 942.8 |
| D | 7 | 238 | 29775785 | 35034.16 | 3498 | 3404 | 849.8 |
| D | 1 | 20 | 6131157 | 7210.73 | 3498 | 3404 | 849.8 |
| D | 11 | 176 | 1354863 | 1590.31 | 3498 | 3404 | 849.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

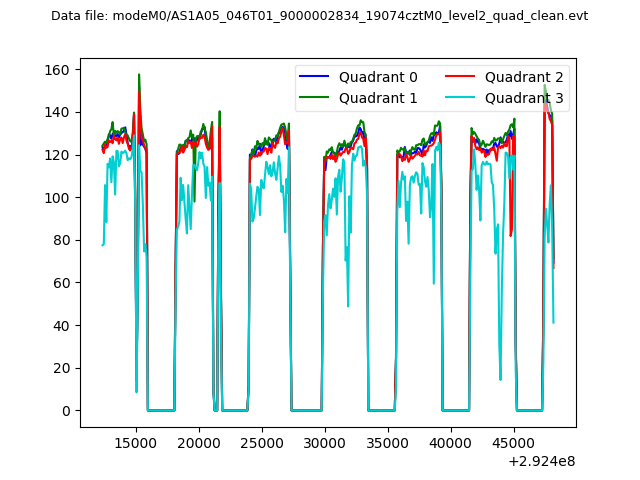

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

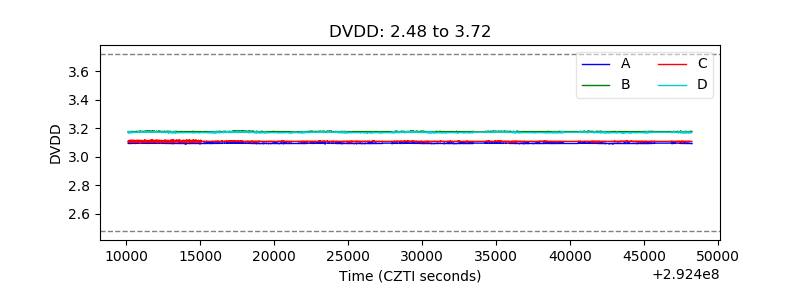

| D_VDD |  |

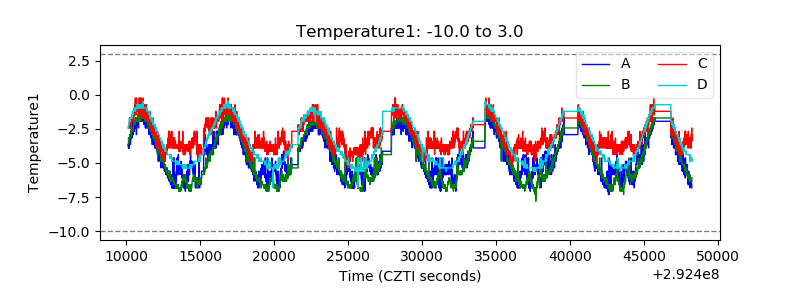

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

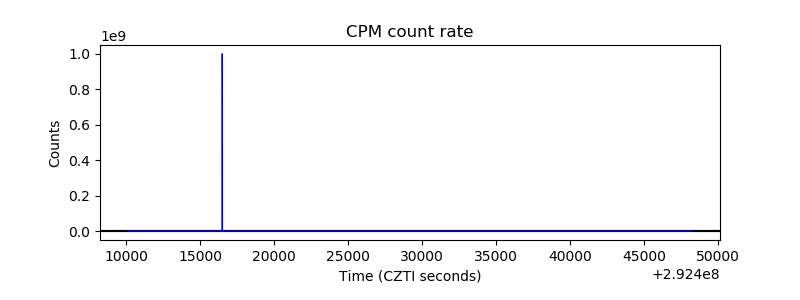

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
