| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19077cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19077cztM0_level2_quad_clean.evt |
| Size (bytes) | 595,324,800 | 99,783,360 |
| Size | 567.7 MB | 95.2 MB |
| Events in quadrant A | 3,101,033 | 694,098 |
| Events in quadrant B | 3,381,870 | 723,339 |
| Events in quadrant C | 3,207,775 | 695,136 |
| Events in quadrant D | 7,921,491 | 478,650 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13005 | 2 |
| B | 0 | 13906 | 2 |
| C | 0 | 13231 | 2 |
| D | 0 | 27552 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6153 | 22 | 0.357549% |
| B | 6153 | 89 | 1.446449% |
| C | 6153 | 71 | 1.153909% |
| D | 6152 | 1990 | 32.347204% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7493 | 6154 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7493 | 6154 | 19 | 19 | 0.25% | 0.31% |  |
| C | 7493 | 6154 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7492 | 6153 | 1826 | 1826 | 24.37% | 29.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 12594 | 73.39 | 802 | 786 | 160.9 |
| A | 13 | 254 | 8135 | 45.68 | 802 | 786 | 160.9 |
| A | 0 | 226 | 7151 | 39.56 | 802 | 786 | 160.9 |
| B | 7 | 220 | 125362 | 820.18 | 811 | 793 | 151.9 |
| B | 0 | 189 | 60969 | 396.21 | 811 | 793 | 151.9 |
| B | 3 | 112 | 19501 | 123.18 | 811 | 793 | 151.9 |
| C | 14 | 238 | 124264 | 672.47 | 789 | 795 | 183.6 |
| C | 3 | 233 | 7069 | 34.17 | 789 | 795 | 183.6 |
| C | 13 | 61 | 5573 | 26.02 | 789 | 795 | 183.6 |
| D | 7 | 238 | 5344392 | 34149.29 | 644 | 626 | 156.5 |
| D | 1 | 52 | 91490 | 580.67 | 644 | 626 | 156.5 |
| D | 7 | 96 | 23618 | 146.93 | 644 | 626 | 156.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

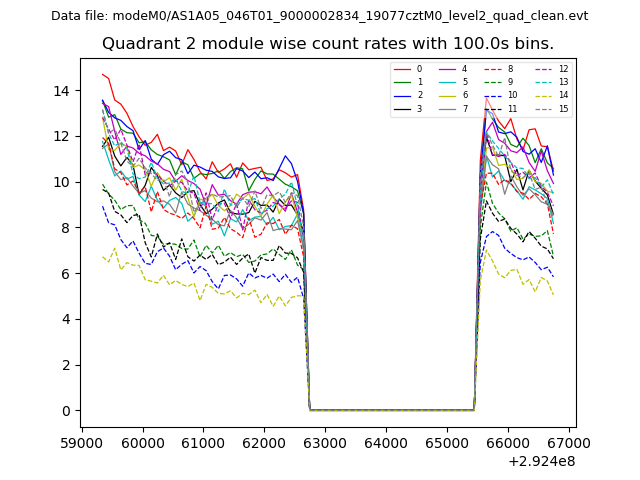

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

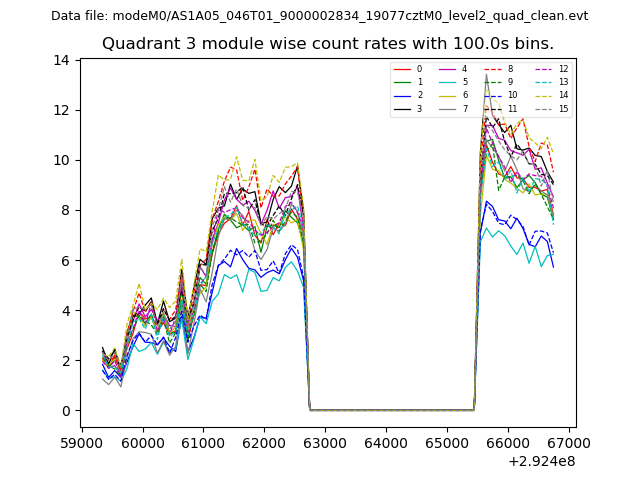

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

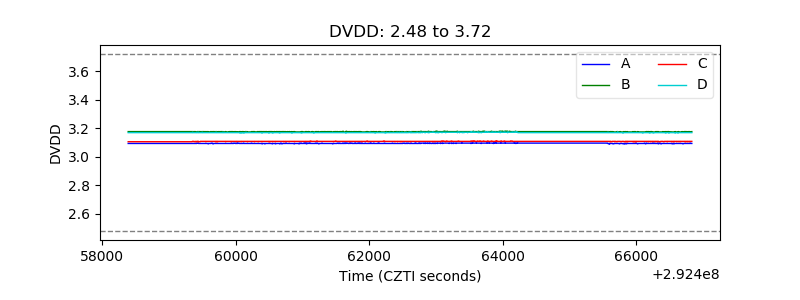

| D_VDD |  |

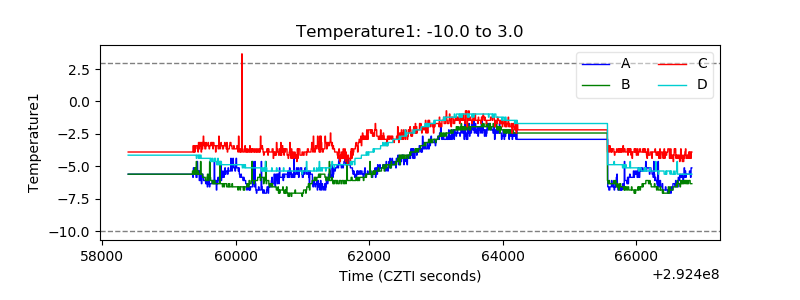

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

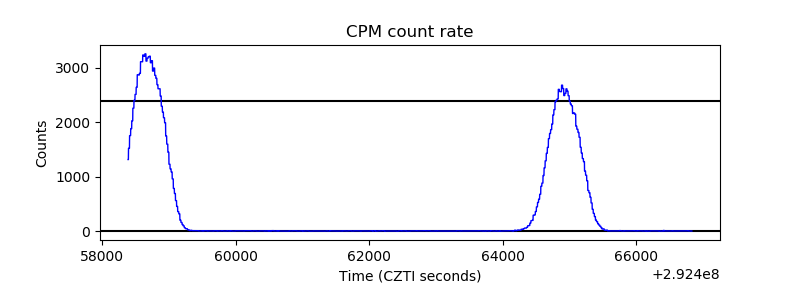

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

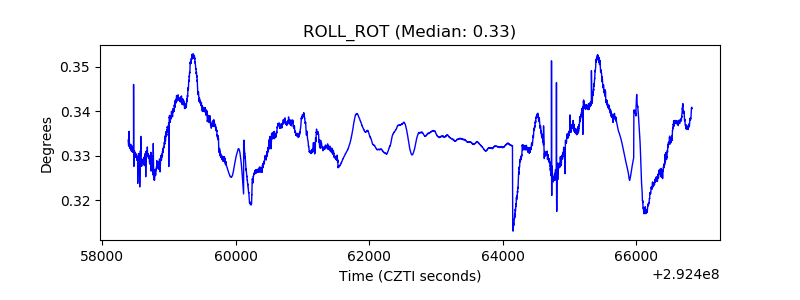

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

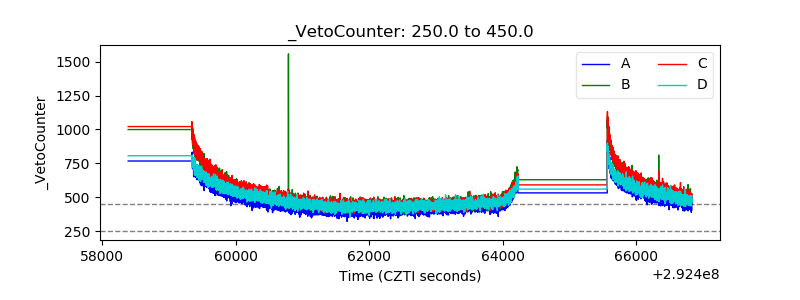

| Veto Counter |  |
