| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002834_19081cztM0_level2.evt | modeM0/AS1A05_046T01_9000002834_19081cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,939,200 | 47,658,240 |
| Size | 270.8 MB | 45.5 MB |
| Events in quadrant A | 1,951,900 | 291,140 |
| Events in quadrant B | 2,082,872 | 296,905 |
| Events in quadrant C | 2,216,041 | 283,545 |
| Events in quadrant D | 2,061,463 | 275,788 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 38 |
| B | 0 | 123 | 41 |
| C | 0 | 124 | 40 |
| D | 0 | 123 | 41 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12667 | 4072 |
| B | 0 | 13454 | 4625 |
| C | 0 | 13626 | 4375 |
| D | 0 | 13351 | 4474 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 3 |
| B | 0 | 3 | 3 |
| C | 0 | 3 | 3 |
| D | 0 | 3 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4228 | 17 | 0.402081% |
| B | 4178 | 29 | 0.694112% |
| C | 4175 | 40 | 0.958084% |
| D | 4172 | 14 | 0.335570% |

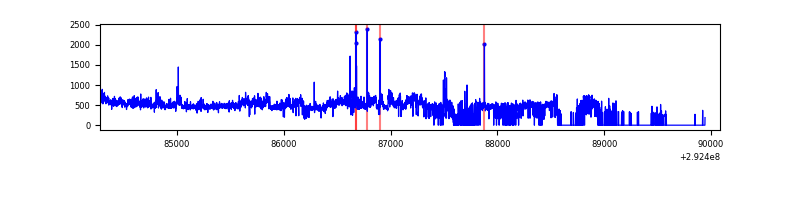

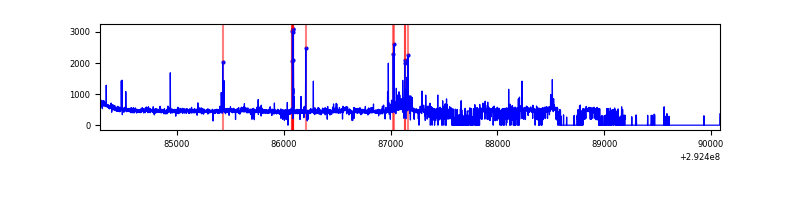

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5682 | 4550 | 2 | 2 | 0.04% | 0.04% |  |
| B | 5807 | 4498 | 13 | 13 | 0.22% | 0.29% |  |
| C | 5668 | 4490 | 5 | 5 | 0.09% | 0.11% |  |
| D | 5705 | 4503 | 7 | 7 | 0.12% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 20194 | 190.14 | 500 | 488 | 103.6 |
| A | 13 | 254 | 5036 | 43.88 | 500 | 488 | 103.6 |
| A | 9 | 143 | 4611 | 39.78 | 500 | 488 | 103.6 |
| B | 3 | 112 | 53212 | 550.1 | 491 | 480 | 95.9 |
| B | 7 | 220 | 49794 | 514.44 | 491 | 480 | 95.9 |
| B | 6 | 36 | 18892 | 192.07 | 491 | 480 | 95.9 |
| C | 3 | 233 | 239214 | 2106.61 | 477 | 480 | 113.3 |
| C | 14 | 238 | 73448 | 643.88 | 477 | 480 | 113.3 |
| C | 0 | 207 | 44659 | 389.84 | 477 | 480 | 113.3 |
| D | 7 | 238 | 101040 | 853.95 | 481 | 467 | 117.8 |
| D | 1 | 52 | 71301 | 601.44 | 481 | 467 | 117.8 |
| D | 11 | 176 | 53236 | 448.05 | 481 | 467 | 117.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

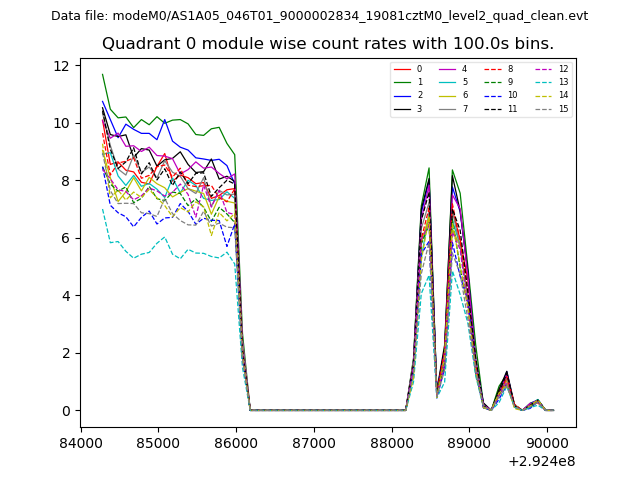

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

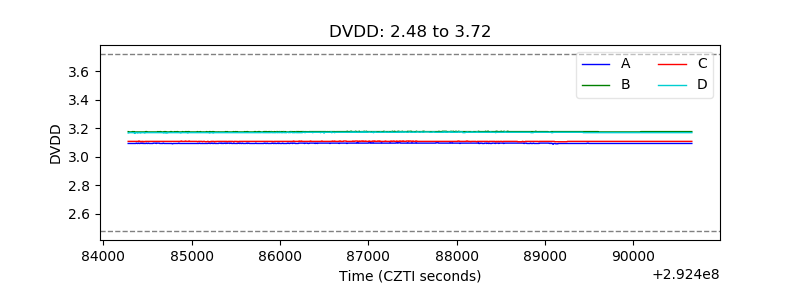

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

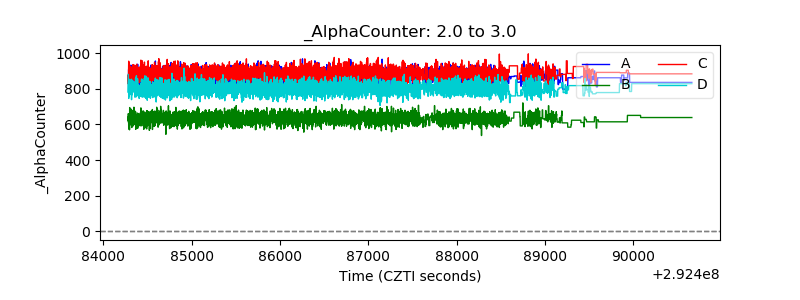

| Alpha Counter |  |
| _CPM_Rate |  |

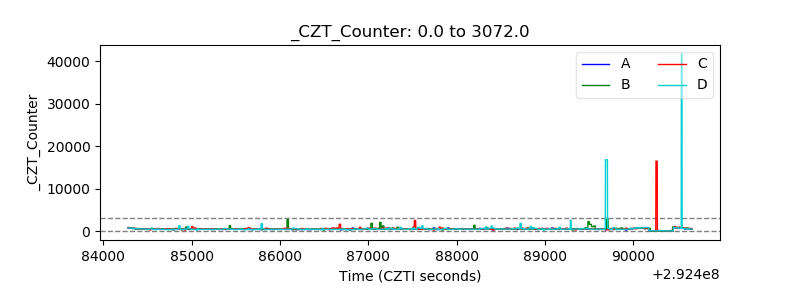

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

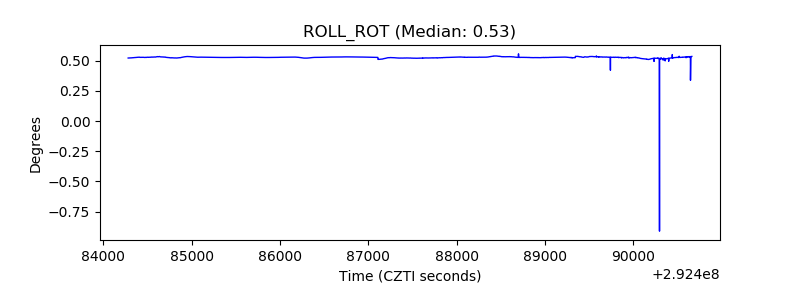

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
