| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_098T01_9000002836_19094cztM0_level2.evt | modeM0/AS1T03_098T01_9000002836_19094cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,857,280 | 103,429,440 |
| Size | 478.6 MB | 98.6 MB |
| Events in quadrant A | 3,204,867 | 667,526 |
| Events in quadrant B | 3,653,977 | 684,197 |
| Events in quadrant C | 3,353,023 | 662,163 |
| Events in quadrant D | 4,516,120 | 635,484 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14230 | 2 |
| B | 0 | 15575 | 2 |
| C | 0 | 14514 | 2 |
| D | 0 | 18363 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6937 | 9 | 0.129739% |
| B | 6937 | 78 | 1.124405% |
| C | 6937 | 62 | 0.893758% |
| D | 6937 | 231 | 3.329970% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7942 | 6938 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7942 | 6938 | 11 | 11 | 0.14% | 0.16% |  |
| C | 7942 | 6938 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7942 | 6938 | 167 | 167 | 2.10% | 2.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7345 | 39.01 | 832 | 815 | 167.4 |
| A | 13 | 254 | 7083 | 37.45 | 832 | 815 | 167.4 |
| A | 3 | 137 | 6243 | 32.43 | 832 | 815 | 167.4 |
| B | 6 | 36 | 171042 | 1074.11 | 835 | 815 | 158.5 |
| B | 3 | 112 | 120052 | 752.37 | 835 | 815 | 158.5 |
| B | 4 | 216 | 42204 | 261.16 | 835 | 815 | 158.5 |
| C | 14 | 238 | 125951 | 663.41 | 804 | 809 | 188.6 |
| C | 0 | 207 | 57304 | 299.49 | 804 | 809 | 188.6 |
| C | 3 | 233 | 21887 | 111.74 | 804 | 809 | 188.6 |
| D | 1 | 52 | 1072547 | 5578.08 | 794 | 772 | 192.1 |
| D | 7 | 238 | 294909 | 1530.84 | 794 | 772 | 192.1 |
| D | 7 | 96 | 70424 | 362.51 | 794 | 772 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

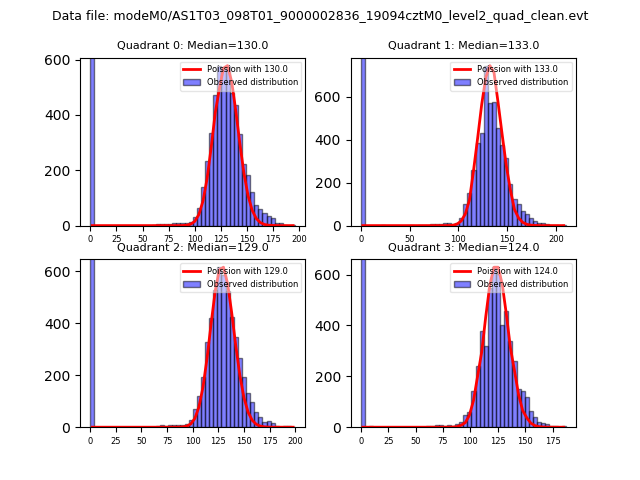

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

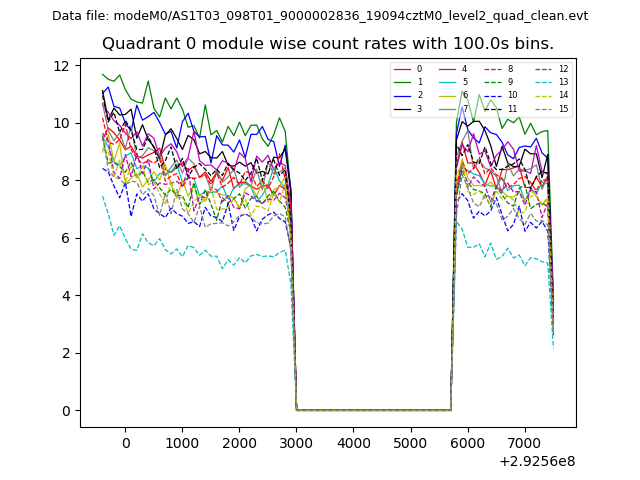

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

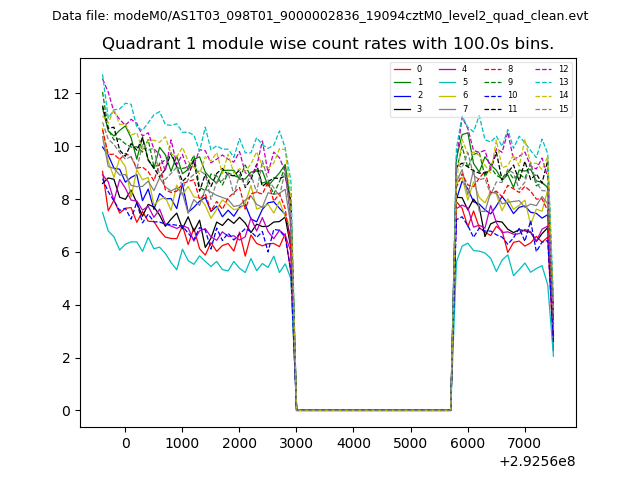

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

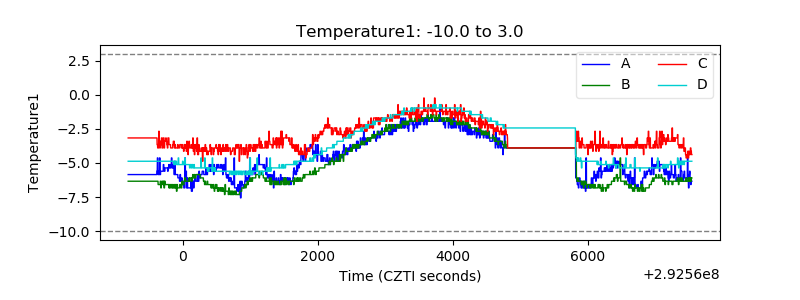

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

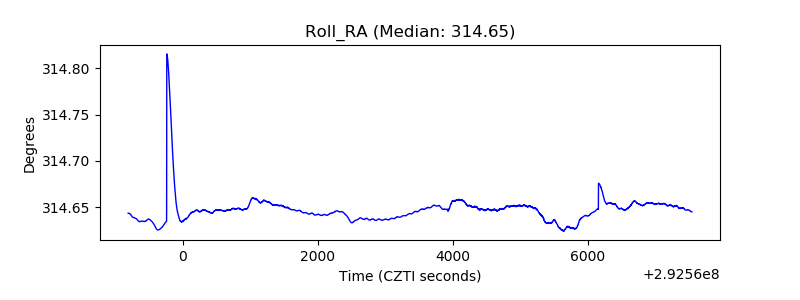

| _Roll_RA |  |
| Veto Counter |  |
