| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_098T01_9000002836_19097cztM0_level2.evt | modeM0/AS1T03_098T01_9000002836_19097cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,885,440 | 91,912,320 |
| Size | 505.3 MB | 87.7 MB |
| Events in quadrant A | 3,128,866 | 584,020 |
| Events in quadrant B | 3,525,972 | 597,490 |
| Events in quadrant C | 3,192,754 | 579,156 |
| Events in quadrant D | 5,736,031 | 546,400 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13950 | 1 |
| B | 0 | 14907 | 1 |
| C | 0 | 14027 | 1 |
| D | 0 | 21711 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6827 | 131 | 1.918852% |
| B | 6828 | 208 | 3.046280% |
| C | 6828 | 137 | 2.006444% |
| D | 6827 | 746 | 10.927201% |

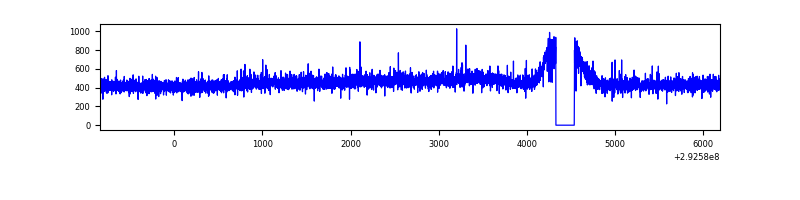

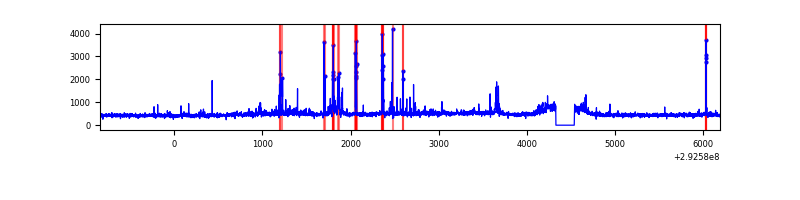

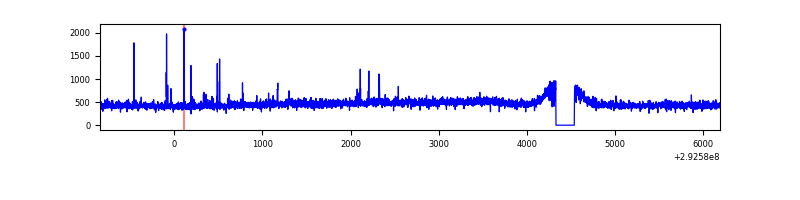

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7037 | 6828 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7038 | 6829 | 32 | 32 | 0.45% | 0.47% |  |
| C | 7038 | 6829 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7037 | 6828 | 535 | 535 | 7.60% | 7.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7306 | 39.09 | 811 | 791 | 166.7 |
| A | 0 | 226 | 7014 | 37.34 | 811 | 791 | 166.7 |
| A | 3 | 137 | 6408 | 33.7 | 811 | 791 | 166.7 |
| B | 3 | 112 | 157398 | 1004.63 | 806 | 785 | 155.9 |
| B | 4 | 216 | 73222 | 464.66 | 806 | 785 | 155.9 |
| B | 0 | 189 | 40167 | 252.62 | 806 | 785 | 155.9 |
| C | 14 | 238 | 119920 | 654.71 | 774 | 779 | 182.0 |
| C | 9 | 54 | 30980 | 165.96 | 774 | 779 | 182.0 |
| C | 0 | 207 | 13112 | 67.77 | 774 | 779 | 182.0 |
| D | 1 | 52 | 1415235 | 7615.42 | 753 | 730 | 185.7 |
| D | 7 | 238 | 982844 | 5287.51 | 753 | 730 | 185.7 |
| D | 11 | 176 | 351557 | 1888.78 | 753 | 730 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

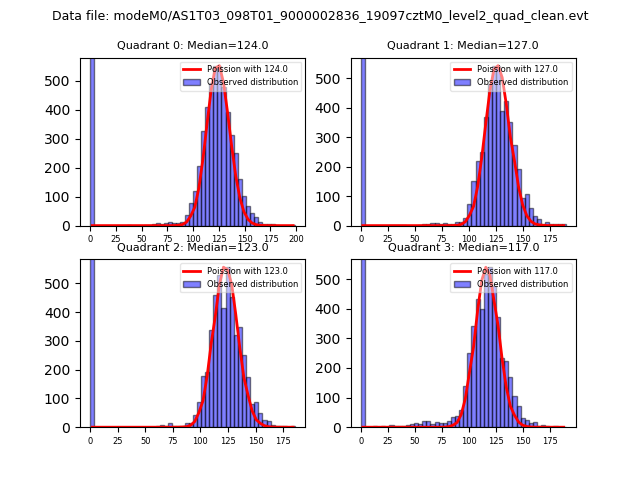

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

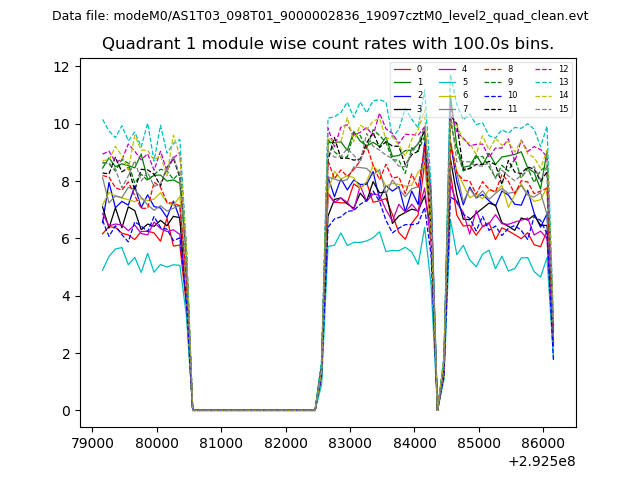

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

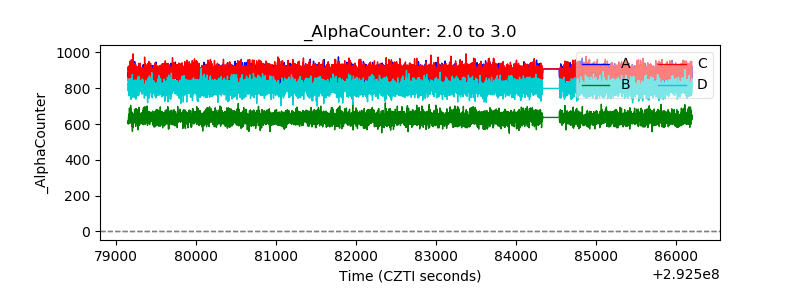

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

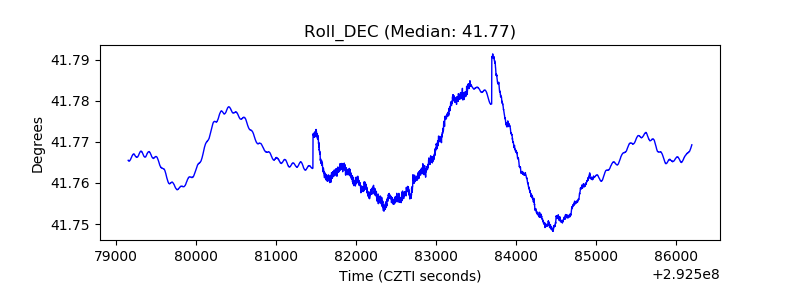

| _Roll_DEC |  |
| _Roll_RA |  |

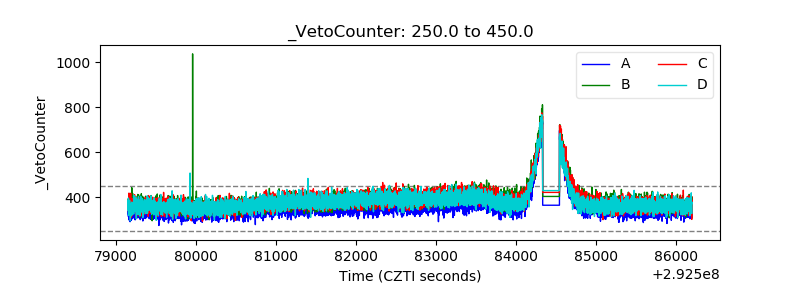

| Veto Counter |  |
