| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_098T01_9000002836_19108cztM0_level2.evt | modeM0/AS1T03_098T01_9000002836_19108cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,332,800 | 109,719,360 |
| Size | 457.1 MB | 104.6 MB |
| Events in quadrant A | 3,180,141 | 715,142 |
| Events in quadrant B | 3,312,985 | 736,303 |
| Events in quadrant C | 3,420,953 | 718,411 |
| Events in quadrant D | 4,145,452 | 684,092 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13936 | 2 |
| B | 0 | 14236 | 2 |
| C | 0 | 14578 | 2 |
| D | 0 | 16918 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6732 | 22 | 0.326797% |
| B | 6732 | 32 | 0.475342% |
| C | 6732 | 51 | 0.757576% |
| D | 6732 | 129 | 1.916221% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

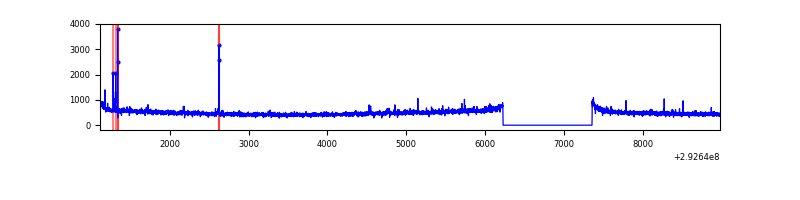

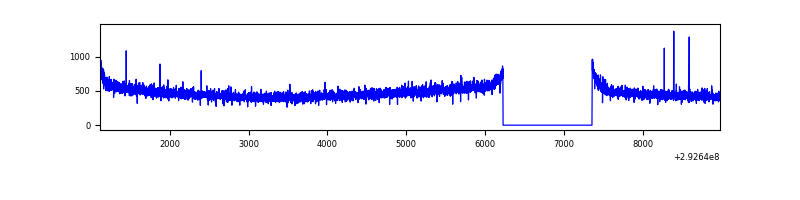

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7862 | 6733 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7862 | 6733 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7862 | 6733 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7862 | 6733 | 86 | 86 | 1.09% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 14530 | 83.3 | 820 | 804 | 164.8 |
| A | 15 | 174 | 7148 | 38.5 | 820 | 804 | 164.8 |
| A | 0 | 226 | 7013 | 37.68 | 820 | 804 | 164.8 |
| B | 7 | 220 | 18537 | 113.45 | 829 | 810 | 156.3 |
| B | 12 | 111 | 18155 | 111.01 | 829 | 810 | 156.3 |
| B | 11 | 111 | 15750 | 95.61 | 829 | 810 | 156.3 |
| C | 3 | 233 | 175249 | 938.69 | 798 | 805 | 185.8 |
| C | 14 | 238 | 124837 | 667.42 | 798 | 805 | 185.8 |
| C | 0 | 207 | 10544 | 52.41 | 798 | 805 | 185.8 |
| D | 11 | 176 | 299932 | 1537.17 | 792 | 768 | 194.6 |
| D | 12 | 218 | 287632 | 1473.97 | 792 | 768 | 194.6 |
| D | 7 | 238 | 267232 | 1369.15 | 792 | 768 | 194.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

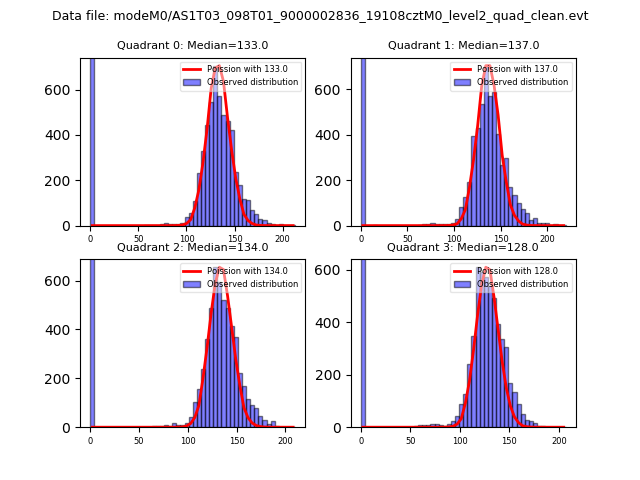

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

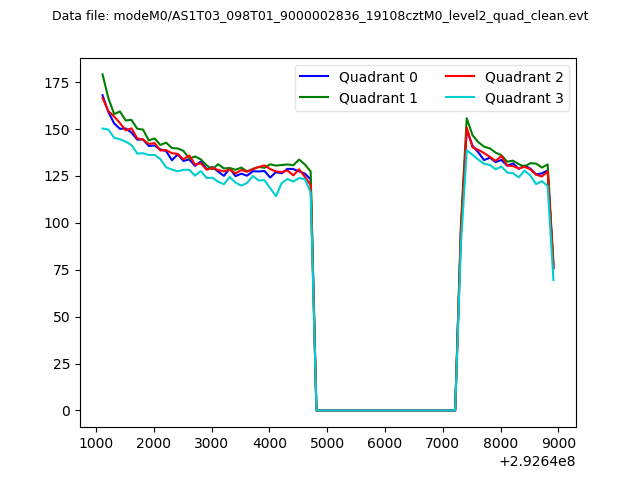

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

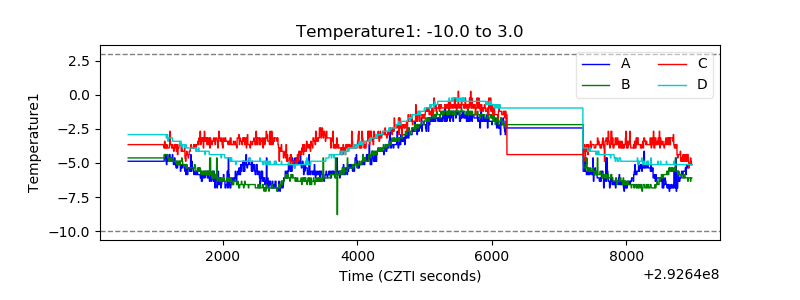

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

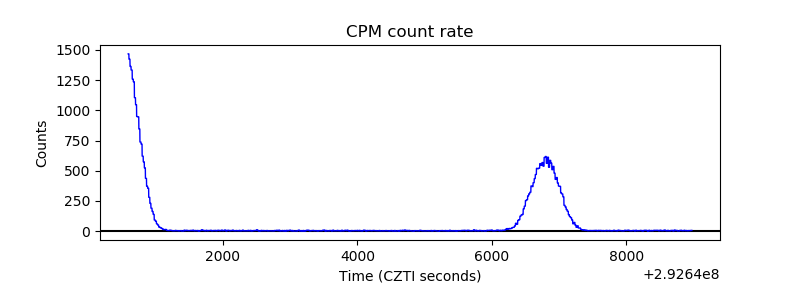

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

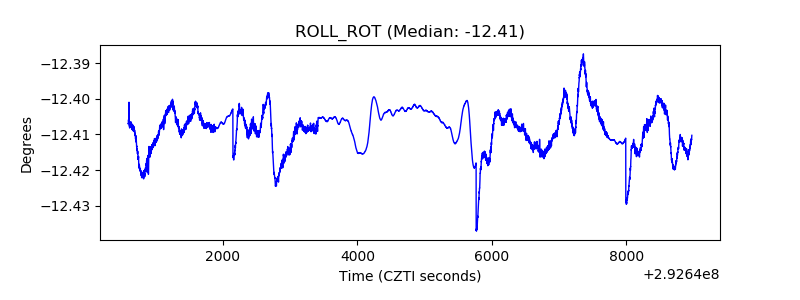

| _ROLL_ROT |  |

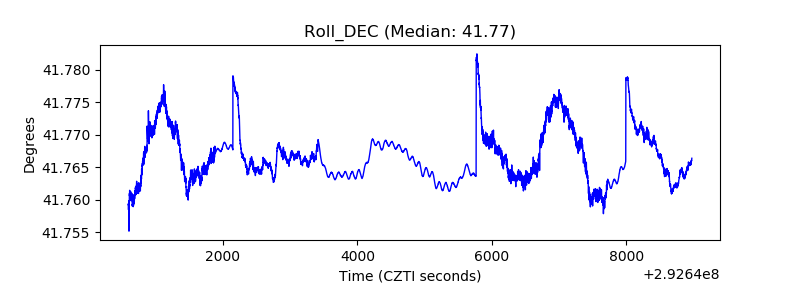

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
