| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_098T01_9000002836_19109cztM0_level2.evt | modeM0/AS1T03_098T01_9000002836_19109cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,261,120 | 78,076,800 |
| Size | 418.0 MB | 74.5 MB |
| Events in quadrant A | 2,770,493 | 489,981 |
| Events in quadrant B | 3,171,658 | 501,895 |
| Events in quadrant C | 2,853,591 | 487,429 |
| Events in quadrant D | 4,067,833 | 464,545 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12358 | 1 |
| B | 0 | 13536 | 1 |
| C | 0 | 12496 | 1 |
| D | 0 | 16287 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6012 | 41 | 0.681969% |
| B | 6012 | 151 | 2.511643% |
| C | 6012 | 75 | 1.247505% |
| D | 6013 | 325 | 5.404956% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

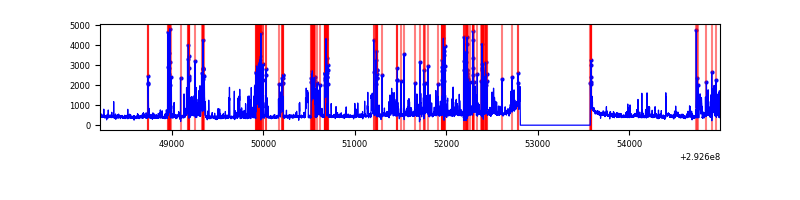

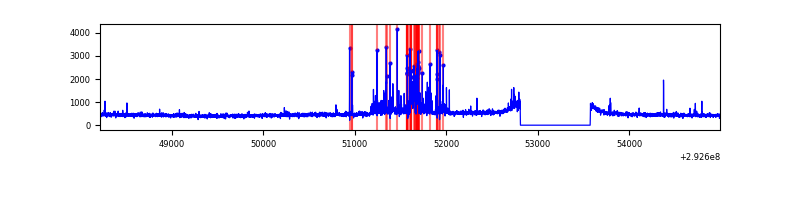

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6777 | 6013 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6777 | 6013 | 45 | 45 | 0.66% | 0.75% |  |
| C | 6777 | 6013 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6778 | 6014 | 215 | 215 | 3.17% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 6648 | 40.91 | 718 | 703 | 145.3 |
| A | 0 | 226 | 6228 | 38.02 | 718 | 703 | 145.3 |
| A | 3 | 137 | 5486 | 32.91 | 718 | 703 | 145.3 |
| B | 7 | 220 | 226712 | 1640.12 | 716 | 699 | 137.8 |
| B | 6 | 36 | 79338 | 570.66 | 716 | 699 | 137.8 |
| B | 10 | 245 | 22610 | 159.0 | 716 | 699 | 137.8 |
| C | 14 | 238 | 106877 | 652.95 | 690 | 695 | 162.6 |
| C | 3 | 233 | 39524 | 238.77 | 690 | 695 | 162.6 |
| C | 0 | 207 | 11889 | 68.83 | 690 | 695 | 162.6 |
| D | 1 | 52 | 1064146 | 6343.53 | 680 | 662 | 167.6 |
| D | 12 | 218 | 282229 | 1679.51 | 680 | 662 | 167.6 |
| D | 11 | 176 | 109784 | 650.9 | 680 | 662 | 167.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

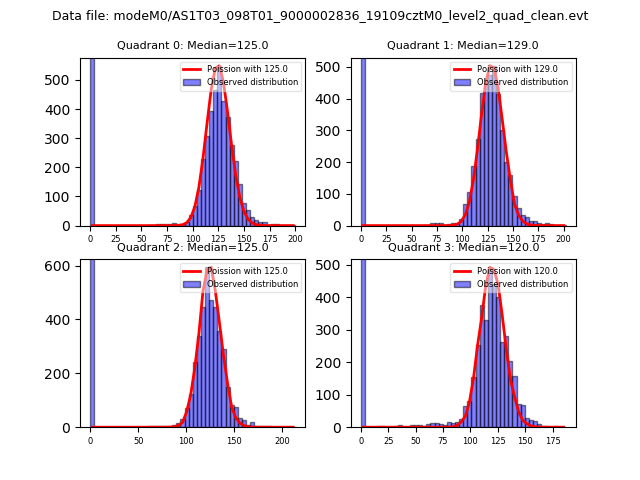

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

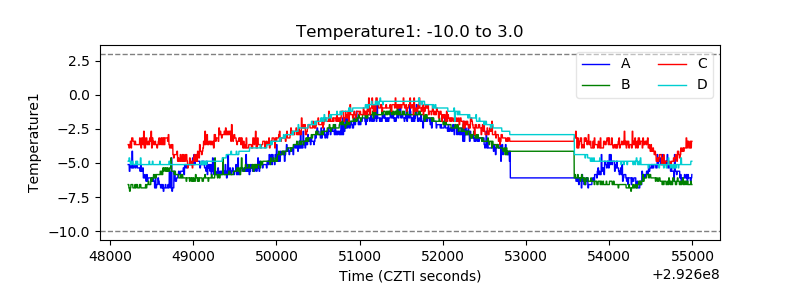

| Temperature 1 |  |

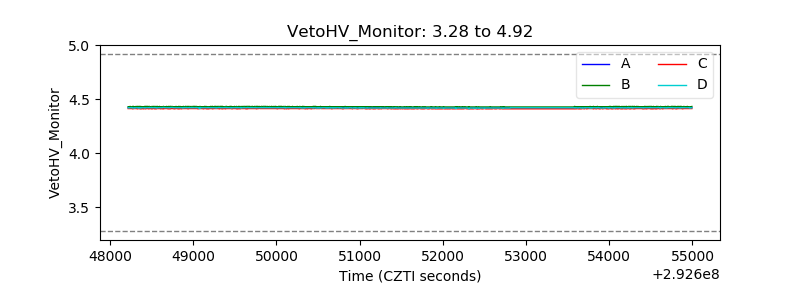

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

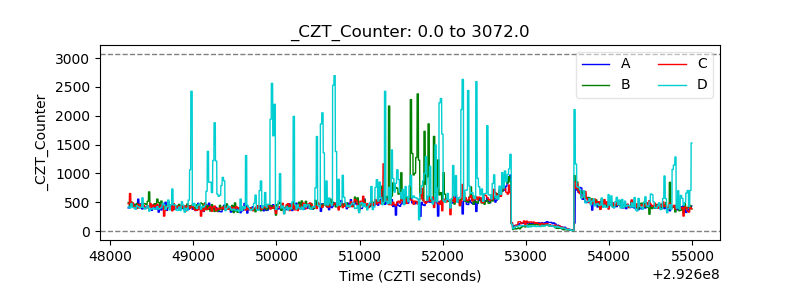

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

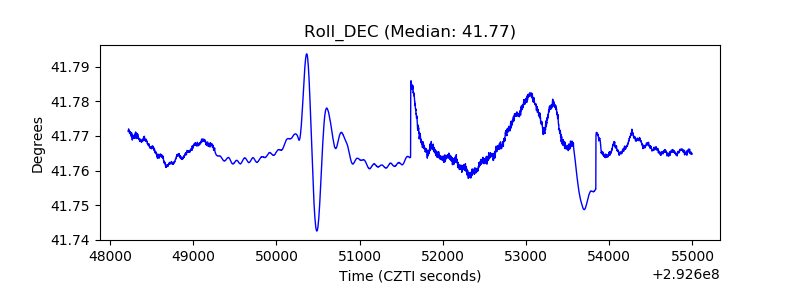

| _Roll_DEC |  |

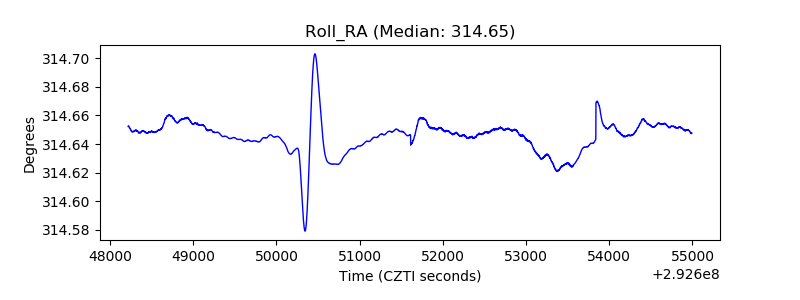

| _Roll_RA |  |
| Veto Counter |  |
