| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19118cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19118cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,732,480 | 85,573,440 |
| Size | 544.3 MB | 81.6 MB |
| Events in quadrant A | 3,133,202 | 547,662 |
| Events in quadrant B | 3,328,762 | 559,313 |
| Events in quadrant C | 3,170,004 | 543,747 |
| Events in quadrant D | 7,228,352 | 502,927 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13305 | 1 |
| B | 0 | 13996 | 1 |
| C | 0 | 13263 | 1 |
| D | 0 | 25910 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 42 | 0.670177% |
| B | 6268 | 89 | 1.419911% |
| C | 6268 | 66 | 1.052967% |
| D | 6268 | 638 | 10.178685% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7407 | 6268 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7408 | 6269 | 15 | 15 | 0.20% | 0.24% |  |
| C | 7408 | 6269 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7408 | 6269 | 509 | 509 | 6.87% | 8.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 36421 | 222.36 | 799 | 782 | 160.3 |
| A | 11 | 29 | 10569 | 61.06 | 799 | 782 | 160.3 |
| A | 4 | 2 | 8899 | 50.64 | 799 | 782 | 160.3 |
| B | 7 | 220 | 114233 | 741.47 | 803 | 782 | 153.0 |
| B | 0 | 197 | 29962 | 190.71 | 803 | 782 | 153.0 |
| B | 12 | 111 | 17525 | 109.43 | 803 | 782 | 153.0 |
| C | 14 | 238 | 120145 | 661.79 | 775 | 782 | 180.4 |
| C | 3 | 233 | 19318 | 102.77 | 775 | 782 | 180.4 |
| C | 0 | 207 | 9604 | 48.91 | 775 | 782 | 180.4 |
| D | 7 | 238 | 3542951 | 19224.99 | 754 | 734 | 184.3 |
| D | 12 | 218 | 517103 | 2802.54 | 754 | 734 | 184.3 |
| D | 11 | 176 | 109924 | 592.62 | 754 | 734 | 184.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

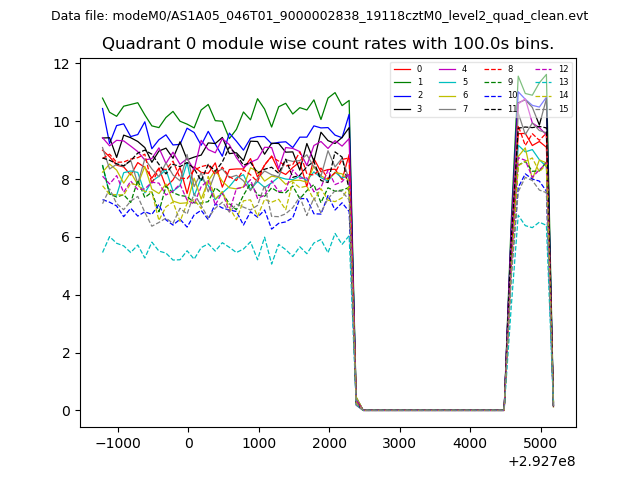

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

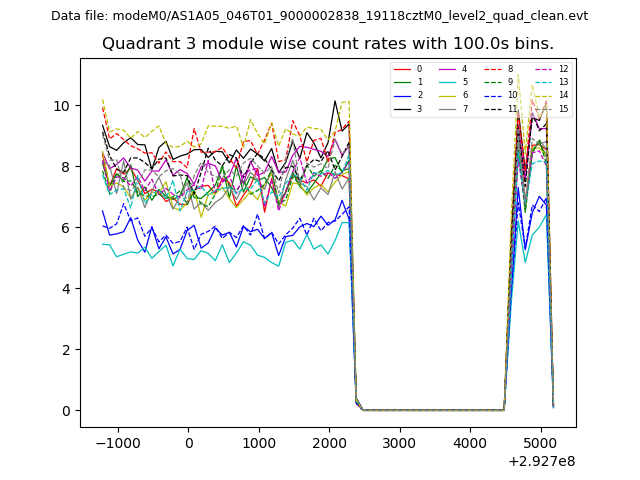

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

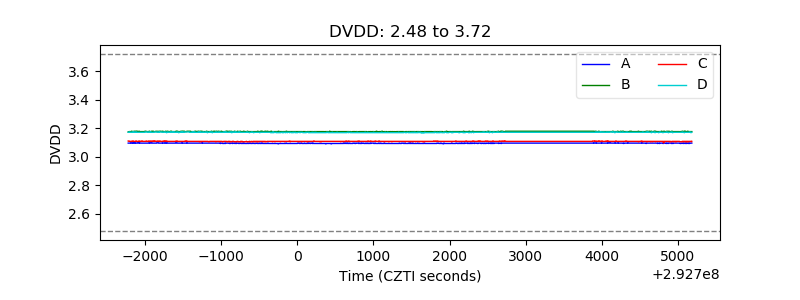

| D_VDD |  |

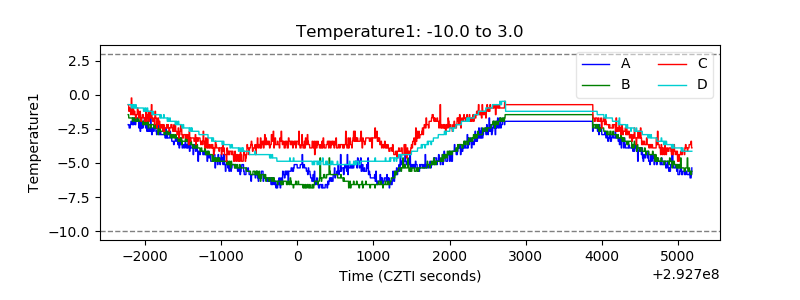

| Temperature 1 |  |
| Veto HV Monitor |  |

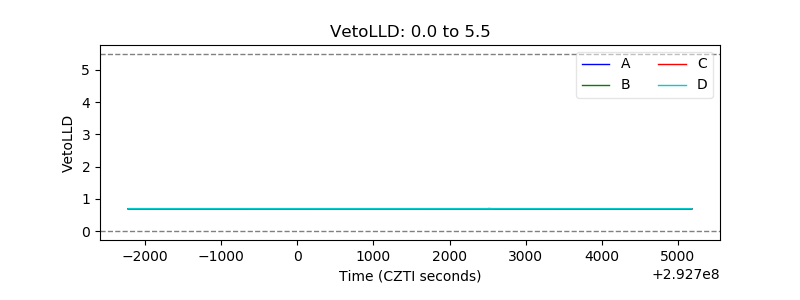

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

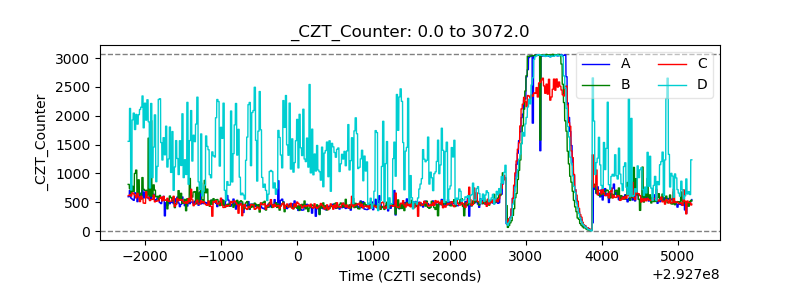

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

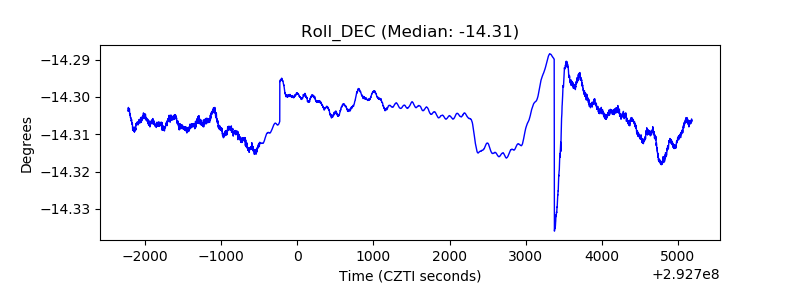

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
