| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19122cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19122cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,908,480 | 103,671,360 |
| Size | 522.5 MB | 98.9 MB |
| Events in quadrant A | 3,313,764 | 672,247 |
| Events in quadrant B | 3,517,189 | 700,282 |
| Events in quadrant C | 3,611,316 | 668,675 |
| Events in quadrant D | 5,694,519 | 629,231 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14171 | 2 |
| B | 0 | 14748 | 2 |
| C | 0 | 14799 | 2 |
| D | 0 | 21519 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6734 | 47 | 0.697951% |
| B | 6734 | 92 | 1.366201% |
| C | 6734 | 194 | 2.880903% |
| D | 6734 | 705 | 10.469260% |

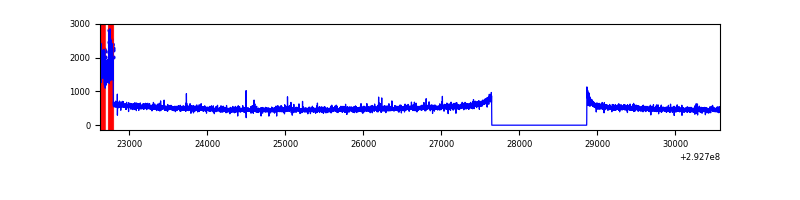

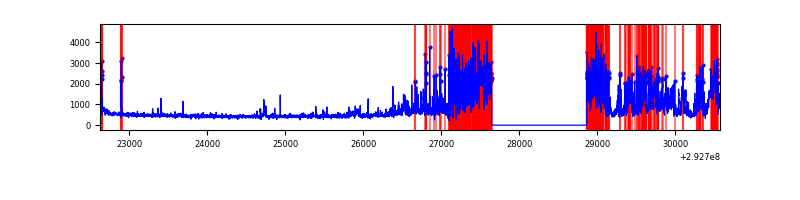

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7954 | 6735 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7954 | 6735 | 16 | 16 | 0.20% | 0.24% |  |
| C | 7954 | 6735 | 45 | 45 | 0.57% | 0.67% |  |
| D | 7954 | 6734 | 595 | 595 | 7.48% | 8.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 56896 | 327.08 | 845 | 828 | 171.4 |
| A | 0 | 226 | 7368 | 38.15 | 845 | 828 | 171.4 |
| A | 3 | 137 | 6331 | 32.1 | 845 | 828 | 171.4 |
| B | 7 | 220 | 136237 | 837.93 | 854 | 833 | 161.6 |
| B | 10 | 245 | 23542 | 140.53 | 854 | 833 | 161.6 |
| B | 12 | 111 | 18995 | 112.39 | 854 | 833 | 161.6 |
| C | 3 | 233 | 264446 | 1361.29 | 824 | 831 | 193.7 |
| C | 14 | 238 | 128269 | 658.08 | 824 | 831 | 193.7 |
| C | 0 | 207 | 7616 | 35.04 | 824 | 831 | 193.7 |
| D | 1 | 52 | 2280990 | 11963.19 | 792 | 772 | 190.6 |
| D | 12 | 218 | 180174 | 941.23 | 792 | 772 | 190.6 |
| D | 11 | 176 | 158229 | 826.1 | 792 | 772 | 190.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

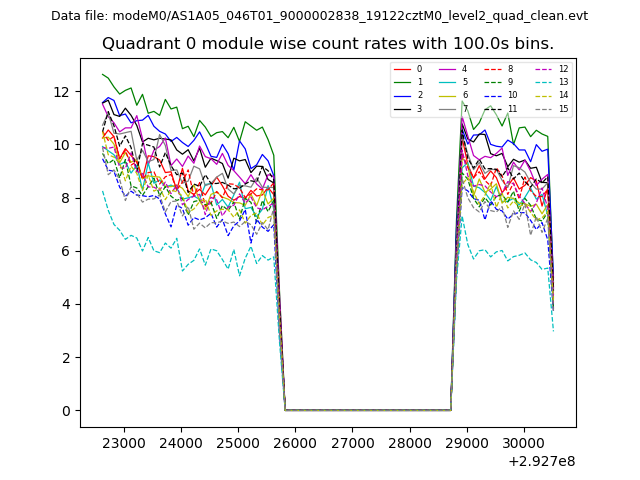

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

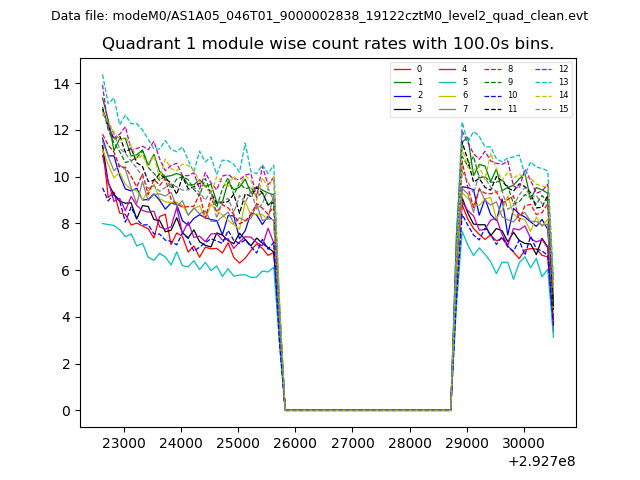

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

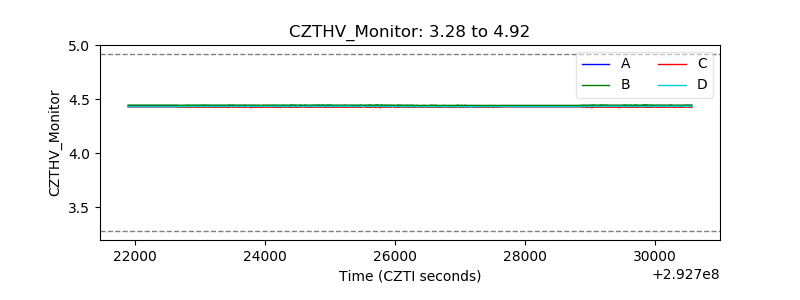

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

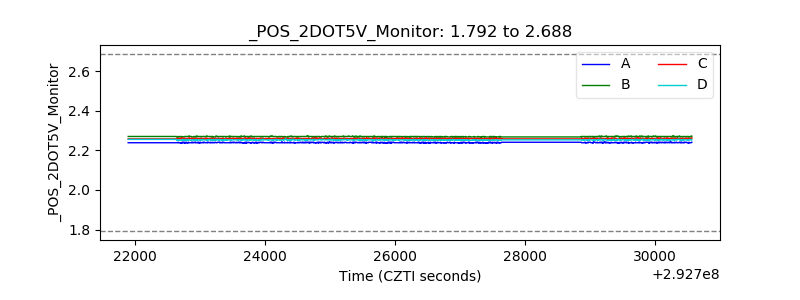

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

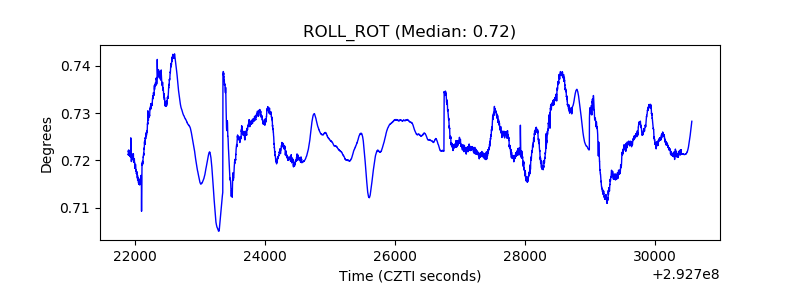

| _ROLL_ROT |  |

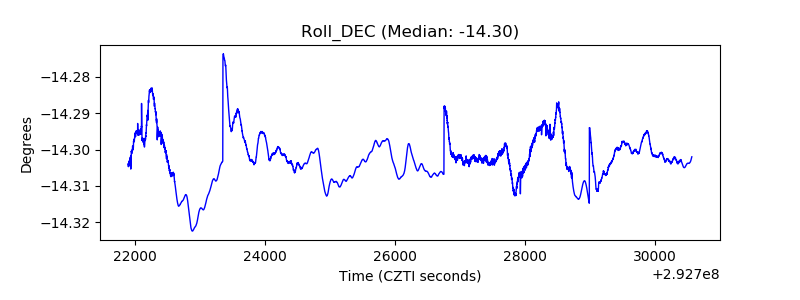

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
