| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19123cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19123cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,931,520 | 92,217,600 |
| Size | 591.2 MB | 87.9 MB |
| Events in quadrant A | 3,170,187 | 588,916 |
| Events in quadrant B | 3,620,318 | 606,197 |
| Events in quadrant C | 3,270,523 | 588,603 |
| Events in quadrant D | 8,254,782 | 536,961 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13883 | 1 |
| B | 0 | 15328 | 1 |
| C | 0 | 13916 | 1 |
| D | 0 | 29288 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6773 | 37 | 0.546287% |
| B | 6773 | 124 | 1.830799% |
| C | 6773 | 55 | 0.812048% |
| D | 6773 | 1761 | 26.000295% |

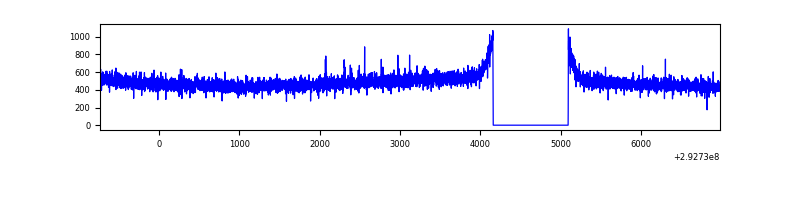

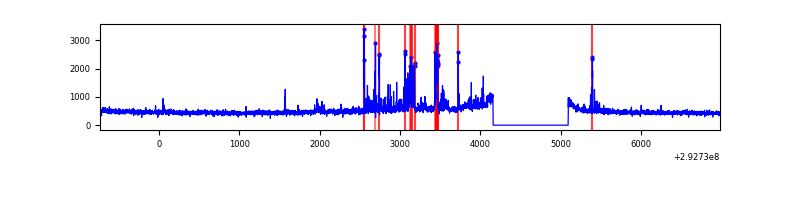

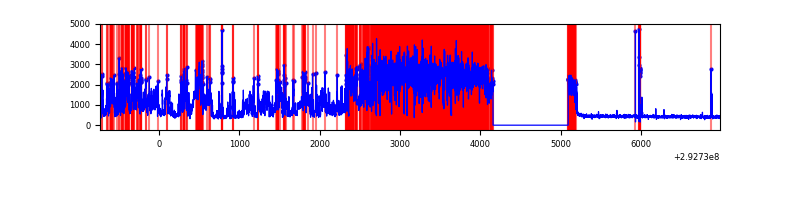

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6774 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7708 | 6774 | 33 | 33 | 0.43% | 0.49% |  |
| C | 7708 | 6774 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7708 | 6774 | 1512 | 1512 | 19.62% | 22.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7246 | 38.8 | 821 | 805 | 166.0 |
| A | 13 | 254 | 6283 | 33.0 | 821 | 805 | 166.0 |
| A | 3 | 137 | 6209 | 32.55 | 821 | 805 | 166.0 |
| B | 10 | 245 | 258131 | 1622.34 | 821 | 799 | 158.6 |
| B | 7 | 220 | 107441 | 672.32 | 821 | 799 | 158.6 |
| B | 12 | 111 | 18534 | 111.81 | 821 | 799 | 158.6 |
| C | 14 | 238 | 123014 | 648.86 | 800 | 806 | 188.3 |
| C | 3 | 233 | 27587 | 142.19 | 800 | 806 | 188.3 |
| C | 13 | 61 | 5648 | 25.71 | 800 | 806 | 188.3 |
| D | 1 | 52 | 5205238 | 30097.01 | 712 | 692 | 172.9 |
| D | 12 | 218 | 183302 | 1056.0 | 712 | 692 | 172.9 |
| D | 7 | 238 | 92300 | 529.75 | 712 | 692 | 172.9 |

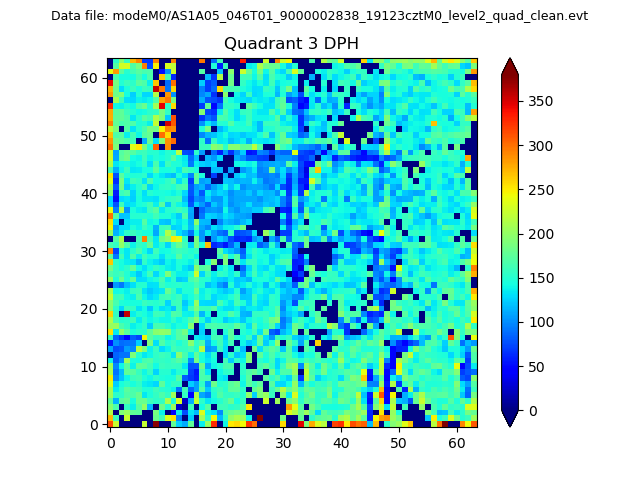

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

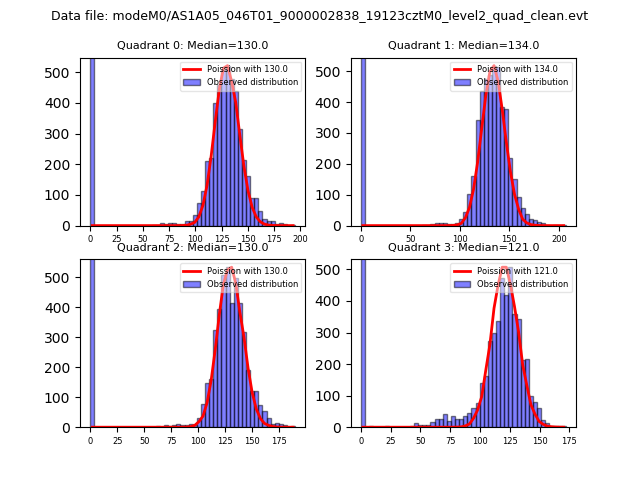

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

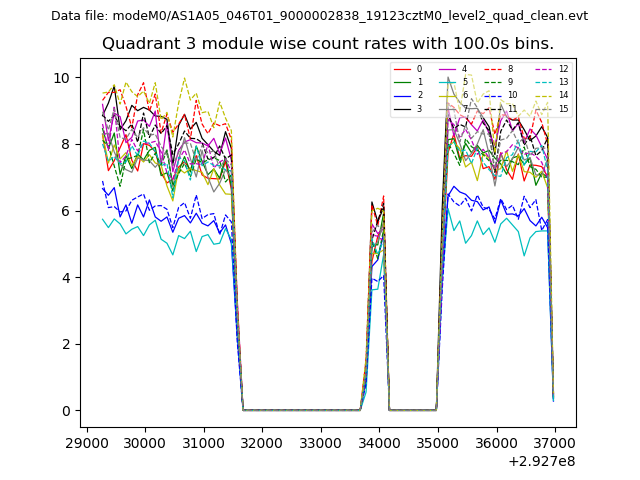

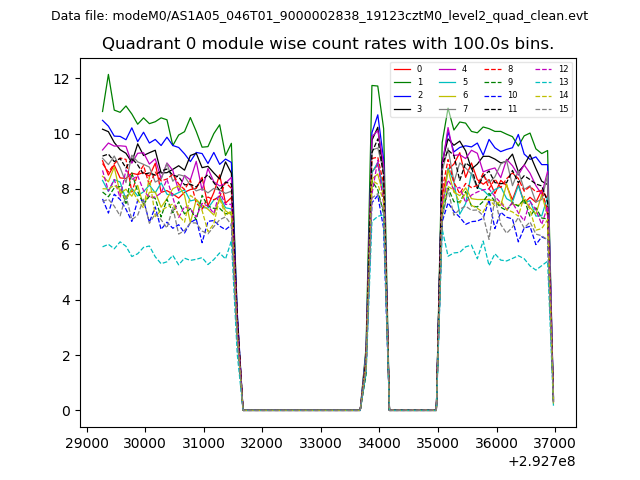

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

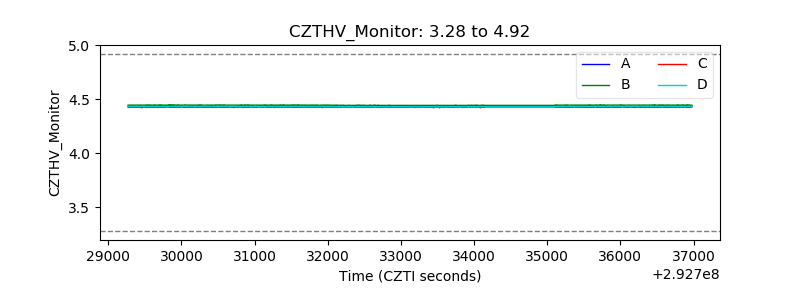

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
