| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19129cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19129cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,369,560,960 | 211,008,960 |
| Size | 1.3 GB | 201.2 MB |
| Events in quadrant A | 8,603,314 | 1,290,443 |
| Events in quadrant B | 9,627,833 | 1,317,601 |
| Events in quadrant C | 8,987,252 | 1,282,486 |
| Events in quadrant D | 13,008,595 | 1,224,264 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37838 | 4 |
| B | 0 | 40287 | 4 |
| C | 0 | 38244 | 4 |
| D | 0 | 51328 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18510 | 234 | 1.264182% |
| B | 18511 | 346 | 1.869159% |
| C | 18511 | 297 | 1.604451% |
| D | 18511 | 796 | 4.300146% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20405 | 18510 | 0 | 0 | 0.00% | 0.00% |  |
| B | 20406 | 18512 | 53 | 53 | 0.26% | 0.29% |  |
| C | 20406 | 18513 | 5 | 5 | 0.02% | 0.03% |  |
| D | 20406 | 18512 | 493 | 493 | 2.42% | 2.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 21302 | 42.15 | 2234 | 2180 | 453.7 |
| A | 0 | 226 | 19356 | 37.86 | 2234 | 2180 | 453.7 |
| A | 3 | 137 | 17848 | 34.53 | 2234 | 2180 | 453.7 |
| B | 7 | 220 | 403606 | 939.83 | 2224 | 2165 | 427.1 |
| B | 10 | 245 | 194940 | 451.31 | 2224 | 2165 | 427.1 |
| B | 6 | 36 | 190901 | 441.86 | 2224 | 2165 | 427.1 |
| C | 14 | 238 | 330268 | 648.65 | 2160 | 2176 | 505.8 |
| C | 3 | 233 | 185309 | 362.06 | 2160 | 2176 | 505.8 |
| C | 9 | 54 | 32289 | 59.53 | 2160 | 2176 | 505.8 |
| D | 1 | 20 | 2621140 | 4972.25 | 2163 | 2100 | 526.7 |
| D | 11 | 176 | 1512332 | 2867.18 | 2163 | 2100 | 526.7 |
| D | 1 | 52 | 543289 | 1027.45 | 2163 | 2100 | 526.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

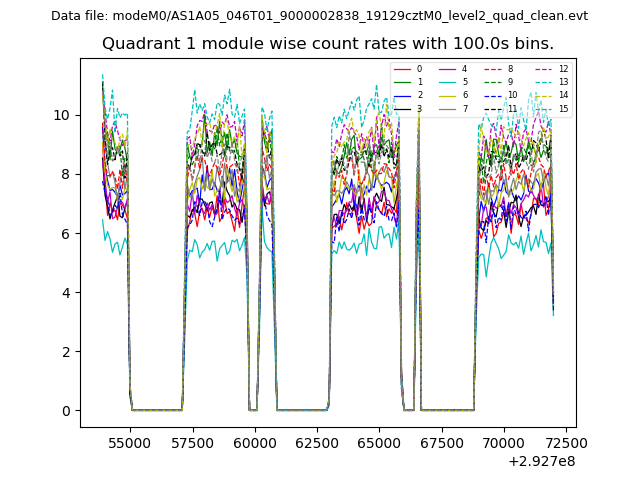

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

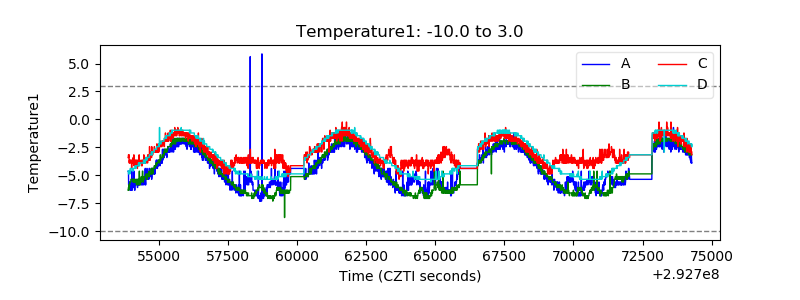

| Temperature 1 |  |

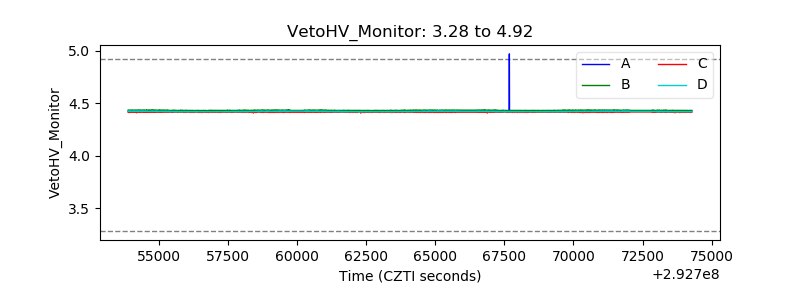

| Veto HV Monitor |  |
| Veto LLD |  |

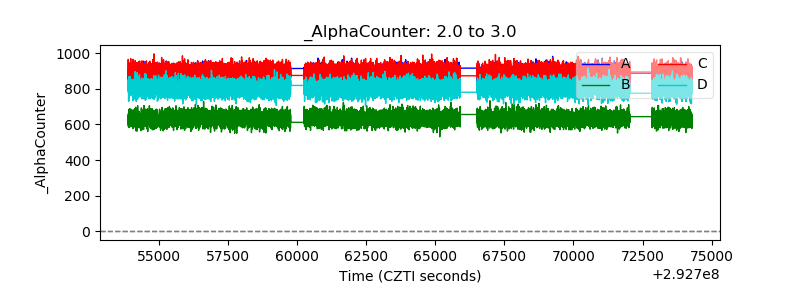

| Alpha Counter |  |

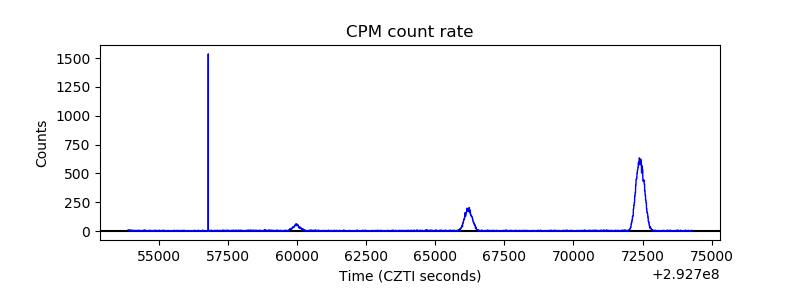

| _CPM_Rate |  |

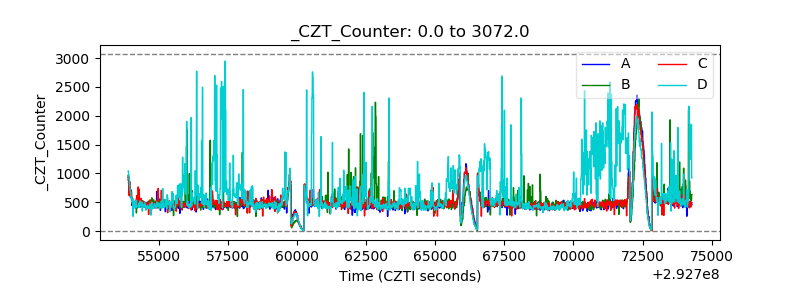

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

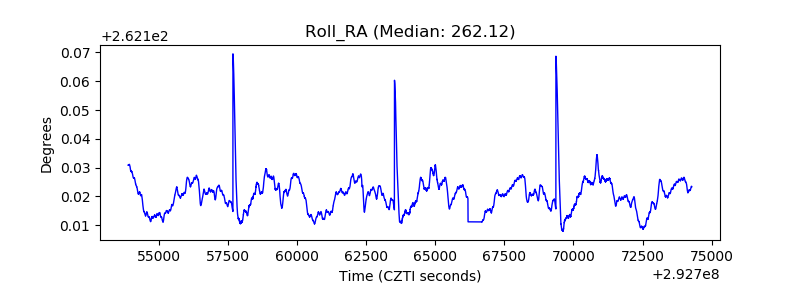

| _Roll_RA |  |
| Veto Counter |  |
