| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19133cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19133cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,176,640 | 89,881,920 |
| Size | 475.1 MB | 85.7 MB |
| Events in quadrant A | 3,053,583 | 584,605 |
| Events in quadrant B | 3,334,216 | 601,011 |
| Events in quadrant C | 3,134,263 | 576,623 |
| Events in quadrant D | 5,147,505 | 529,627 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13000 | 1 |
| B | 0 | 13868 | 1 |
| C | 0 | 13092 | 1 |
| D | 0 | 19533 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6153 | 43 | 0.698846% |
| B | 6154 | 67 | 1.088723% |
| C | 6154 | 67 | 1.088723% |
| D | 6154 | 599 | 9.733507% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7368 | 6154 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7369 | 6155 | 10 | 10 | 0.14% | 0.16% |  |
| C | 7369 | 6155 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7369 | 6155 | 536 | 536 | 7.27% | 8.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7930 | 44.81 | 793 | 779 | 159.6 |
| A | 0 | 226 | 7041 | 39.24 | 793 | 779 | 159.6 |
| A | 3 | 137 | 5893 | 32.05 | 793 | 779 | 159.6 |
| B | 6 | 36 | 79678 | 529.37 | 797 | 779 | 149.0 |
| B | 7 | 220 | 59472 | 393.8 | 797 | 779 | 149.0 |
| B | 3 | 112 | 18768 | 120.7 | 797 | 779 | 149.0 |
| C | 14 | 238 | 121496 | 673.94 | 769 | 777 | 179.1 |
| C | 3 | 233 | 10689 | 55.34 | 769 | 777 | 179.1 |
| C | 13 | 61 | 5414 | 25.89 | 769 | 777 | 179.1 |
| D | 1 | 20 | 2000882 | 11078.88 | 751 | 733 | 180.5 |
| D | 11 | 176 | 214967 | 1186.65 | 751 | 733 | 180.5 |
| D | 1 | 52 | 74637 | 409.36 | 751 | 733 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

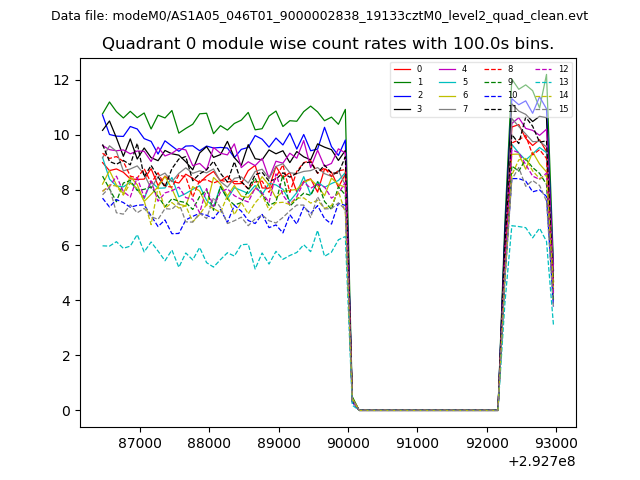

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

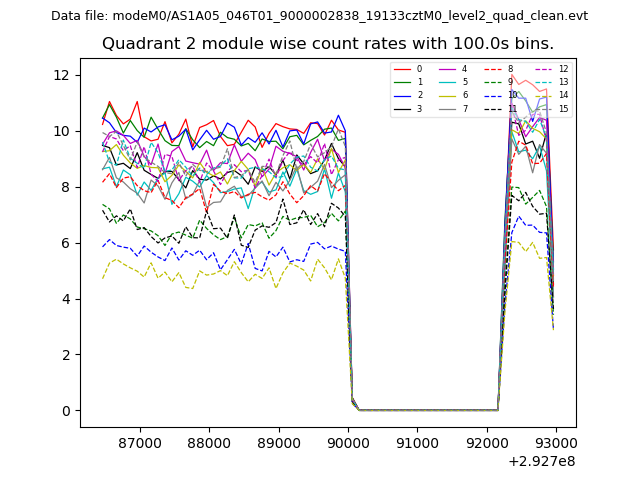

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

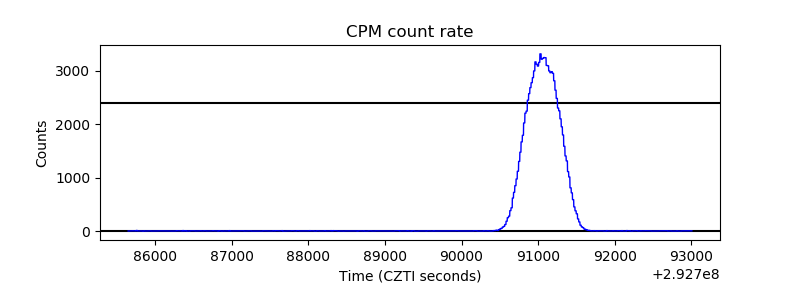

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

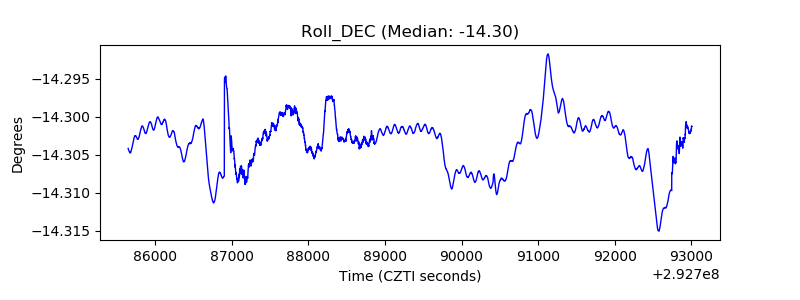

| _Roll_DEC |  |

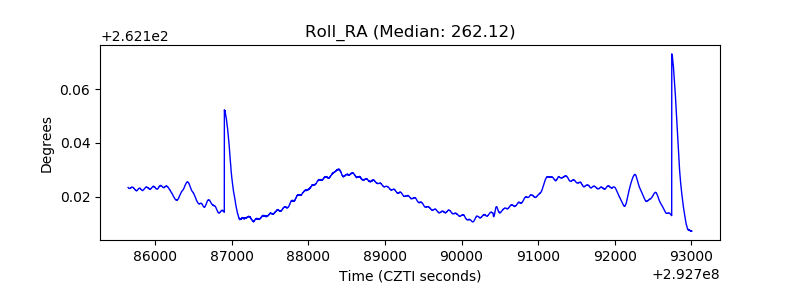

| _Roll_RA |  |

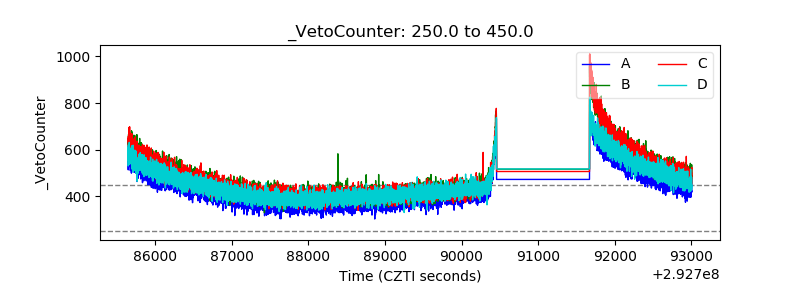

| Veto Counter |  |
