| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19136cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19136cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,852,480 | 103,754,880 |
| Size | 430.0 MB | 98.9 MB |
| Events in quadrant A | 3,086,655 | 676,397 |
| Events in quadrant B | 3,418,175 | 704,181 |
| Events in quadrant C | 3,200,508 | 678,491 |
| Events in quadrant D | 3,523,008 | 645,832 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13074 | 2 |
| B | 0 | 14014 | 2 |
| C | 0 | 13278 | 2 |
| D | 0 | 14497 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 38 | 0.606544% |
| B | 6265 | 144 | 2.298484% |
| C | 6265 | 66 | 1.053472% |
| D | 6264 | 90 | 1.436782% |

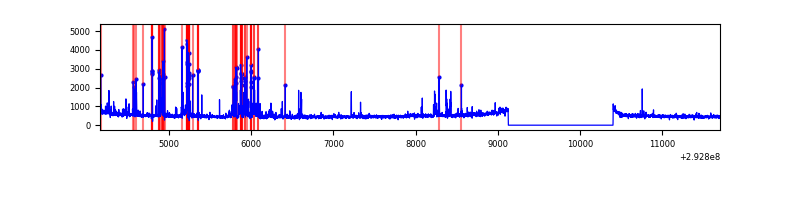

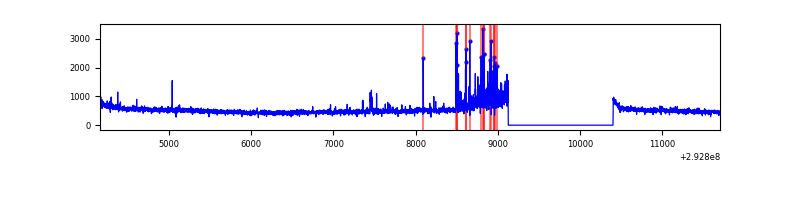

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7540 | 6266 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7540 | 6266 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7540 | 6266 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7539 | 6265 | 75 | 75 | 0.99% | 1.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6944 | 38.57 | 800 | 784 | 159.7 |
| A | 3 | 137 | 5910 | 32.1 | 800 | 784 | 159.7 |
| A | 13 | 254 | 5885 | 31.94 | 800 | 784 | 159.7 |
| B | 7 | 220 | 106980 | 695.85 | 808 | 789 | 152.6 |
| B | 6 | 36 | 97793 | 635.65 | 808 | 789 | 152.6 |
| B | 10 | 247 | 20818 | 131.25 | 808 | 789 | 152.6 |
| C | 14 | 238 | 124349 | 670.53 | 788 | 796 | 184.3 |
| C | 13 | 61 | 5502 | 25.54 | 788 | 796 | 184.3 |
| C | 7 | 220 | 3174 | 12.91 | 788 | 796 | 184.3 |
| D | 1 | 52 | 470975 | 2494.26 | 781 | 759 | 188.5 |
| D | 1 | 20 | 44858 | 233.92 | 781 | 759 | 188.5 |
| D | 11 | 176 | 44084 | 229.82 | 781 | 759 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

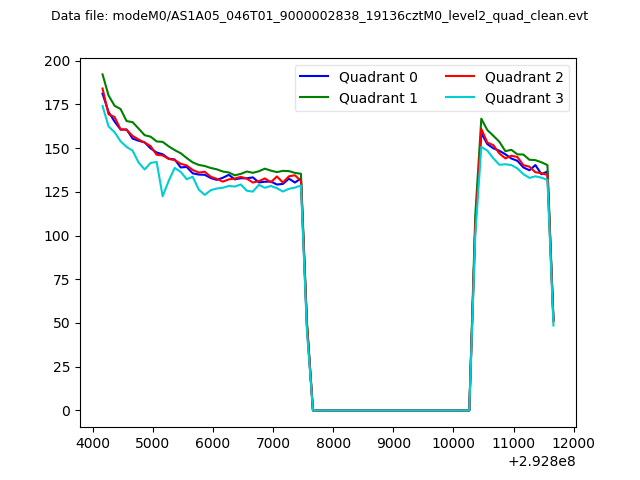

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

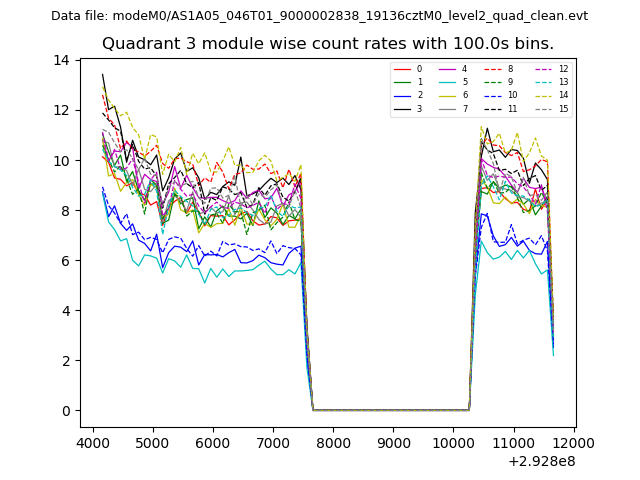

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

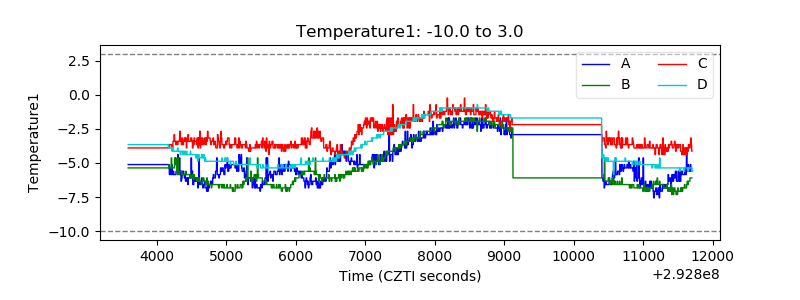

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

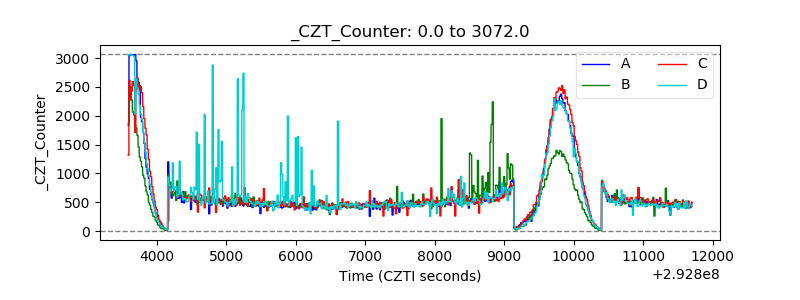

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

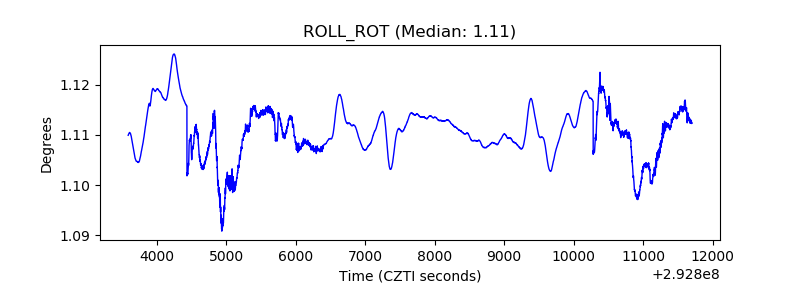

| _ROLL_ROT |  |

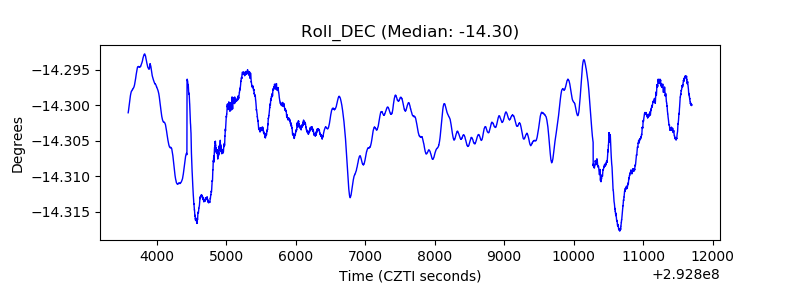

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
