| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19149cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19149cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,763,840 | 103,524,480 |
| Size | 454.7 MB | 98.7 MB |
| Events in quadrant A | 3,133,357 | 677,216 |
| Events in quadrant B | 3,440,133 | 705,091 |
| Events in quadrant C | 3,243,664 | 679,263 |
| Events in quadrant D | 4,205,801 | 645,841 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13134 | 2 |
| B | 0 | 14052 | 2 |
| C | 0 | 13380 | 2 |
| D | 0 | 16320 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6124 | 28 | 0.457218% |
| B | 6123 | 117 | 1.910828% |
| C | 6123 | 62 | 1.012576% |
| D | 6123 | 165 | 2.694757% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6125 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7458 | 6124 | 20 | 20 | 0.27% | 0.33% |  |
| C | 7458 | 6124 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7458 | 6124 | 179 | 179 | 2.40% | 2.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 7958 | 44.34 | 811 | 795 | 161.5 |
| A | 0 | 226 | 7143 | 39.3 | 811 | 795 | 161.5 |
| A | 13 | 254 | 6545 | 35.59 | 811 | 795 | 161.5 |
| B | 6 | 36 | 95076 | 612.79 | 819 | 800 | 153.8 |
| B | 7 | 220 | 85528 | 550.73 | 819 | 800 | 153.8 |
| B | 12 | 111 | 17409 | 107.96 | 819 | 800 | 153.8 |
| C | 14 | 238 | 123950 | 664.3 | 794 | 804 | 185.4 |
| C | 3 | 233 | 22105 | 114.91 | 794 | 804 | 185.4 |
| C | 13 | 61 | 5468 | 25.16 | 794 | 804 | 185.4 |
| D | 1 | 52 | 1228197 | 6487.13 | 788 | 770 | 189.2 |
| D | 2 | 234 | 25147 | 128.84 | 788 | 770 | 189.2 |
| D | 14 | 226 | 8042 | 38.43 | 788 | 770 | 189.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

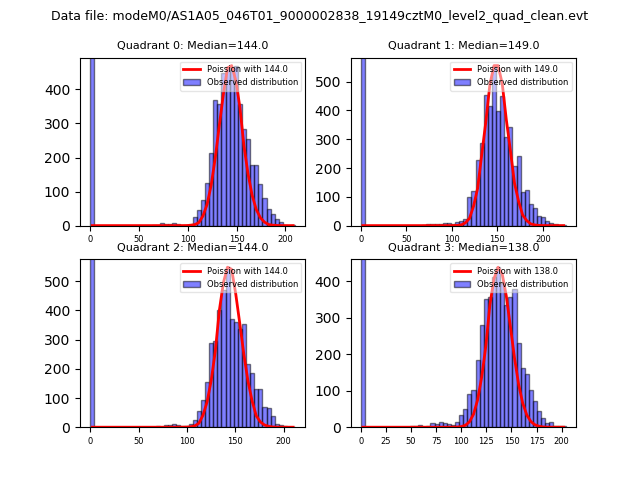

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

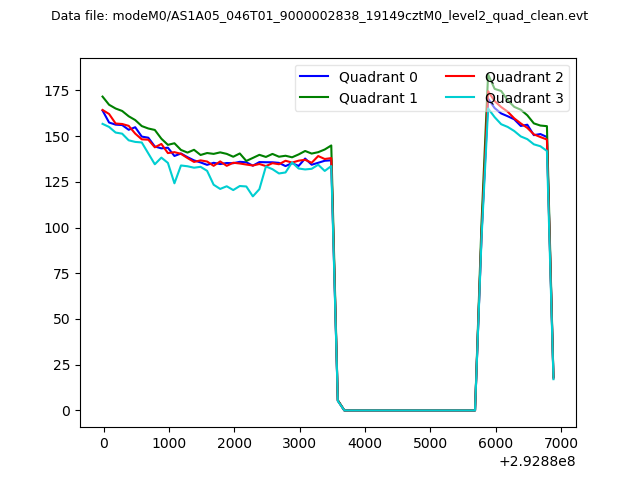

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
