| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19153cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19153cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,342,720 | 101,220,480 |
| Size | 481.0 MB | 96.5 MB |
| Events in quadrant A | 3,409,352 | 635,807 |
| Events in quadrant B | 3,582,341 | 658,312 |
| Events in quadrant C | 4,211,010 | 638,014 |
| Events in quadrant D | 3,574,145 | 623,525 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15041 | 1 |
| B | 0 | 15384 | 1 |
| C | 0 | 17311 | 1 |
| D | 0 | 15686 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7322 | 56 | 0.764818% |
| B | 7323 | 98 | 1.338249% |
| C | 7323 | 156 | 2.130274% |
| D | 7323 | 68 | 0.928581% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7797 | 7323 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7798 | 7324 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7798 | 7324 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7798 | 7324 | 14 | 14 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30733 | 169.03 | 875 | 857 | 176.7 |
| A | 13 | 254 | 7977 | 40.28 | 875 | 857 | 176.7 |
| A | 0 | 226 | 7471 | 37.42 | 875 | 857 | 176.7 |
| B | 3 | 112 | 34973 | 198.95 | 882 | 857 | 171.5 |
| B | 7 | 220 | 32103 | 182.22 | 882 | 857 | 171.5 |
| B | 0 | 190 | 24343 | 136.96 | 882 | 857 | 171.5 |
| C | 3 | 233 | 743748 | 3667.64 | 855 | 861 | 202.6 |
| C | 14 | 238 | 131983 | 647.35 | 855 | 861 | 202.6 |
| C | 13 | 61 | 6077 | 25.75 | 855 | 861 | 202.6 |
| D | 1 | 52 | 280178 | 1309.07 | 867 | 842 | 213.4 |
| D | 2 | 234 | 27720 | 125.96 | 867 | 842 | 213.4 |
| D | 11 | 176 | 25362 | 114.91 | 867 | 842 | 213.4 |

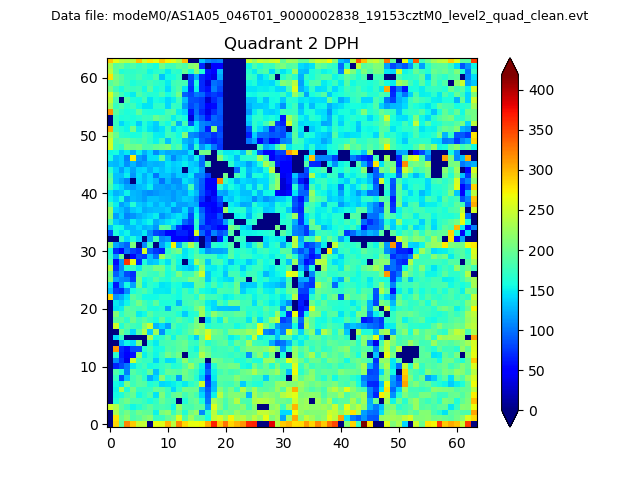

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

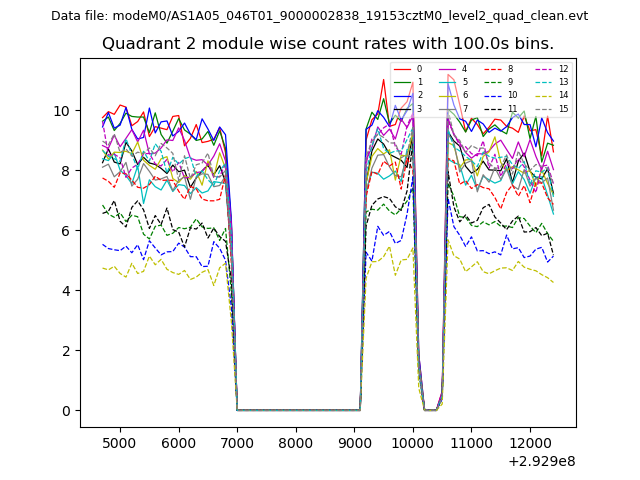

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

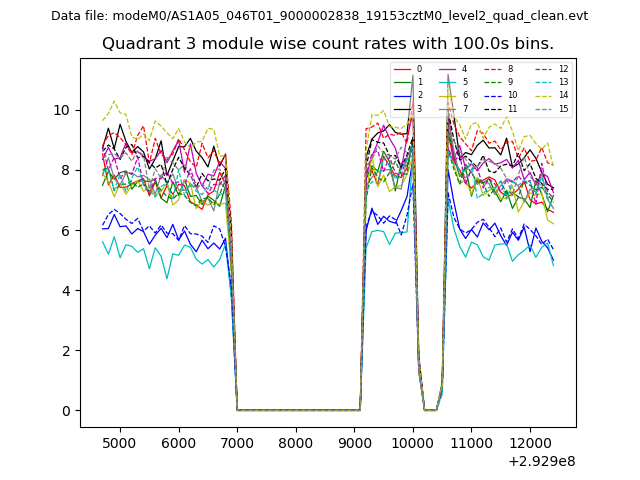

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

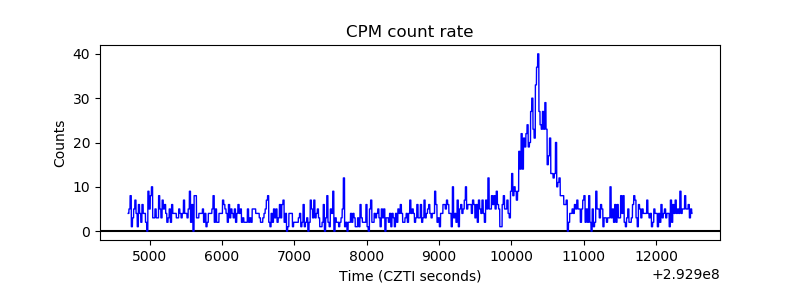

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

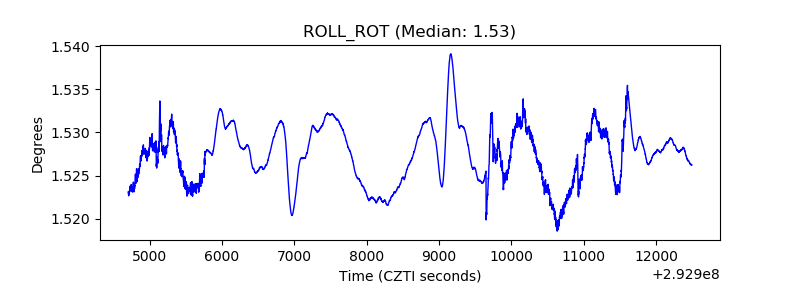

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
