| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19167cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19167cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,815,040 | 96,125,760 |
| Size | 481.4 MB | 91.7 MB |
| Events in quadrant A | 3,377,068 | 602,998 |
| Events in quadrant B | 3,587,877 | 622,099 |
| Events in quadrant C | 4,282,341 | 605,503 |
| Events in quadrant D | 3,562,118 | 589,099 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14642 | 2 |
| B | 0 | 15248 | 2 |
| C | 0 | 17284 | 2 |
| D | 0 | 15563 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7057 | 49 | 0.694346% |
| B | 7058 | 118 | 1.671862% |
| C | 7058 | 160 | 2.266931% |
| D | 7058 | 104 | 1.473505% |

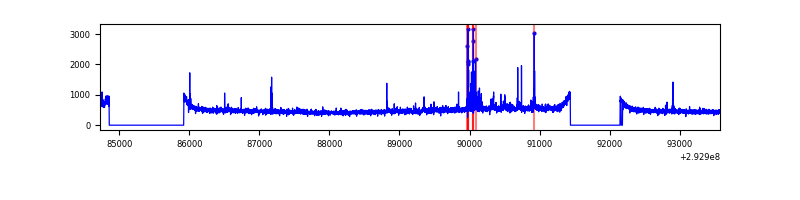

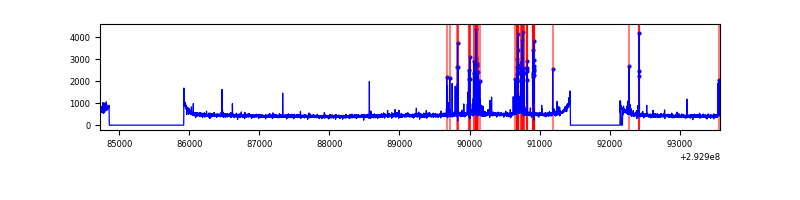

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8852 | 7060 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8853 | 7061 | 10 | 10 | 0.11% | 0.14% |  |
| C | 8853 | 7061 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8853 | 7061 | 67 | 67 | 0.76% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 16342 | 87.53 | 870 | 852 | 177.0 |
| A | 13 | 254 | 10119 | 52.36 | 870 | 852 | 177.0 |
| A | 0 | 226 | 7586 | 38.05 | 870 | 852 | 177.0 |
| B | 7 | 220 | 71104 | 417.78 | 874 | 850 | 168.2 |
| B | 0 | 190 | 22318 | 127.66 | 874 | 850 | 168.2 |
| B | 12 | 111 | 20419 | 116.37 | 874 | 850 | 168.2 |
| C | 3 | 233 | 851439 | 4261.36 | 846 | 854 | 199.6 |
| C | 14 | 238 | 129052 | 642.26 | 846 | 854 | 199.6 |
| C | 13 | 61 | 5923 | 25.39 | 846 | 854 | 199.6 |
| D | 11 | 176 | 304881 | 1459.54 | 850 | 823 | 208.3 |
| D | 2 | 234 | 28986 | 135.19 | 850 | 823 | 208.3 |
| D | 7 | 96 | 18296 | 83.87 | 850 | 823 | 208.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

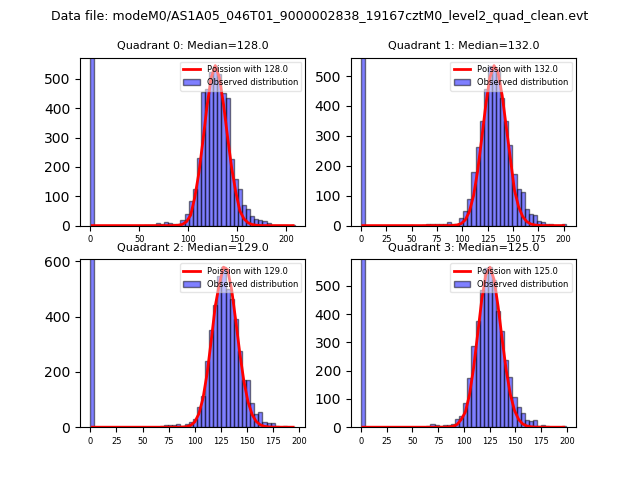

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

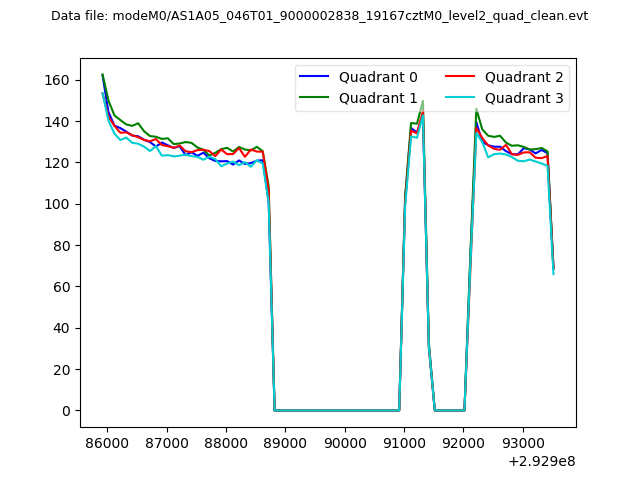

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

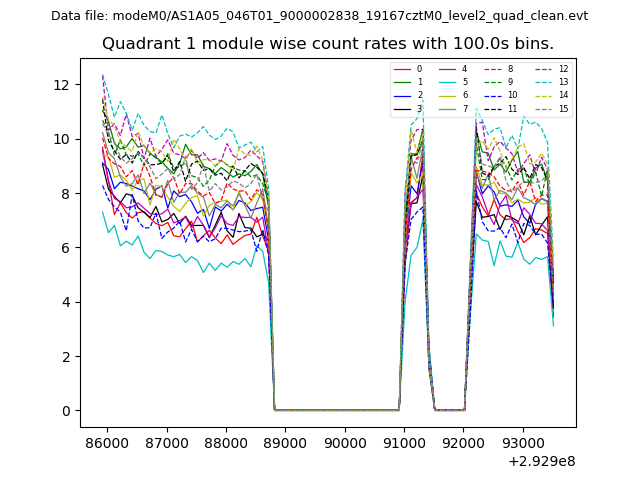

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

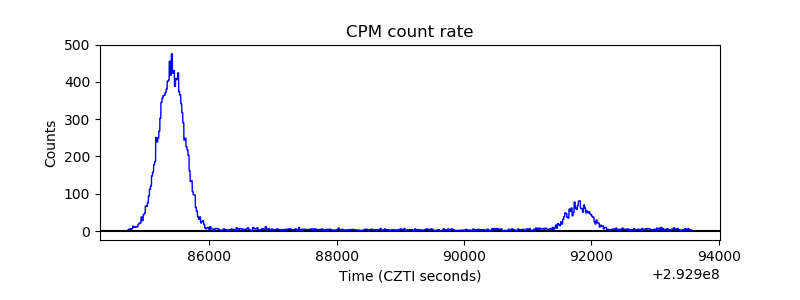

| _CPM_Rate |  |

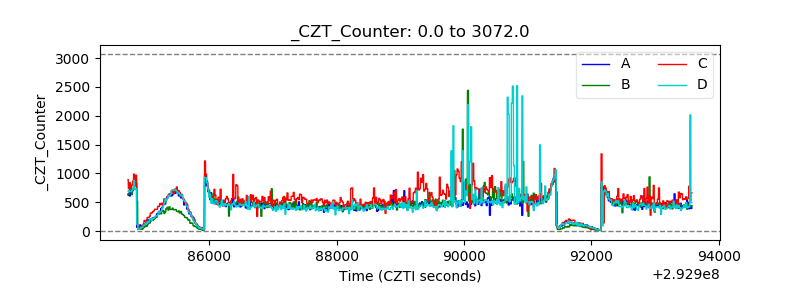

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

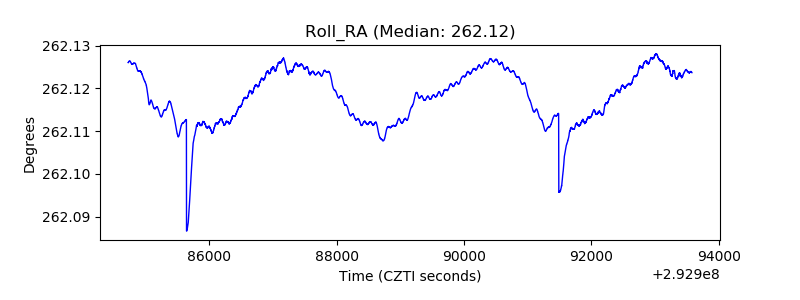

| _Roll_RA |  |
| Veto Counter |  |
