| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19177cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19177cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,735,040 | 91,739,520 |
| Size | 489.0 MB | 87.5 MB |
| Events in quadrant A | 3,319,963 | 587,789 |
| Events in quadrant B | 3,508,604 | 606,495 |
| Events in quadrant C | 3,871,107 | 580,389 |
| Events in quadrant D | 4,399,829 | 562,217 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13878 | 2 |
| B | 0 | 14428 | 2 |
| C | 0 | 15643 | 3 |
| D | 0 | 17328 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6329 | 60 | 0.948017% |
| B | 6329 | 101 | 1.595829% |
| C | 6328 | 144 | 2.275601% |
| D | 6328 | 233 | 3.682048% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6330 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7594 | 6330 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7593 | 6329 | 14 | 14 | 0.18% | 0.22% |  |
| D | 7593 | 6329 | 123 | 123 | 1.62% | 1.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 23227 | 131.8 | 848 | 833 | 169.9 |
| A | 11 | 47 | 19566 | 110.25 | 848 | 833 | 169.9 |
| A | 13 | 254 | 9634 | 51.8 | 848 | 833 | 169.9 |
| B | 7 | 220 | 72610 | 449.62 | 856 | 838 | 159.6 |
| B | 6 | 36 | 47842 | 294.46 | 856 | 838 | 159.6 |
| B | 12 | 111 | 18274 | 109.23 | 856 | 838 | 159.6 |
| C | 3 | 233 | 490114 | 2566.88 | 821 | 830 | 190.6 |
| C | 14 | 238 | 129157 | 673.23 | 821 | 830 | 190.6 |
| C | 0 | 207 | 52784 | 272.56 | 821 | 830 | 190.6 |
| D | 10 | 66 | 846746 | 4296.06 | 819 | 800 | 196.9 |
| D | 1 | 52 | 339849 | 1721.83 | 819 | 800 | 196.9 |
| D | 9 | 68 | 53992 | 270.13 | 819 | 800 | 196.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

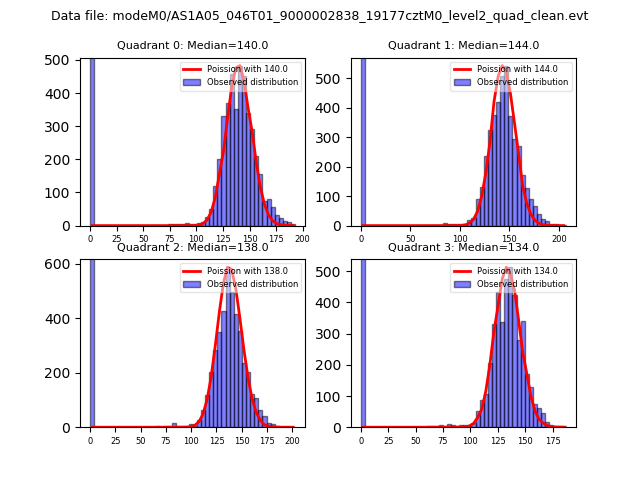

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
