| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19183cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19183cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,010,560 | 115,251,840 |
| Size | 537.9 MB | 109.9 MB |
| Events in quadrant A | 3,885,688 | 728,906 |
| Events in quadrant B | 4,183,560 | 752,186 |
| Events in quadrant C | 4,293,838 | 730,382 |
| Events in quadrant D | 4,156,223 | 704,107 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18571 | 1380 |
| B | 0 | 19182 | 1402 |
| C | 0 | 19495 | 1725 |
| D | 0 | 20627 | 2425 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 14 |
| B | 0 | 184 | 18 |
| C | 0 | 184 | 12 |
| D | 0 | 184 | 16 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8278 | 32 | 0.386567% |
| B | 8279 | 109 | 1.316584% |
| C | 8267 | 136 | 1.645095% |
| D | 8276 | 133 | 1.607057% |

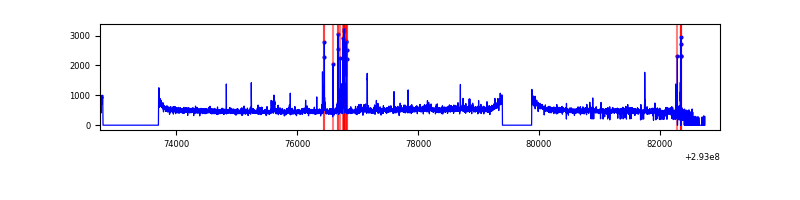

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10016 | 8395 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10259 | 8400 | 22 | 22 | 0.21% | 0.26% |  |
| C | 10012 | 8375 | 25 | 25 | 0.25% | 0.30% |  |
| D | 10215 | 8354 | 89 | 89 | 0.87% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 144 | 52313 | 256.92 | 990 | 970 | 199.8 |
| A | 11 | 29 | 18754 | 88.99 | 990 | 970 | 199.8 |
| A | 13 | 254 | 9711 | 43.74 | 990 | 970 | 199.8 |
| B | 3 | 112 | 198182 | 1032.74 | 993 | 968 | 191.0 |
| B | 7 | 220 | 36747 | 187.36 | 993 | 968 | 191.0 |
| B | 0 | 189 | 32453 | 164.88 | 993 | 968 | 191.0 |
| C | 3 | 233 | 366073 | 1588.58 | 965 | 970 | 229.8 |
| C | 14 | 238 | 148398 | 641.47 | 965 | 970 | 229.8 |
| C | 0 | 207 | 11169 | 44.38 | 965 | 970 | 229.8 |
| D | 1 | 52 | 210027 | 882.61 | 971 | 943 | 236.9 |
| D | 9 | 85 | 150936 | 633.17 | 971 | 943 | 236.9 |
| D | 11 | 176 | 115528 | 483.7 | 971 | 943 | 236.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

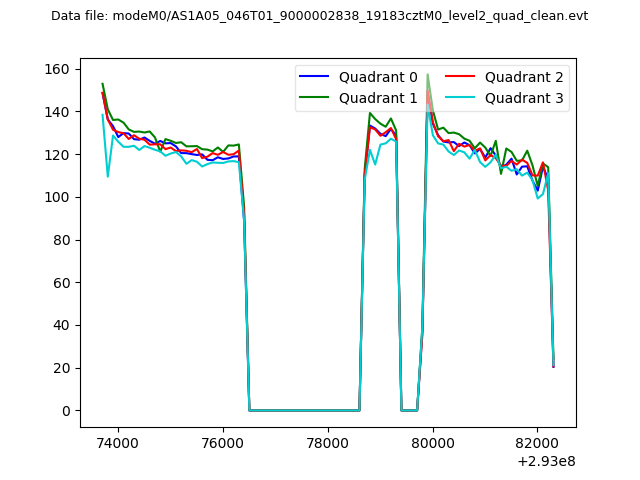

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

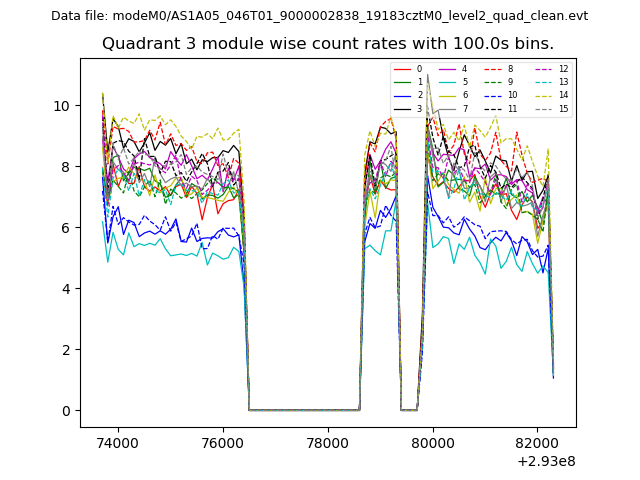

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

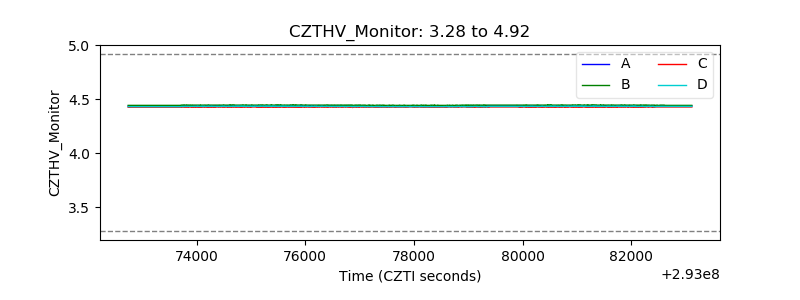

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

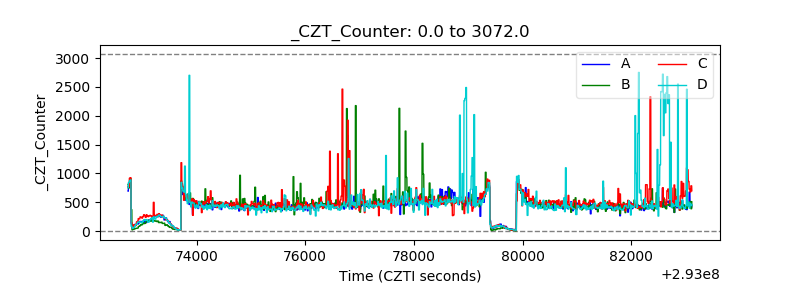

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

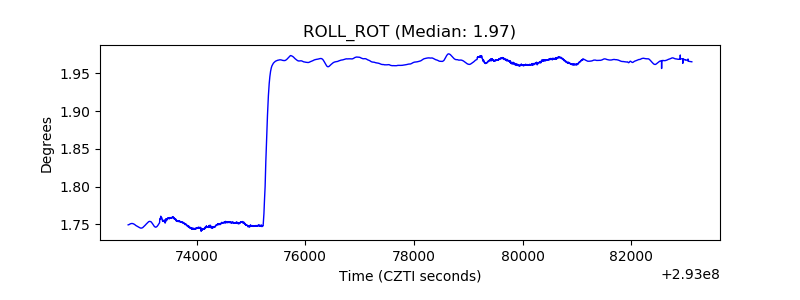

| _ROLL_ROT |  |
| _Roll_DEC |  |

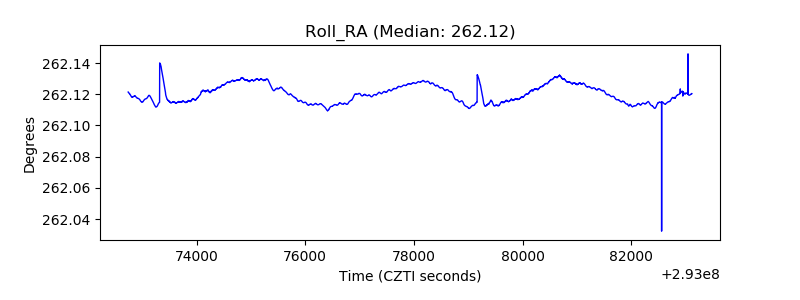

| _Roll_RA |  |

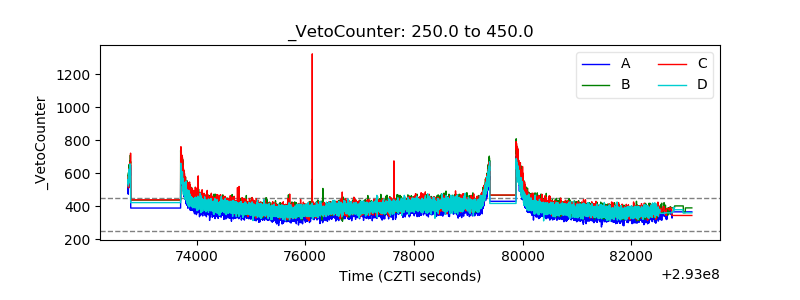

| Veto Counter |  |
