| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19203cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19203cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,667,840 | 65,678,400 |
| Size | 486.1 MB | 62.6 MB |
| Events in quadrant A | 3,292,713 | 387,339 |
| Events in quadrant B | 3,425,682 | 393,129 |
| Events in quadrant C | 4,193,444 | 377,772 |
| Events in quadrant D | 4,074,686 | 369,249 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14028 | 2 |
| B | 0 | 14358 | 2 |
| C | 0 | 17178 | 4 |
| D | 0 | 16571 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6613 | 116 | 1.754121% |
| B | 6614 | 127 | 1.920169% |
| C | 6613 | 185 | 2.797520% |
| D | 6613 | 234 | 3.538485% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8608 | 6613 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8609 | 6614 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8608 | 6614 | 10 | 10 | 0.12% | 0.15% |  |
| D | 8608 | 6614 | 112 | 112 | 1.30% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 11486 | 61.8 | 851 | 835 | 172.4 |
| A | 13 | 254 | 9503 | 50.29 | 851 | 835 | 172.4 |
| A | 0 | 226 | 7393 | 38.05 | 851 | 835 | 172.4 |
| B | 0 | 190 | 31336 | 187.18 | 849 | 829 | 163.0 |
| B | 7 | 220 | 23936 | 141.77 | 849 | 829 | 163.0 |
| B | 12 | 111 | 19318 | 113.44 | 849 | 829 | 163.0 |
| C | 3 | 233 | 836245 | 4390.03 | 816 | 821 | 190.3 |
| C | 14 | 238 | 125596 | 655.67 | 816 | 821 | 190.3 |
| C | 0 | 207 | 50963 | 263.49 | 816 | 821 | 190.3 |
| D | 9 | 68 | 450095 | 2236.71 | 827 | 807 | 200.9 |
| D | 12 | 16 | 449395 | 2233.22 | 827 | 807 | 200.9 |
| D | 2 | 234 | 27575 | 133.26 | 827 | 807 | 200.9 |

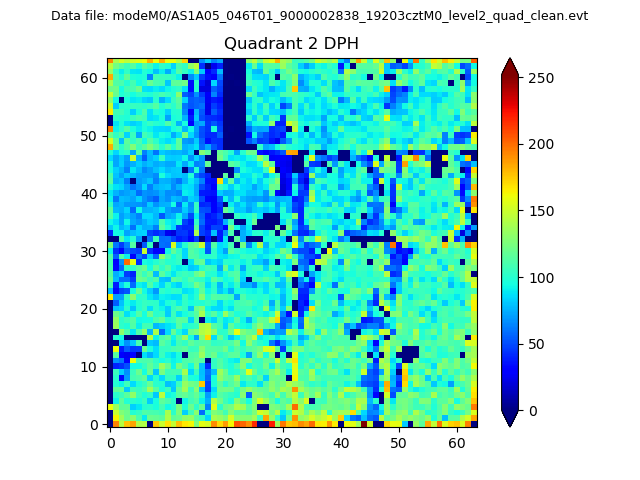

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

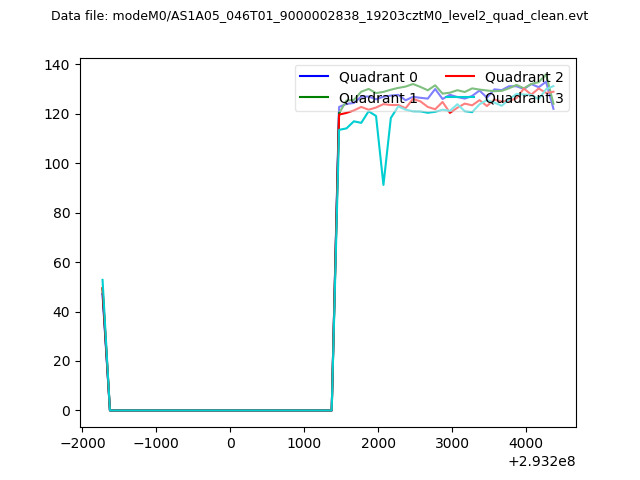

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

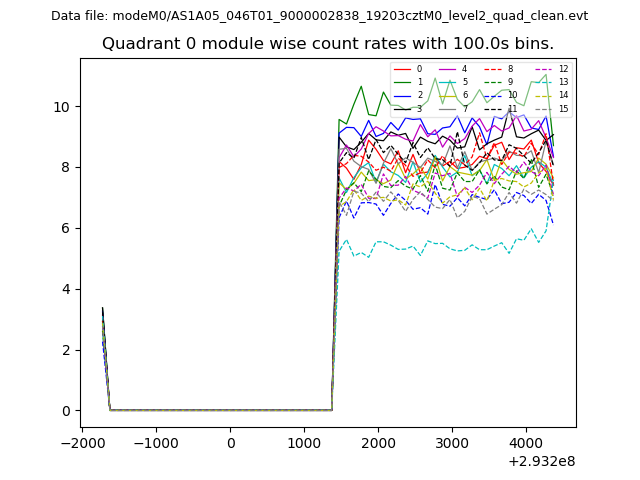

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

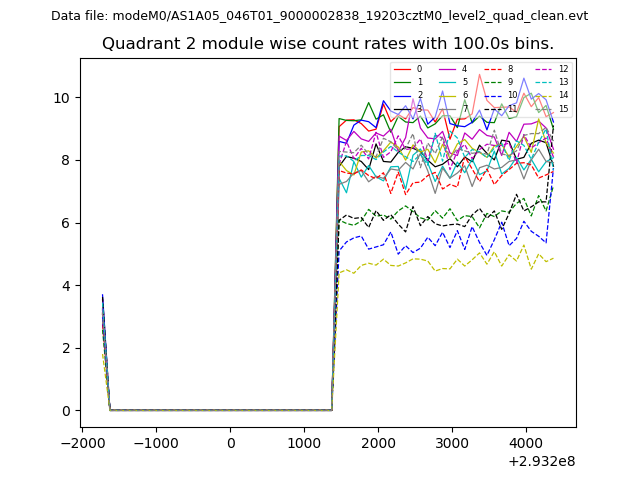

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

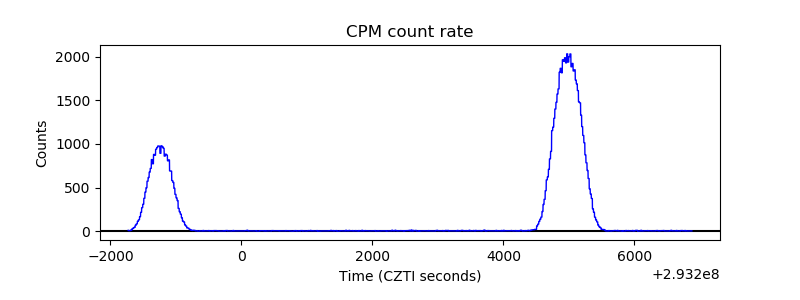

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

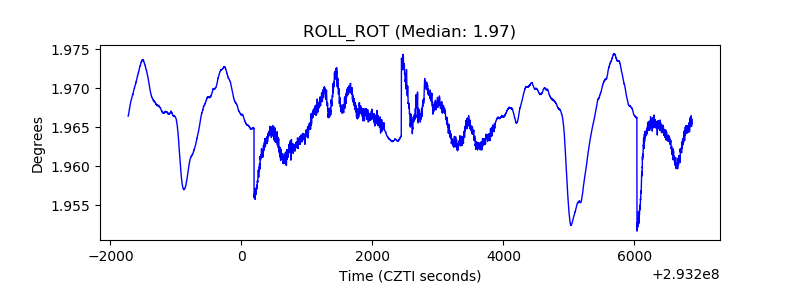

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
