| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19208cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19208cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,826,240 | 104,158,080 |
| Size | 477.6 MB | 99.3 MB |
| Events in quadrant A | 3,152,282 | 684,184 |
| Events in quadrant B | 3,289,912 | 711,873 |
| Events in quadrant C | 4,096,043 | 676,511 |
| Events in quadrant D | 4,208,955 | 649,213 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13191 | 2 |
| B | 0 | 13598 | 2 |
| C | 0 | 16507 | 3 |
| D | 0 | 16644 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6202 | 38 | 0.612706% |
| B | 6202 | 67 | 1.080297% |
| C | 6201 | 161 | 2.596355% |
| D | 6201 | 125 | 2.015804% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

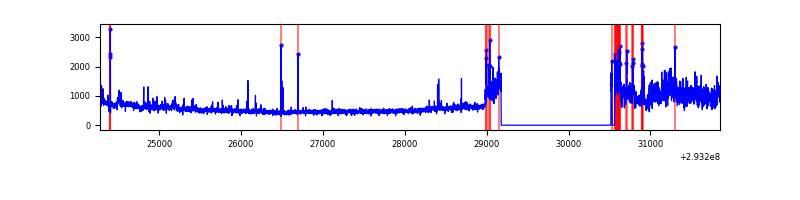

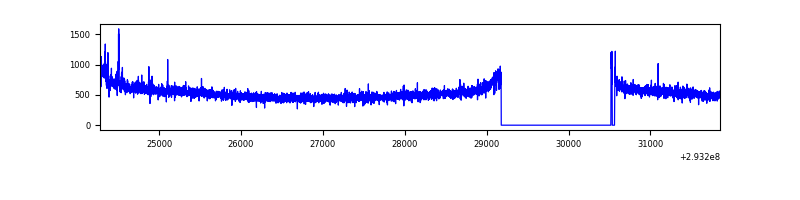

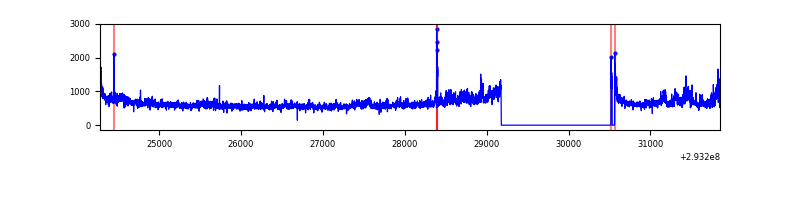

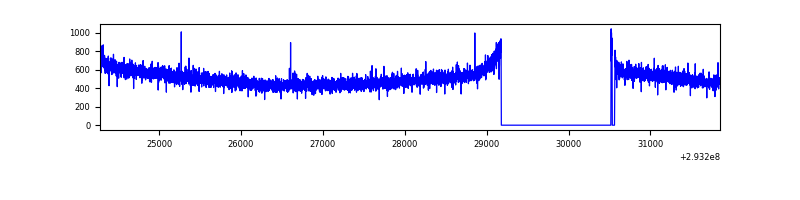

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6204 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7572 | 6204 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7571 | 6203 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7571 | 6203 | 36 | 36 | 0.48% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7944 | 43.52 | 818 | 803 | 164.1 |
| A | 0 | 226 | 7137 | 38.61 | 818 | 803 | 164.1 |
| A | 3 | 137 | 6217 | 33.0 | 818 | 803 | 164.1 |
| B | 0 | 190 | 22156 | 137.77 | 829 | 810 | 154.9 |
| B | 12 | 111 | 18026 | 111.12 | 829 | 810 | 154.9 |
| B | 11 | 111 | 15839 | 97.0 | 829 | 810 | 154.9 |
| C | 3 | 233 | 863847 | 4669.16 | 795 | 804 | 184.8 |
| C | 14 | 238 | 124089 | 666.99 | 795 | 804 | 184.8 |
| C | 7 | 220 | 8115 | 39.55 | 795 | 804 | 184.8 |
| D | 10 | 66 | 1115309 | 5850.46 | 794 | 771 | 190.5 |
| D | 7 | 96 | 39122 | 201.31 | 794 | 771 | 190.5 |
| D | 2 | 234 | 24081 | 122.36 | 794 | 771 | 190.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

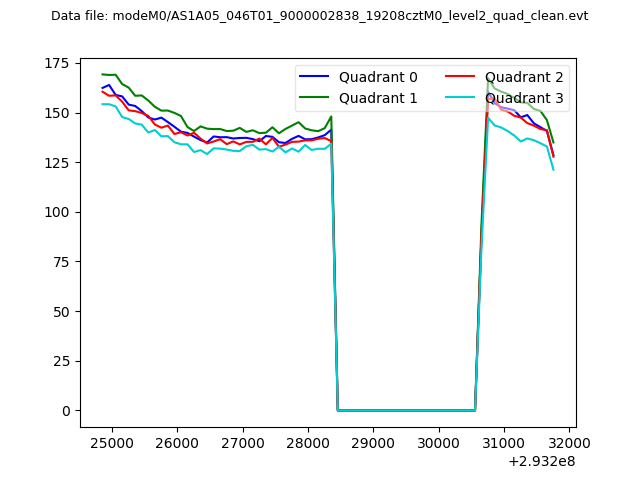

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

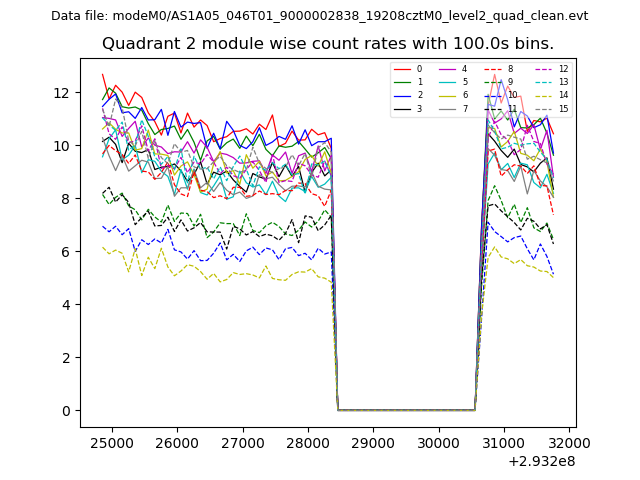

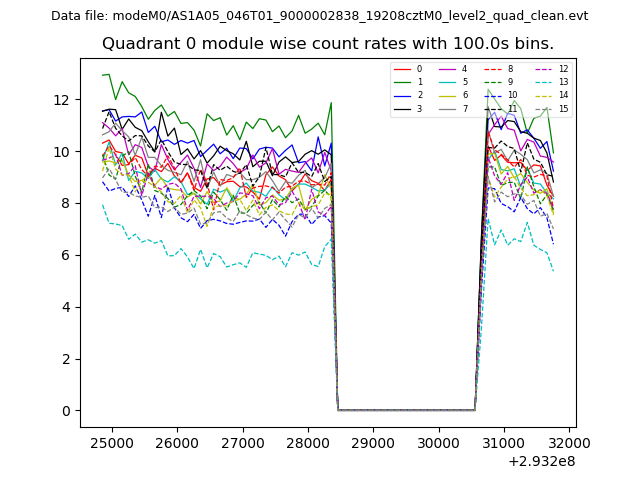

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

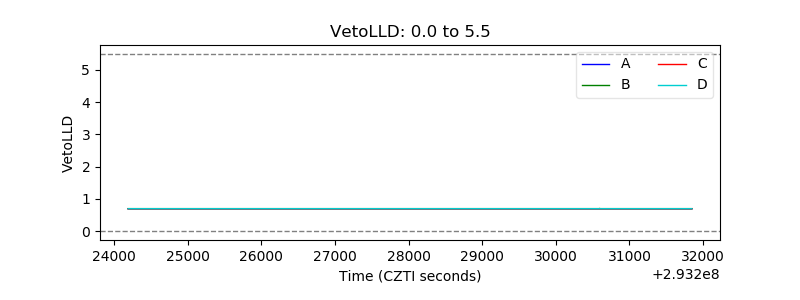

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
