| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_046T01_9000002838_19209cztM0_level2.evt | modeM0/AS1A05_046T01_9000002838_19209cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,587,840 | 104,304,960 |
| Size | 588.0 MB | 99.5 MB |
| Events in quadrant A | 3,135,117 | 684,786 |
| Events in quadrant B | 3,255,800 | 712,499 |
| Events in quadrant C | 4,380,036 | 678,332 |
| Events in quadrant D | 7,469,851 | 637,047 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13390 | 2 |
| B | 0 | 13703 | 2 |
| C | 0 | 18006 | 2 |
| D | 0 | 26671 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6395 | 47 | 0.734949% |
| B | 6395 | 77 | 1.204066% |
| C | 6395 | 162 | 2.533229% |
| D | 6395 | 928 | 14.511337% |

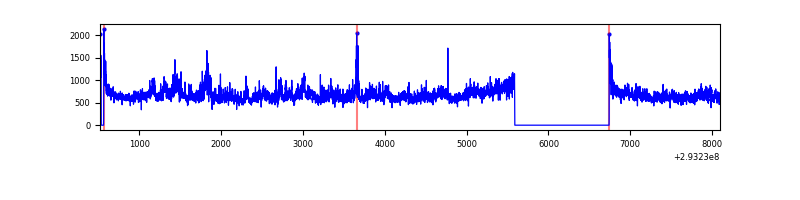

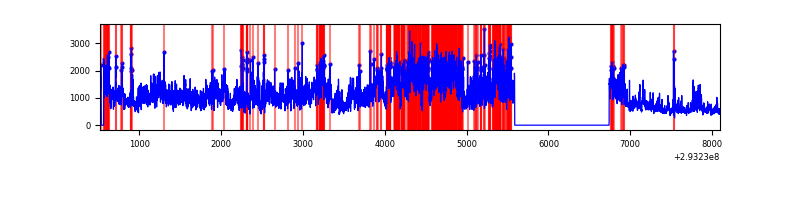

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

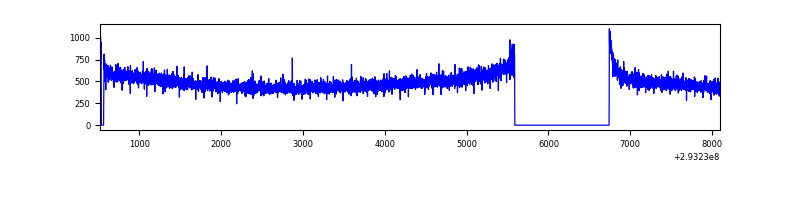

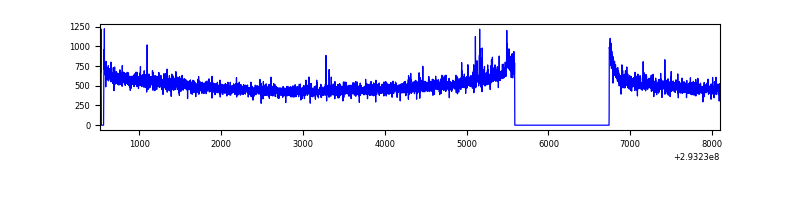

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6397 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7580 | 6397 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7580 | 6397 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7580 | 6397 | 522 | 522 | 6.89% | 8.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7847 | 42.77 | 813 | 798 | 164.8 |
| A | 0 | 226 | 6954 | 37.35 | 813 | 798 | 164.8 |
| A | 3 | 137 | 6324 | 33.53 | 813 | 798 | 164.8 |
| B | 12 | 111 | 18555 | 112.86 | 823 | 802 | 157.3 |
| B | 11 | 111 | 16477 | 99.65 | 823 | 802 | 157.3 |
| B | 0 | 189 | 14714 | 88.44 | 823 | 802 | 157.3 |
| C | 3 | 233 | 1161349 | 6280.03 | 792 | 801 | 184.8 |
| C | 14 | 238 | 123238 | 662.54 | 792 | 801 | 184.8 |
| C | 7 | 220 | 9712 | 48.22 | 792 | 801 | 184.8 |
| D | 10 | 66 | 4487067 | 24214.33 | 766 | 745 | 185.3 |
| D | 11 | 176 | 25257 | 132.3 | 766 | 745 | 185.3 |
| D | 2 | 234 | 24077 | 125.93 | 766 | 745 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

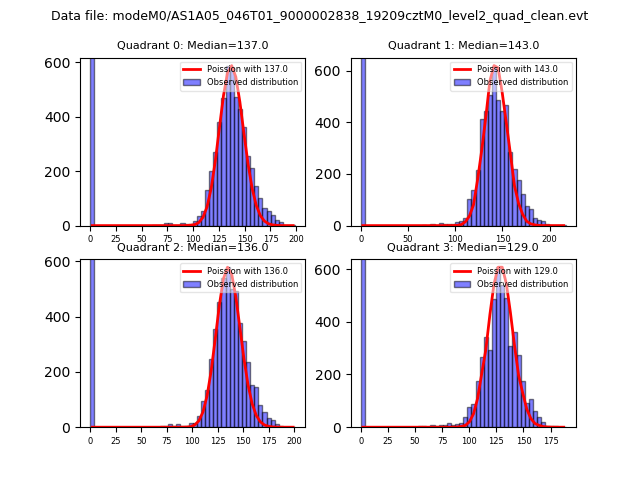

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

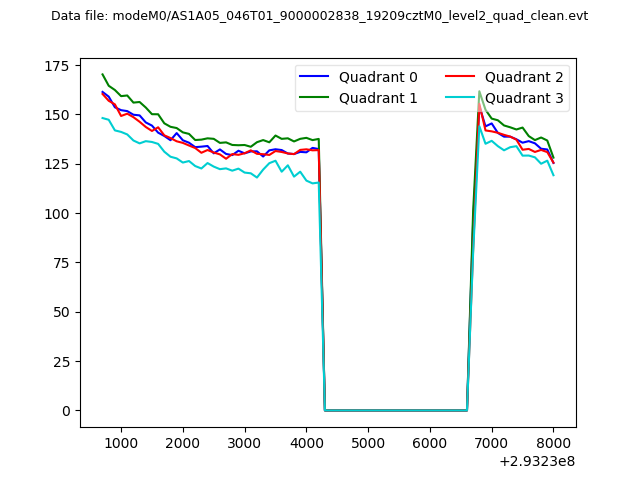

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

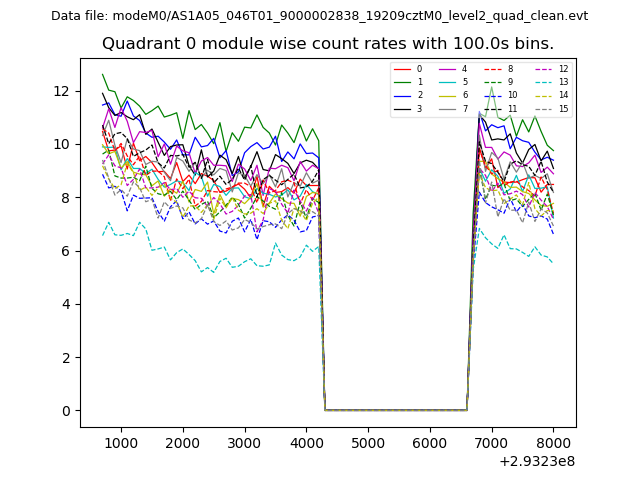

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

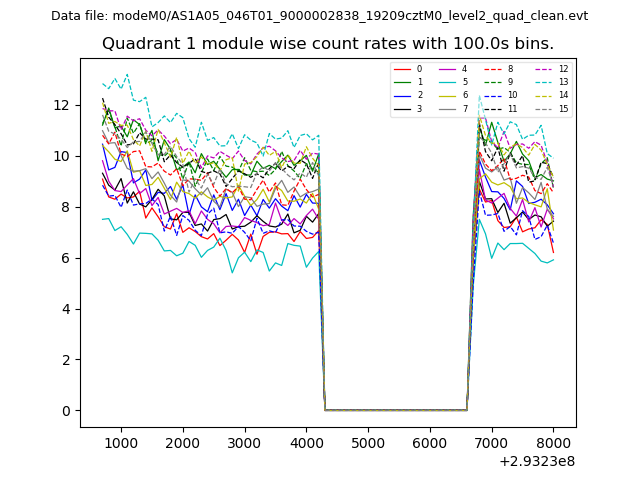

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

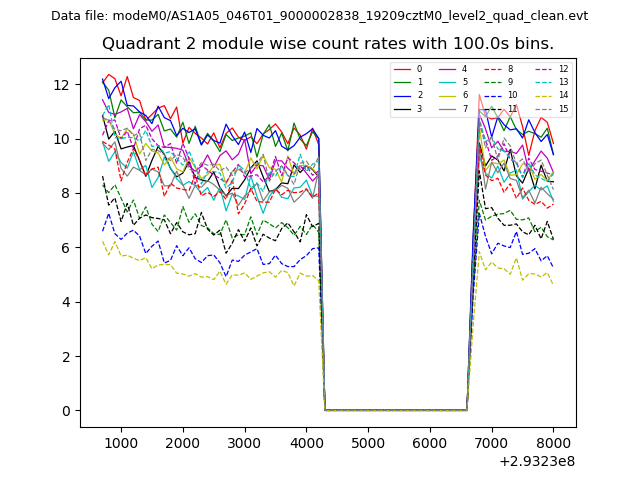

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

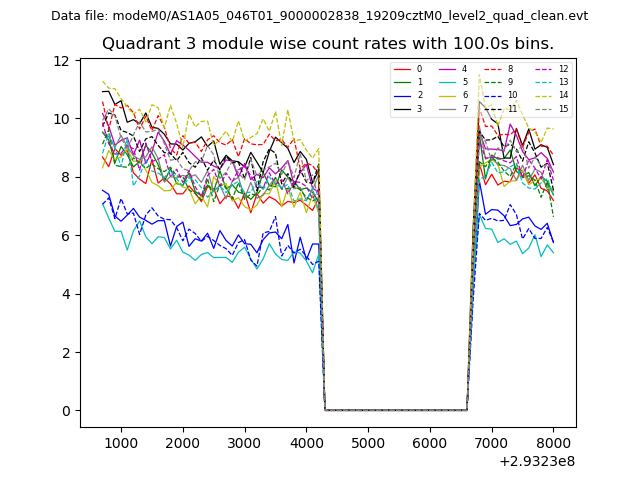

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

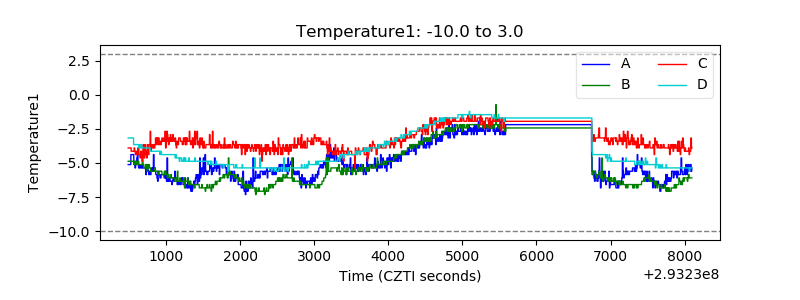

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

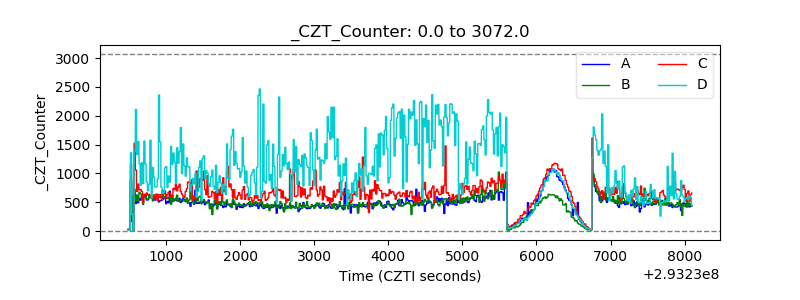

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

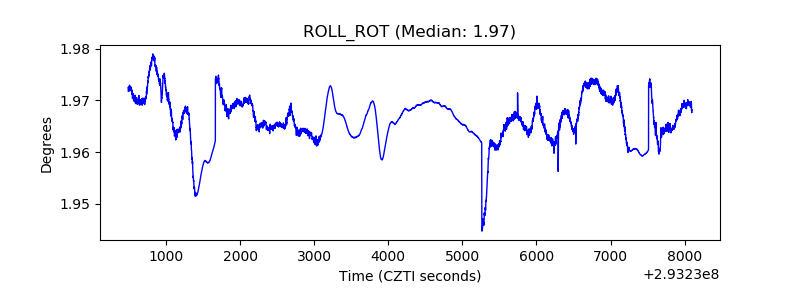

| _ROLL_ROT |  |

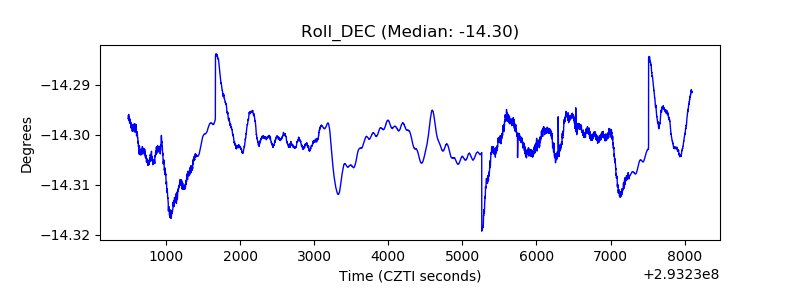

| _Roll_DEC |  |

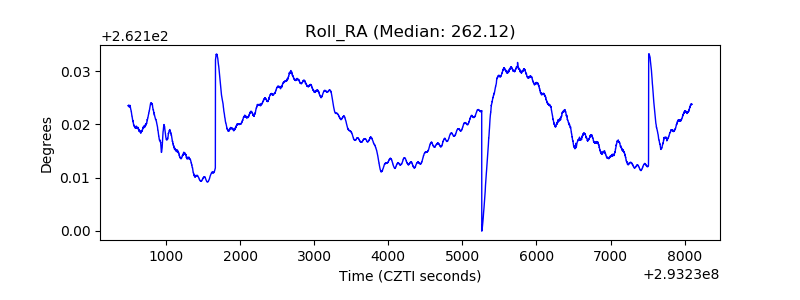

| _Roll_RA |  |

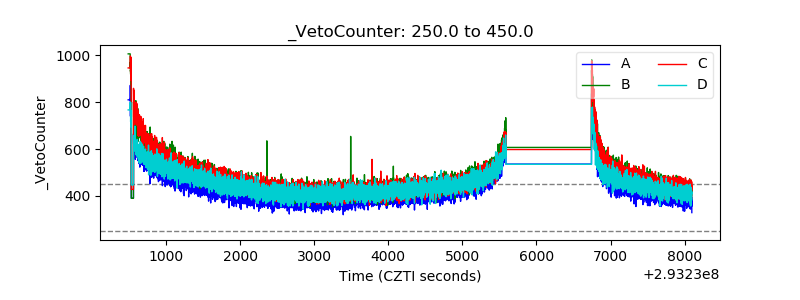

| Veto Counter |  |
