| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_007T06_9000002844_19227cztM0_level2.evt | modeM0/AS1A05_007T06_9000002844_19227cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,063,040 | 114,373,440 |
| Size | 511.2 MB | 109.1 MB |
| Events in quadrant A | 3,703,381 | 728,816 |
| Events in quadrant B | 3,622,176 | 755,051 |
| Events in quadrant C | 4,224,812 | 737,024 |
| Events in quadrant D | 4,159,933 | 705,740 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16502 | 3 |
| B | 0 | 16087 | 2 |
| C | 0 | 17606 | 2 |
| D | 0 | 17955 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7729 | 188 | 2.432397% |
| B | 7729 | 148 | 1.914866% |
| C | 7729 | 173 | 2.238323% |
| D | 7729 | 280 | 3.622720% |

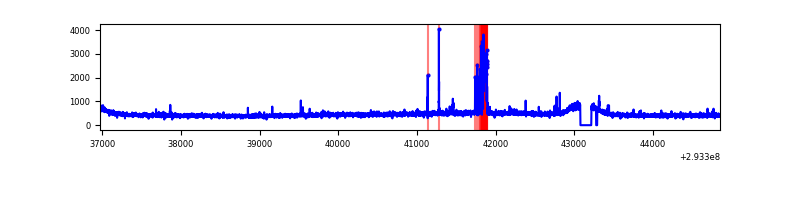

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7884 | 7731 | 56 | 56 | 0.71% | 0.72% |  |
| B | 7884 | 7731 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7884 | 7731 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7884 | 7731 | 206 | 206 | 2.61% | 2.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 235128 | 1282.4 | 899 | 876 | 182.7 |
| A | 13 | 254 | 9937 | 49.6 | 899 | 876 | 182.7 |
| A | 0 | 226 | 7834 | 38.09 | 899 | 876 | 182.7 |
| B | 12 | 111 | 21564 | 118.4 | 911 | 887 | 174.6 |
| B | 11 | 111 | 18645 | 101.68 | 911 | 887 | 174.6 |
| B | 3 | 64 | 17915 | 97.5 | 911 | 887 | 174.6 |
| C | 3 | 233 | 632638 | 3094.42 | 877 | 881 | 204.2 |
| C | 14 | 238 | 135806 | 660.88 | 877 | 881 | 204.2 |
| C | 0 | 207 | 35095 | 167.58 | 877 | 881 | 204.2 |
| D | 11 | 176 | 606043 | 2870.87 | 867 | 843 | 210.8 |
| D | 9 | 68 | 130725 | 616.12 | 867 | 843 | 210.8 |
| D | 10 | 199 | 53033 | 247.57 | 867 | 843 | 210.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

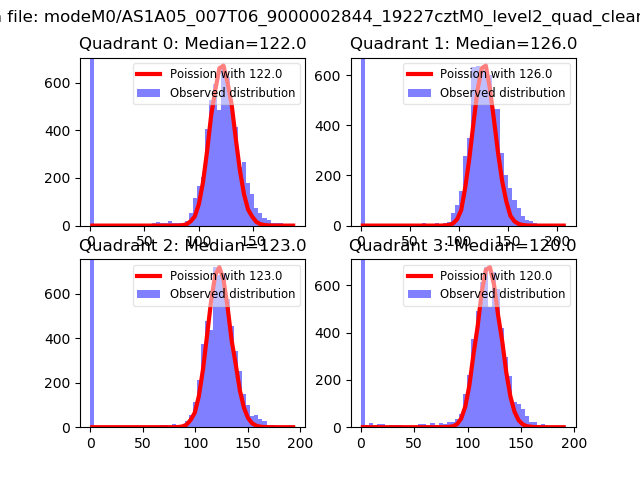

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

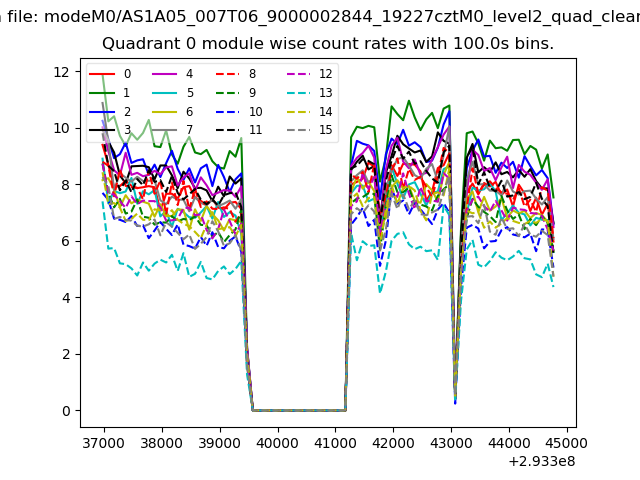

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

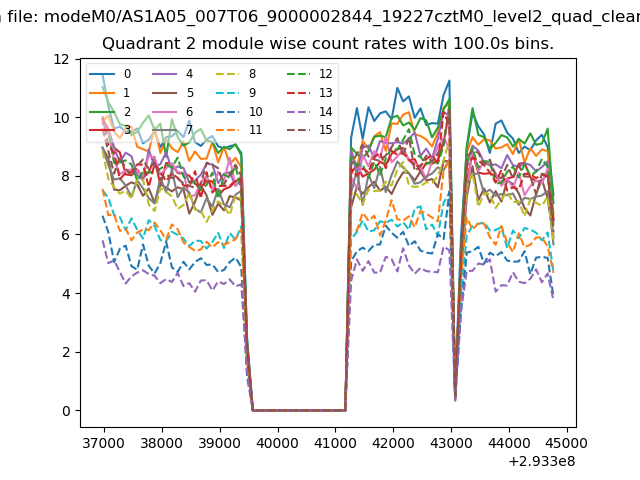

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

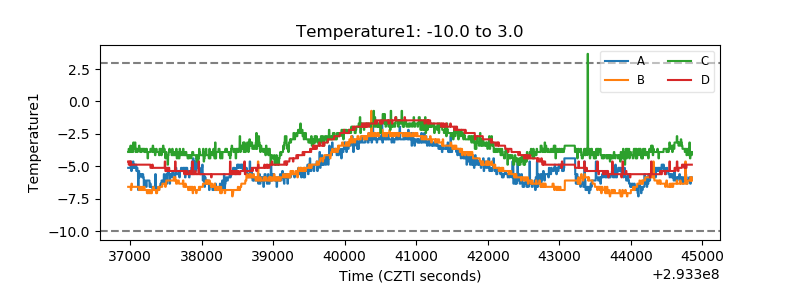

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

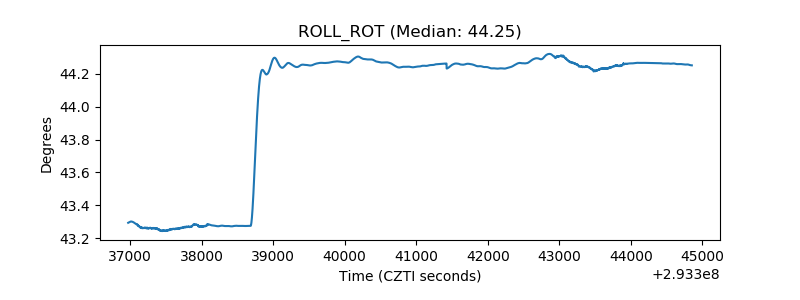

| _ROLL_ROT |  |

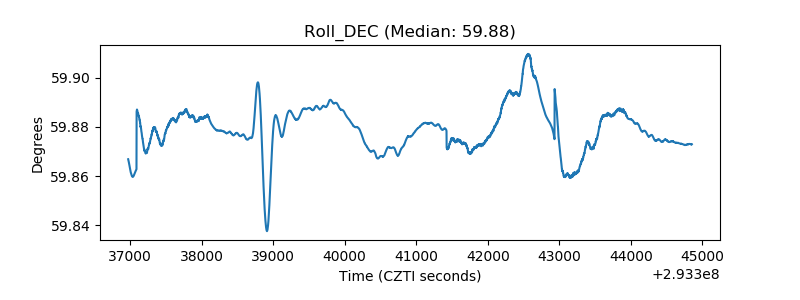

| _Roll_DEC |  |

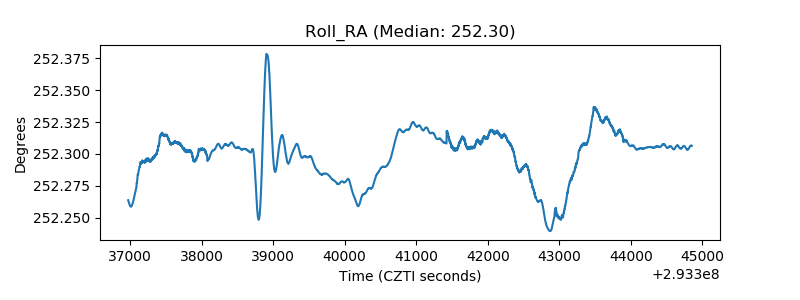

| _Roll_RA |  |
| Veto Counter |  |
