| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002846_19240cztM0_level2.evt | modeM0/AS1C04_001T01_9000002846_19240cztM0_level2_quad_clean.evt |
| Size (bytes) | 709,505,280 | 118,232,640 |
| Size | 676.6 MB | 112.8 MB |
| Events in quadrant A | 3,446,402 | 801,285 |
| Events in quadrant B | 3,890,109 | 816,657 |
| Events in quadrant C | 4,120,124 | 796,884 |
| Events in quadrant D | 9,516,802 | 637,128 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15663 | 2 |
| B | 0 | 16859 | 2 |
| C | 0 | 17434 | 2 |
| D | 0 | 33663 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7585 | 25 | 0.329598% |
| B | 7586 | 138 | 1.819141% |
| C | 7586 | 157 | 2.069602% |
| D | 7585 | 2303 | 30.362558% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8870 | 7587 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8871 | 7588 | 43 | 43 | 0.48% | 0.57% |  |
| C | 8871 | 7588 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8870 | 7586 | 1941 | 1941 | 21.88% | 25.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9593 | 48.1 | 894 | 874 | 181.3 |
| A | 0 | 226 | 7693 | 37.62 | 894 | 874 | 181.3 |
| A | 3 | 137 | 7183 | 34.8 | 894 | 874 | 181.3 |
| B | 4 | 80 | 165231 | 964.33 | 897 | 871 | 170.4 |
| B | 7 | 220 | 97591 | 567.47 | 897 | 871 | 170.4 |
| B | 6 | 36 | 61956 | 358.39 | 897 | 871 | 170.4 |
| C | 3 | 233 | 538536 | 2646.46 | 875 | 879 | 203.2 |
| C | 14 | 238 | 134832 | 659.35 | 875 | 879 | 203.2 |
| C | 0 | 207 | 35632 | 171.06 | 875 | 879 | 203.2 |
| D | 5 | 222 | 5859964 | 31562.37 | 767 | 745 | 185.6 |
| D | 1 | 52 | 587036 | 3158.23 | 767 | 745 | 185.6 |
| D | 11 | 176 | 86647 | 462.74 | 767 | 745 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

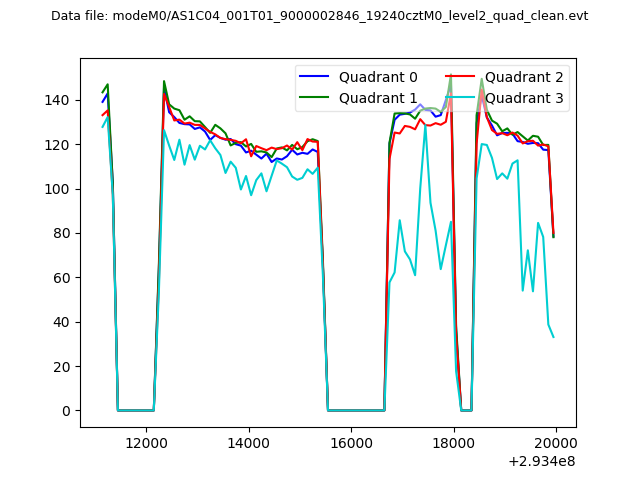

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
