| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T01_9000002848_19250cztM0_level2.evt | modeM0/AS1A05_115T01_9000002848_19250cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,836,160 | 116,392,320 |
| Size | 492.9 MB | 111.0 MB |
| Events in quadrant A | 3,564,138 | 776,183 |
| Events in quadrant B | 3,513,779 | 792,619 |
| Events in quadrant C | 3,789,503 | 767,440 |
| Events in quadrant D | 4,344,731 | 736,251 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14874 | 3 |
| B | 0 | 14579 | 2 |
| C | 0 | 15459 | 2 |
| D | 0 | 17285 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6481 | 110 | 1.697269% |
| B | 6481 | 129 | 1.990434% |
| C | 6482 | 197 | 3.039185% |
| D | 6482 | 285 | 4.396791% |

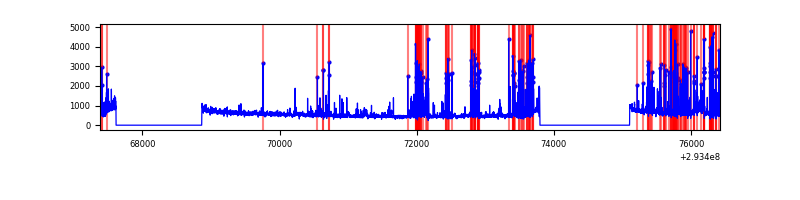

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9041 | 6481 | 3 | 3 | 0.03% | 0.05% |  |
| B | 9041 | 6483 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9042 | 6482 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9042 | 6482 | 167 | 167 | 1.85% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 64435 | 357.71 | 904 | 888 | 177.6 |
| A | 9 | 143 | 12772 | 66.9 | 904 | 888 | 177.6 |
| A | 11 | 29 | 9836 | 50.37 | 904 | 888 | 177.6 |
| B | 12 | 111 | 20022 | 115.07 | 894 | 874 | 166.4 |
| B | 0 | 214 | 17897 | 102.3 | 894 | 874 | 166.4 |
| B | 11 | 111 | 17709 | 101.17 | 894 | 874 | 166.4 |
| C | 3 | 233 | 206599 | 1012.48 | 882 | 891 | 203.2 |
| C | 14 | 238 | 138346 | 676.55 | 882 | 891 | 203.2 |
| C | 9 | 54 | 6102 | 25.65 | 882 | 891 | 203.2 |
| D | 7 | 238 | 507415 | 2375.0 | 884 | 860 | 213.3 |
| D | 1 | 52 | 436873 | 2044.26 | 884 | 860 | 213.3 |
| D | 5 | 222 | 62082 | 287.04 | 884 | 860 | 213.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

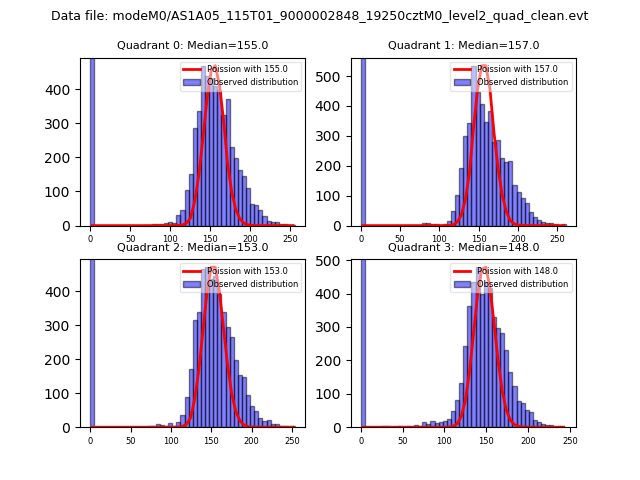

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

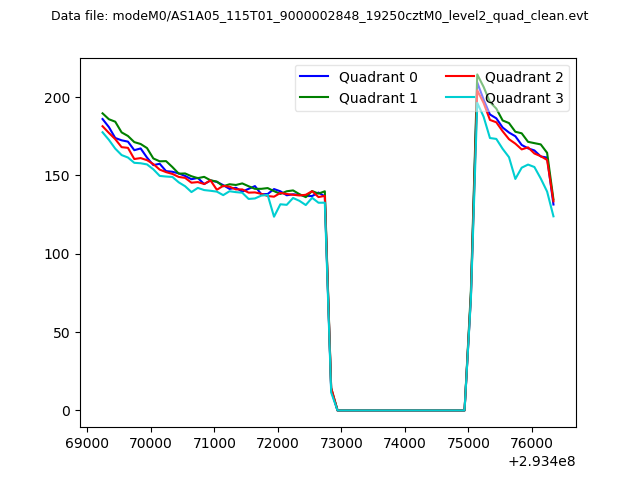

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

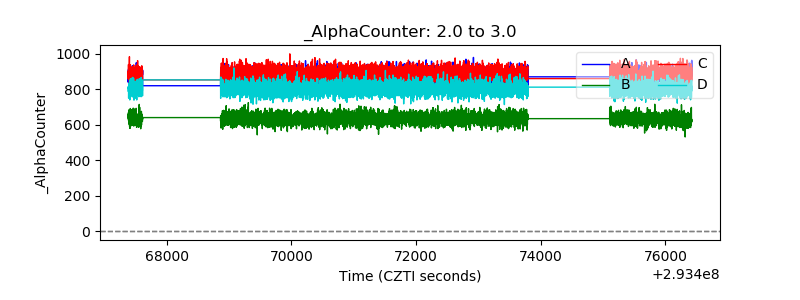

| Alpha Counter |  |
| _CPM_Rate |  |

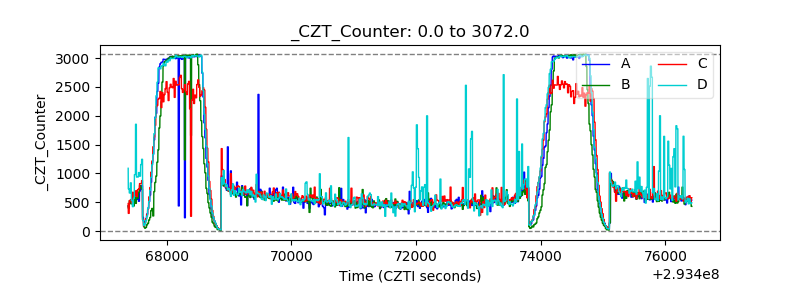

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

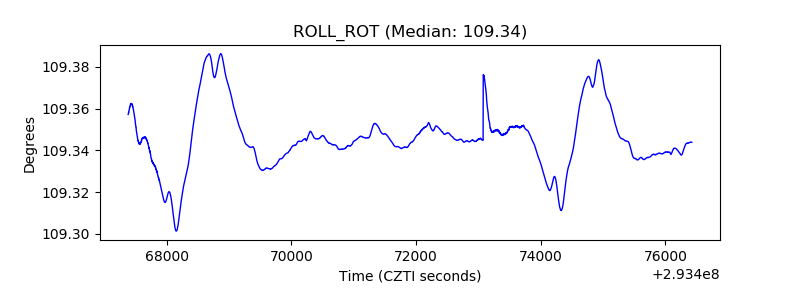

| _ROLL_ROT |  |
| _Roll_DEC |  |

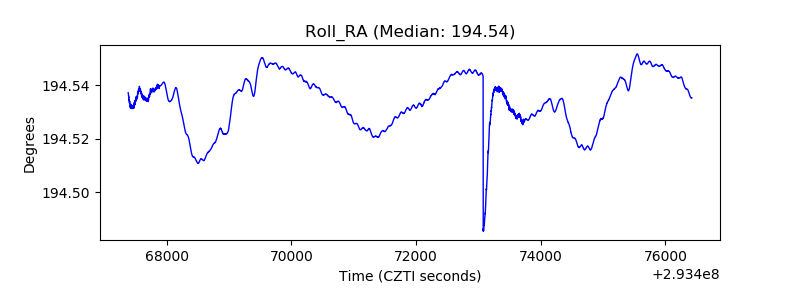

| _Roll_RA |  |

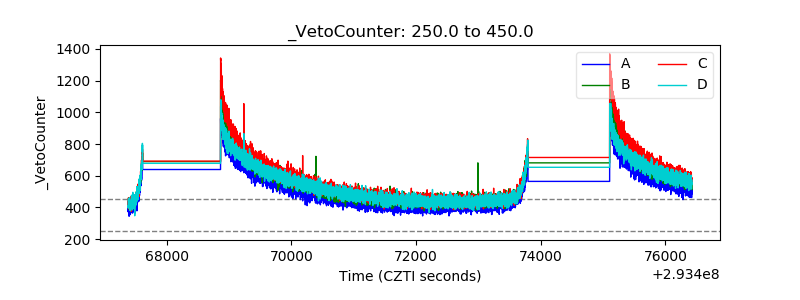

| Veto Counter |  |
