| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T01_9000002848_19253cztM0_level2.evt | modeM0/AS1A05_115T01_9000002848_19253cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,835,840 | 92,753,280 |
| Size | 437.6 MB | 88.5 MB |
| Events in quadrant A | 3,198,424 | 591,644 |
| Events in quadrant B | 3,201,904 | 607,647 |
| Events in quadrant C | 3,589,400 | 583,108 |
| Events in quadrant D | 3,462,679 | 571,367 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13789 | 2 |
| B | 0 | 13665 | 3 |
| C | 0 | 14724 | 2 |
| D | 0 | 14651 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6522 | 43 | 0.659307% |
| B | 6521 | 60 | 0.920104% |
| C | 6521 | 124 | 1.901549% |
| D | 6521 | 78 | 1.196136% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7546 | 6522 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7546 | 6522 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7546 | 6522 | 31 | 31 | 0.41% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 26605 | 156.51 | 817 | 799 | 164.9 |
| A | 11 | 29 | 21998 | 128.57 | 817 | 799 | 164.9 |
| A | 13 | 254 | 7314 | 39.51 | 817 | 799 | 164.9 |
| B | 12 | 111 | 19064 | 116.55 | 815 | 795 | 156.7 |
| B | 11 | 111 | 16687 | 101.39 | 815 | 795 | 156.7 |
| B | 14 | 111 | 15261 | 92.29 | 815 | 795 | 156.7 |
| C | 3 | 233 | 236161 | 1261.28 | 795 | 804 | 186.6 |
| C | 14 | 238 | 123501 | 657.54 | 795 | 804 | 186.6 |
| C | 6 | 96 | 113853 | 605.83 | 795 | 804 | 186.6 |
| D | 5 | 222 | 180174 | 923.16 | 802 | 782 | 194.3 |
| D | 1 | 52 | 139677 | 714.76 | 802 | 782 | 194.3 |
| D | 7 | 238 | 91132 | 464.95 | 802 | 782 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

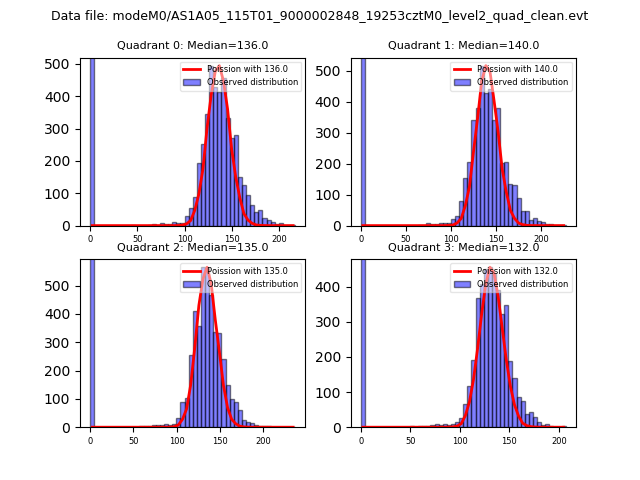

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

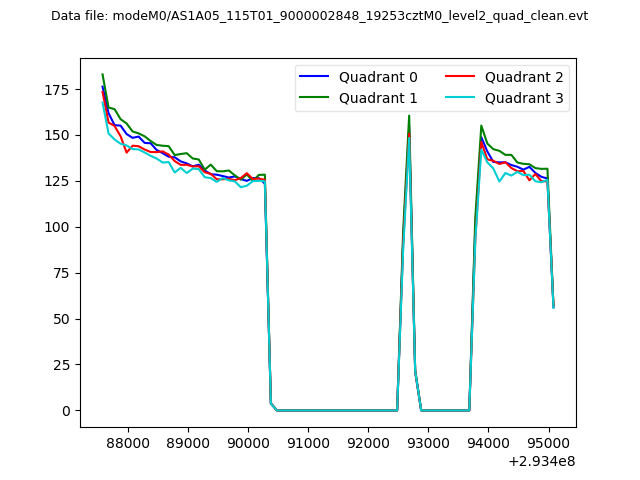

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
