| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T01_9000002848_19259cztM0_level2.evt | modeM0/AS1A05_115T01_9000002848_19259cztM0_level2_quad_clean.evt |
| Size (bytes) | 858,605,760 | 139,043,520 |
| Size | 818.8 MB | 132.6 MB |
| Events in quadrant A | 6,132,549 | 842,302 |
| Events in quadrant B | 5,981,731 | 857,086 |
| Events in quadrant C | 6,234,278 | 821,104 |
| Events in quadrant D | 6,789,613 | 807,693 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26381 | 3 |
| B | 0 | 25930 | 3 |
| C | 0 | 26374 | 3 |
| D | 0 | 28896 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12767 | 102 | 0.798935% |
| B | 12768 | 116 | 0.908521% |
| C | 12768 | 136 | 1.065163% |
| D | 12768 | 164 | 1.284461% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14147 | 12767 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14148 | 12768 | 2 | 2 | 0.01% | 0.02% |  |
| C | 14148 | 12768 | 4 | 4 | 0.03% | 0.03% |  |
| D | 14148 | 12769 | 73 | 73 | 0.52% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 247 | 125847 | 402.84 | 1528 | 1493 | 308.7 |
| A | 8 | 205 | 104833 | 334.76 | 1528 | 1493 | 308.7 |
| A | 13 | 254 | 17363 | 51.41 | 1528 | 1493 | 308.7 |
| B | 12 | 111 | 37444 | 121.67 | 1522 | 1481 | 295.6 |
| B | 11 | 111 | 33154 | 107.16 | 1522 | 1481 | 295.6 |
| B | 14 | 111 | 30730 | 98.96 | 1522 | 1481 | 295.6 |
| C | 3 | 233 | 245659 | 709.17 | 1467 | 1476 | 344.3 |
| C | 14 | 238 | 225694 | 651.19 | 1467 | 1476 | 344.3 |
| C | 8 | 128 | 17377 | 46.18 | 1467 | 1476 | 344.3 |
| D | 1 | 52 | 989670 | 2747.78 | 1479 | 1436 | 359.6 |
| D | 11 | 176 | 125984 | 346.31 | 1479 | 1436 | 359.6 |
| D | 2 | 234 | 49348 | 133.22 | 1479 | 1436 | 359.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

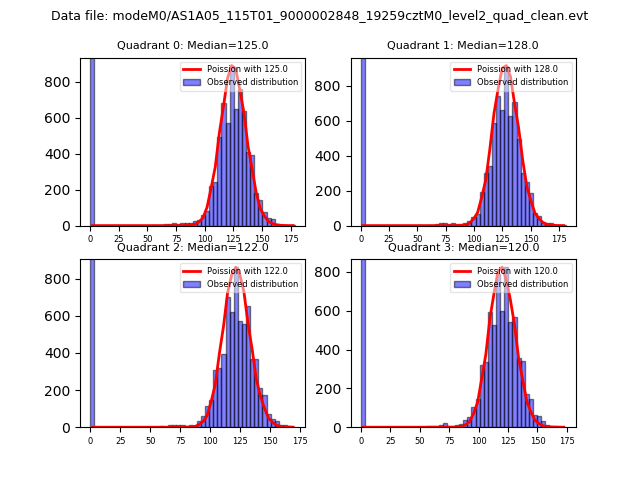

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

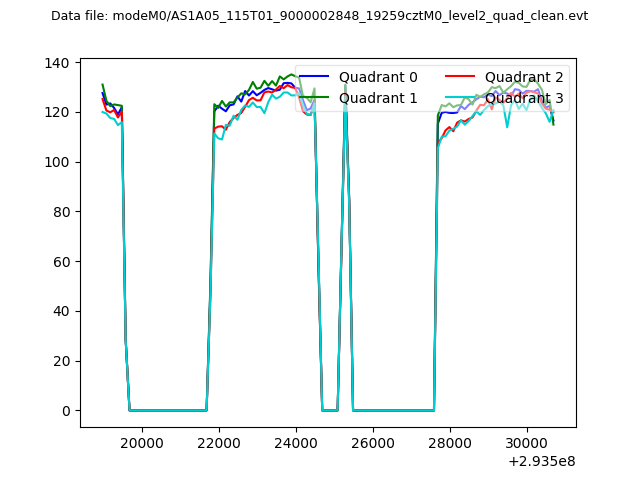

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

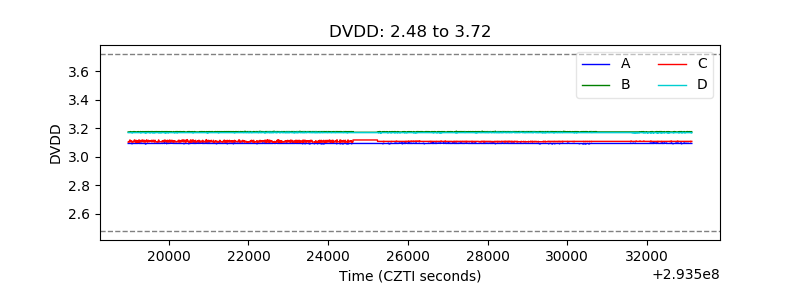

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

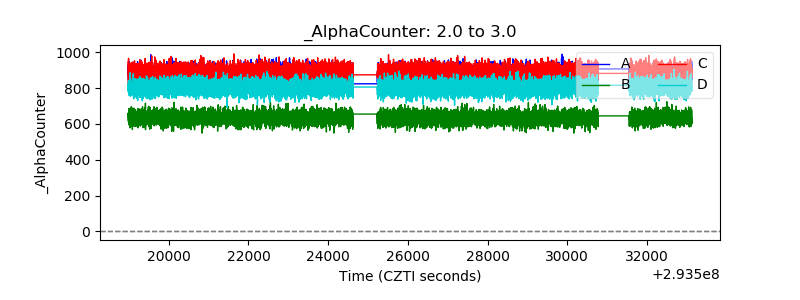

| Alpha Counter |  |

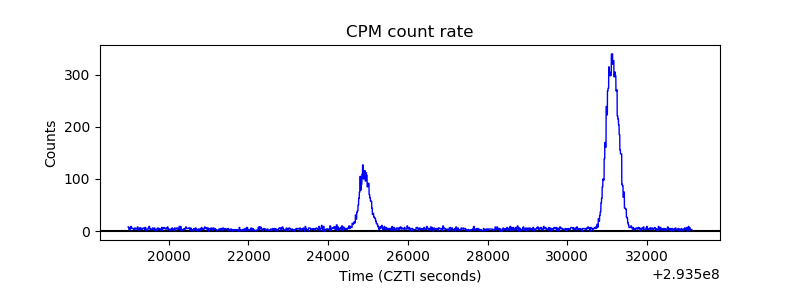

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

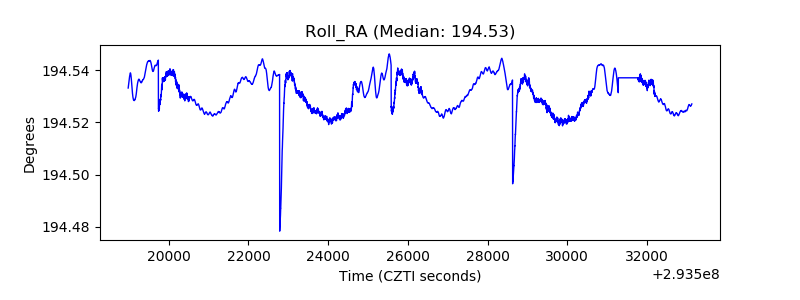

| _Roll_RA |  |

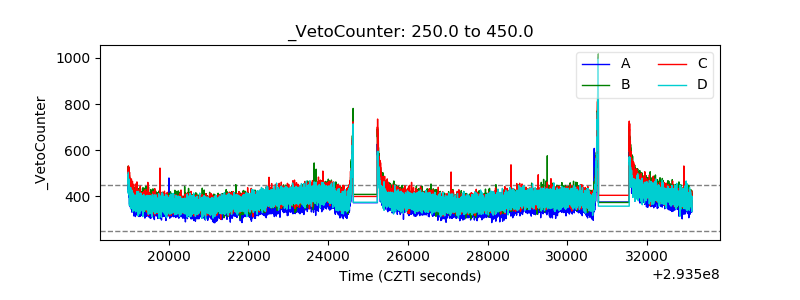

| Veto Counter |  |
