| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_107T01_9000002852_19270cztM0_level2.evt | modeM0/AS1A05_107T01_9000002852_19270cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,207,360 | 113,448,960 |
| Size | 583.8 MB | 108.2 MB |
| Events in quadrant A | 3,794,384 | 726,886 |
| Events in quadrant B | 3,877,233 | 744,092 |
| Events in quadrant C | 3,916,464 | 728,174 |
| Events in quadrant D | 6,419,951 | 690,190 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16696 | 2 |
| B | 0 | 16760 | 2 |
| C | 0 | 16784 | 2 |
| D | 0 | 24578 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7860 | 113 | 1.437659% |
| B | 7861 | 175 | 2.226180% |
| C | 7861 | 212 | 2.696858% |
| D | 7861 | 638 | 8.116016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8330 | 7863 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8331 | 7864 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8331 | 7864 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8331 | 7864 | 566 | 566 | 6.79% | 7.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 69083 | 343.77 | 966 | 943 | 198.2 |
| A | 13 | 254 | 9498 | 43.16 | 966 | 943 | 198.2 |
| A | 0 | 226 | 8379 | 37.51 | 966 | 943 | 198.2 |
| B | 0 | 229 | 45175 | 235.92 | 968 | 942 | 187.5 |
| B | 12 | 111 | 23561 | 120.64 | 968 | 942 | 187.5 |
| B | 11 | 111 | 20268 | 103.08 | 968 | 942 | 187.5 |
| C | 14 | 238 | 142991 | 640.47 | 939 | 946 | 221.8 |
| C | 3 | 233 | 90968 | 405.9 | 939 | 946 | 221.8 |
| C | 3 | 247 | 11064 | 45.62 | 939 | 946 | 221.8 |
| D | 7 | 238 | 2263302 | 9941.27 | 922 | 896 | 227.6 |
| D | 1 | 52 | 494083 | 2167.12 | 922 | 896 | 227.6 |
| D | 13 | 138 | 144009 | 628.86 | 922 | 896 | 227.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

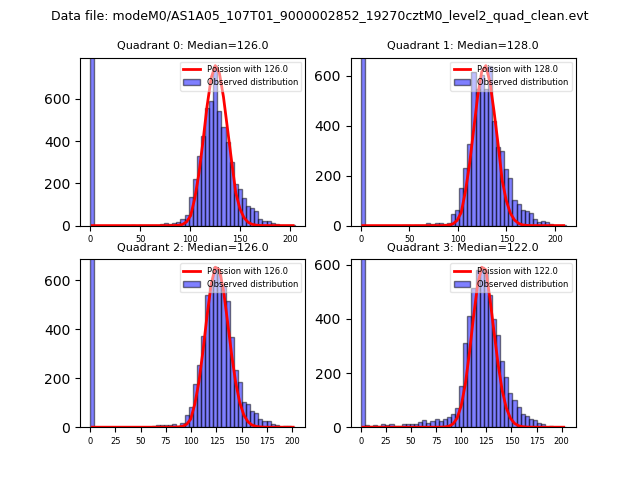

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

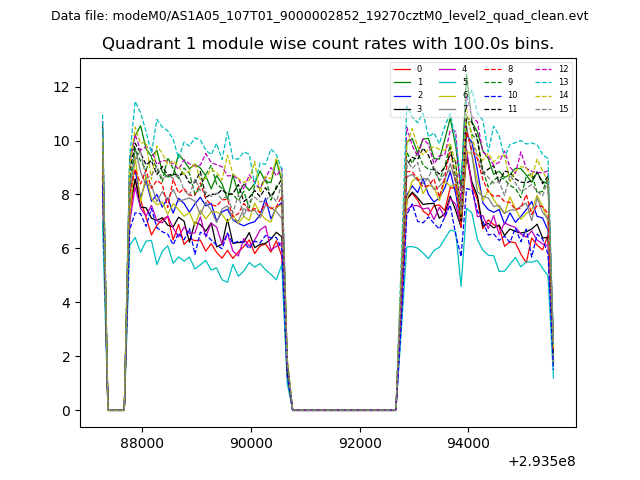

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

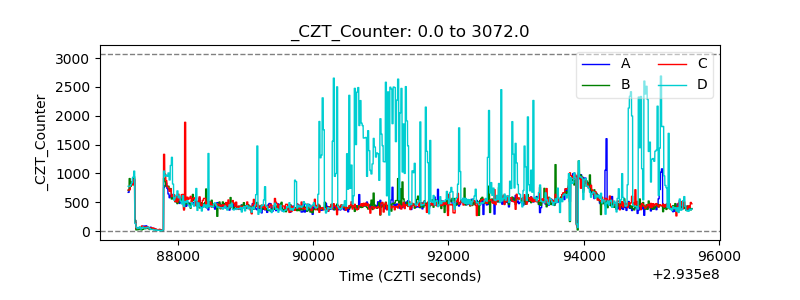

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

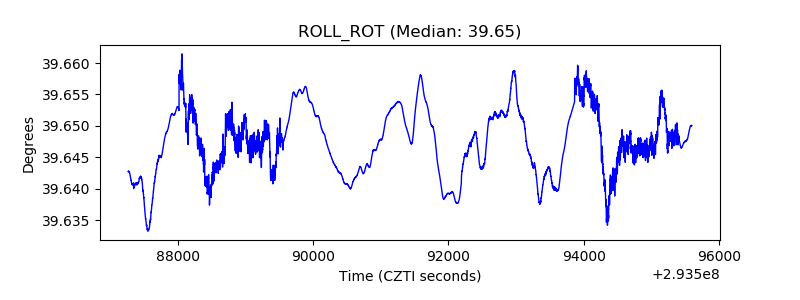

| _ROLL_ROT |  |

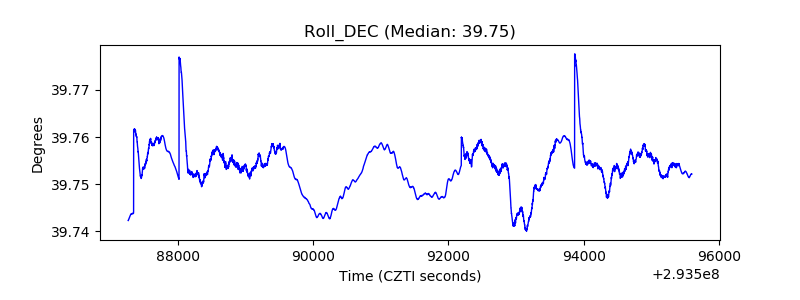

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
