| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_107T01_9000002852_19271cztM0_level2.evt | modeM0/AS1A05_107T01_9000002852_19271cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,647,040 | 109,918,080 |
| Size | 572.8 MB | 104.8 MB |
| Events in quadrant A | 3,786,324 | 700,442 |
| Events in quadrant B | 3,732,081 | 720,668 |
| Events in quadrant C | 3,761,947 | 703,305 |
| Events in quadrant D | 6,384,141 | 664,713 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16506 | 2 |
| B | 0 | 16377 | 2 |
| C | 0 | 16274 | 2 |
| D | 0 | 24376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7755 | 131 | 1.689233% |
| B | 7755 | 171 | 2.205029% |
| C | 7755 | 183 | 2.359768% |
| D | 7755 | 789 | 10.174081% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8040 | 7756 | 6 | 6 | 0.07% | 0.08% |  |
| B | 8040 | 7755 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8040 | 7756 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8040 | 7756 | 615 | 615 | 7.65% | 7.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 189374 | 994.26 | 929 | 909 | 189.6 |
| A | 13 | 254 | 10082 | 48.39 | 929 | 909 | 189.6 |
| A | 0 | 226 | 7973 | 37.27 | 929 | 909 | 189.6 |
| B | 0 | 229 | 57074 | 311.1 | 932 | 908 | 180.5 |
| B | 12 | 111 | 22160 | 117.71 | 932 | 908 | 180.5 |
| B | 11 | 111 | 19541 | 103.21 | 932 | 908 | 180.5 |
| C | 14 | 238 | 139556 | 656.56 | 901 | 908 | 211.2 |
| C | 3 | 233 | 94737 | 444.32 | 901 | 908 | 211.2 |
| C | 13 | 61 | 6428 | 26.14 | 901 | 908 | 211.2 |
| D | 7 | 238 | 1403601 | 6480.89 | 881 | 853 | 216.4 |
| D | 1 | 52 | 1375258 | 6349.94 | 881 | 853 | 216.4 |
| D | 12 | 218 | 132957 | 610.34 | 881 | 853 | 216.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

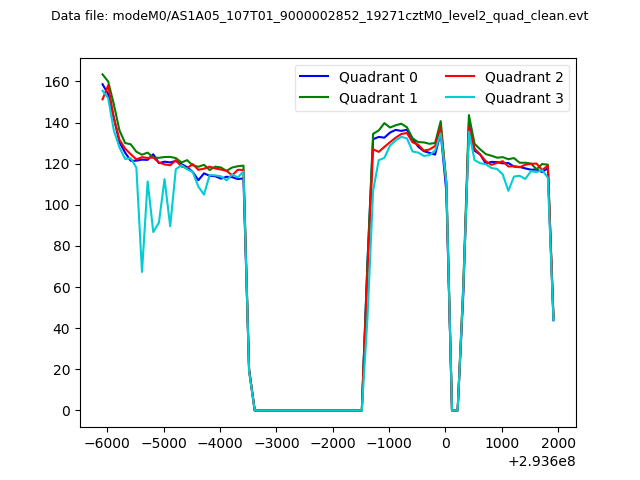

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

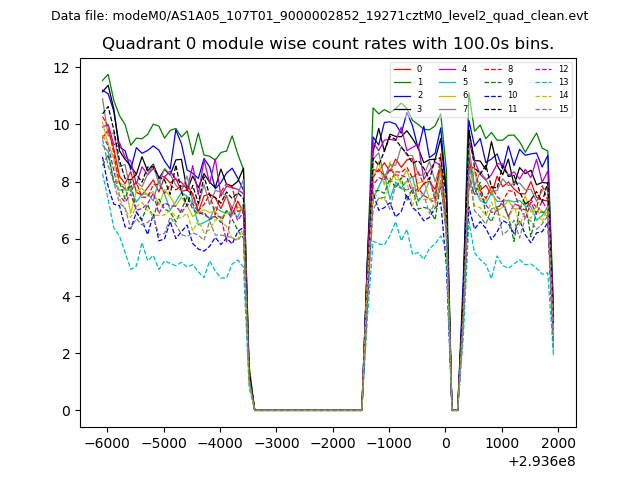

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
