| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_107T01_9000002852_19277cztM0_level2.evt | modeM0/AS1A05_107T01_9000002852_19277cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,207,040 | 67,152,960 |
| Size | 442.7 MB | 64.0 MB |
| Events in quadrant A | 3,293,392 | 401,453 |
| Events in quadrant B | 3,398,920 | 404,210 |
| Events in quadrant C | 3,324,169 | 394,499 |
| Events in quadrant D | 3,606,834 | 385,835 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13958 | 2 |
| B | 0 | 14209 | 2 |
| C | 0 | 13905 | 2 |
| D | 0 | 14723 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6417 | 86 | 1.340190% |
| B | 6417 | 108 | 1.683029% |
| C | 6417 | 99 | 1.542777% |
| D | 6417 | 118 | 1.838866% |

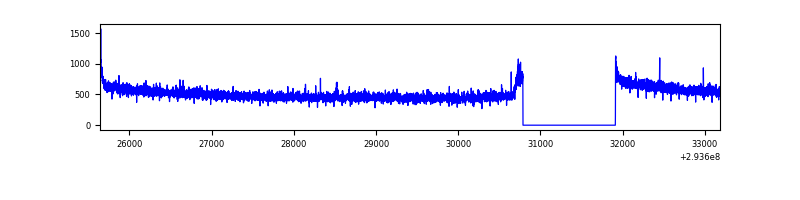

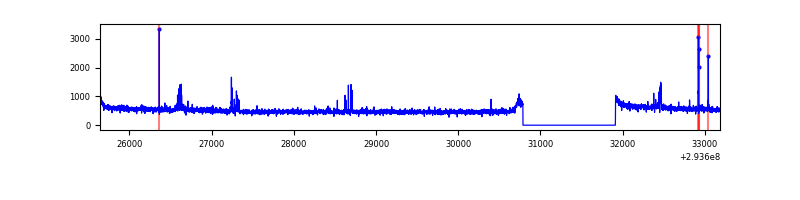

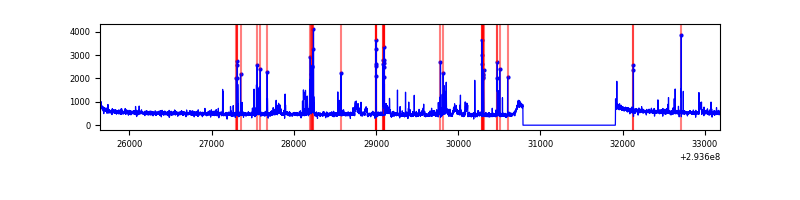

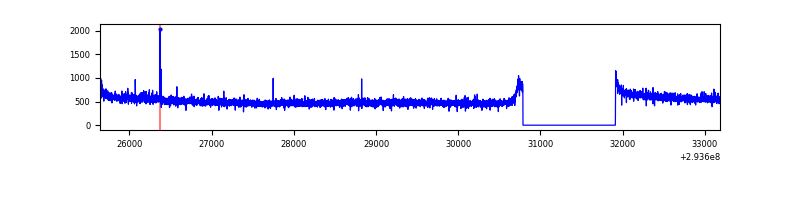

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7542 | 6417 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7542 | 6417 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7542 | 6417 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7542 | 6417 | 44 | 44 | 0.58% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9495 | 51.34 | 851 | 836 | 168.7 |
| A | 0 | 226 | 7475 | 39.36 | 851 | 836 | 168.7 |
| A | 3 | 137 | 6797 | 35.34 | 851 | 836 | 168.7 |
| B | 0 | 230 | 57295 | 358.85 | 840 | 823 | 157.4 |
| B | 3 | 64 | 21631 | 132.22 | 840 | 823 | 157.4 |
| B | 12 | 111 | 19015 | 115.6 | 840 | 823 | 157.4 |
| C | 14 | 238 | 129452 | 687.09 | 813 | 821 | 187.2 |
| C | 9 | 54 | 13380 | 67.08 | 813 | 821 | 187.2 |
| C | 3 | 233 | 6822 | 32.05 | 813 | 821 | 187.2 |
| D | 1 | 52 | 258605 | 1275.86 | 826 | 801 | 202.1 |
| D | 13 | 138 | 101290 | 497.32 | 826 | 801 | 202.1 |
| D | 10 | 66 | 56181 | 274.07 | 826 | 801 | 202.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

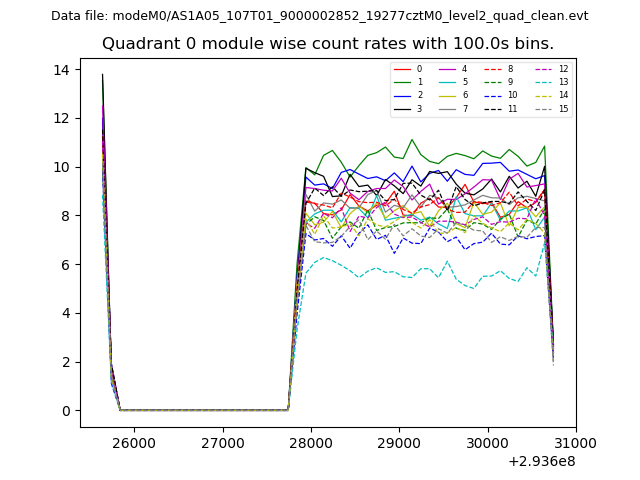

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

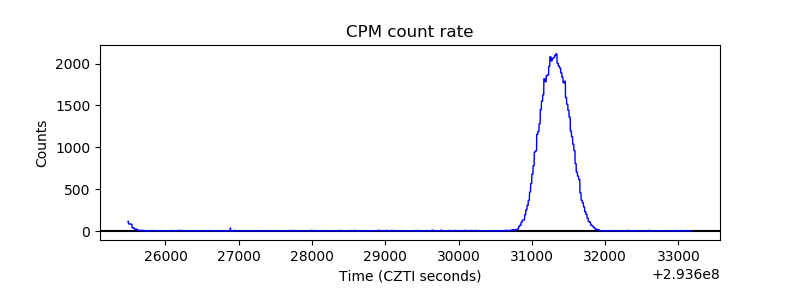

| _CPM_Rate |  |

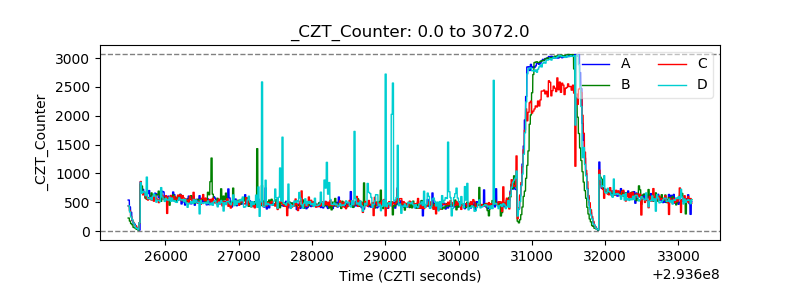

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

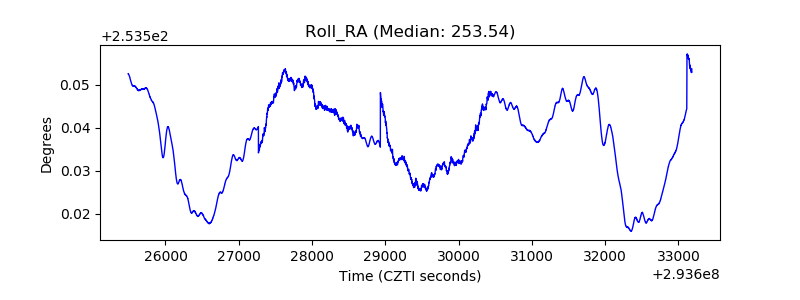

| _Roll_RA |  |
| Veto Counter |  |
