| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19303cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19303cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,138,240 | 77,883,840 |
| Size | 523.7 MB | 74.3 MB |
| Events in quadrant A | 3,915,852 | 471,855 |
| Events in quadrant B | 3,580,369 | 479,489 |
| Events in quadrant C | 3,549,381 | 457,707 |
| Events in quadrant D | 5,084,273 | 435,455 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16499 | 2 |
| B | 0 | 15147 | 2 |
| C | 0 | 15180 | 2 |
| D | 0 | 20036 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7384 | 123 | 1.665764% |
| B | 7384 | 127 | 1.719935% |
| C | 7384 | 107 | 1.449079% |
| D | 7384 | 448 | 6.067172% |

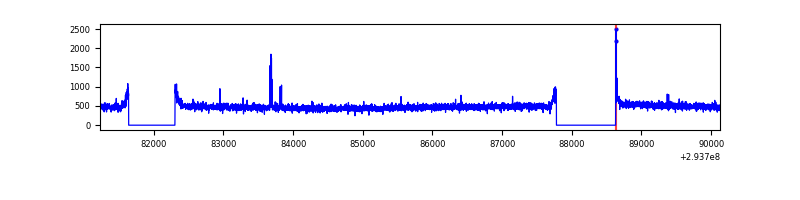

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8899 | 7384 | 11 | 11 | 0.12% | 0.15% |  |
| B | 8899 | 7384 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8899 | 7385 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8899 | 7385 | 306 | 306 | 3.44% | 4.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 420218 | 2282.08 | 903 | 883 | 183.8 |
| A | 9 | 143 | 9540 | 47.11 | 903 | 883 | 183.8 |
| A | 0 | 226 | 7696 | 37.08 | 903 | 883 | 183.8 |
| B | 0 | 229 | 41141 | 230.59 | 901 | 878 | 174.6 |
| B | 12 | 111 | 22093 | 121.5 | 901 | 878 | 174.6 |
| B | 11 | 111 | 19358 | 105.84 | 901 | 878 | 174.6 |
| C | 14 | 238 | 134581 | 656.75 | 865 | 871 | 203.6 |
| C | 9 | 54 | 27001 | 128.34 | 865 | 871 | 203.6 |
| C | 13 | 61 | 6031 | 25.34 | 865 | 871 | 203.6 |
| D | 1 | 52 | 927424 | 4367.14 | 863 | 835 | 212.2 |
| D | 11 | 176 | 445602 | 2096.25 | 863 | 835 | 212.2 |
| D | 7 | 238 | 330881 | 1555.55 | 863 | 835 | 212.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

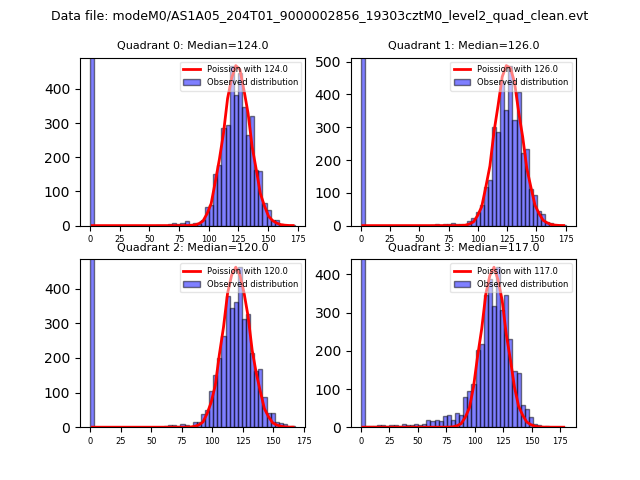

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

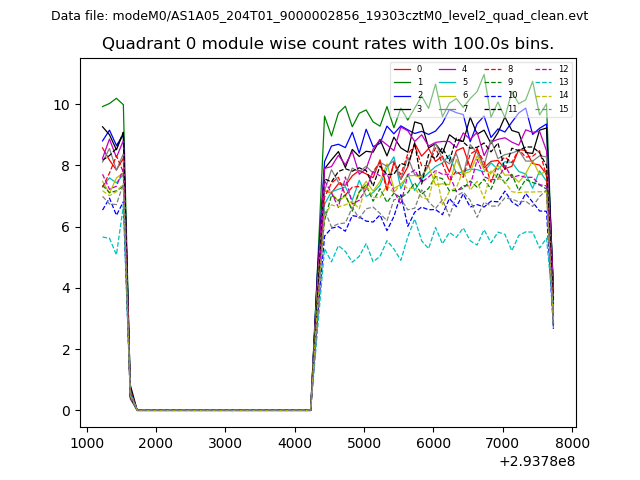

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

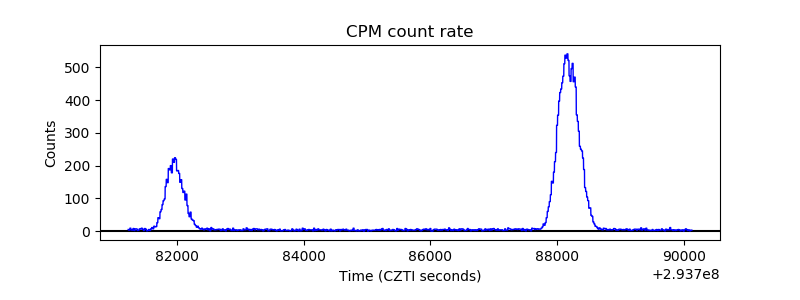

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

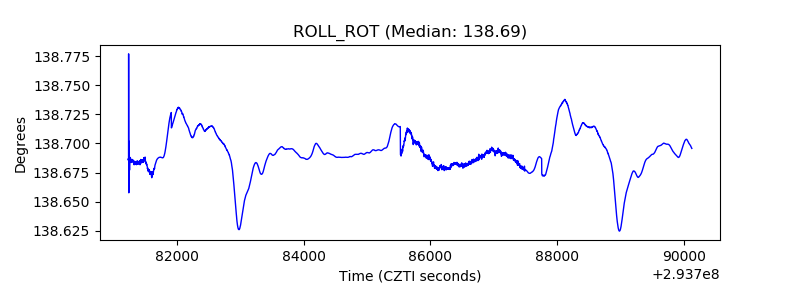

| _ROLL_ROT |  |
| _Roll_DEC |  |

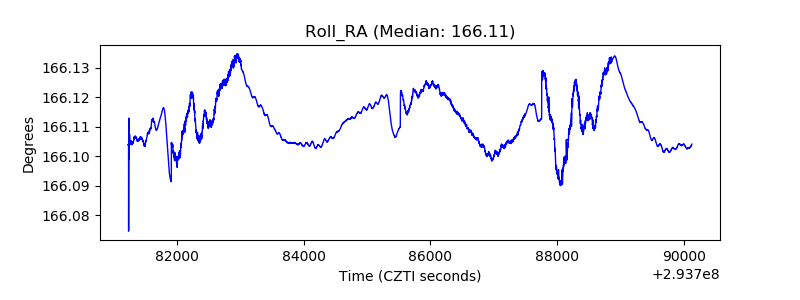

| _Roll_RA |  |
| Veto Counter |  |
