| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19313cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19313cztM0_level2_quad_clean.evt |
| Size (bytes) | 779,230,080 | 105,186,240 |
| Size | 743.1 MB | 100.3 MB |
| Events in quadrant A | 3,556,423 | 706,270 |
| Events in quadrant B | 3,686,895 | 711,457 |
| Events in quadrant C | 3,696,692 | 686,289 |
| Events in quadrant D | 12,142,234 | 548,881 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15783 | 3 |
| B | 0 | 16003 | 3 |
| C | 0 | 15982 | 3 |
| D | 0 | 41385 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7631 | 53 | 0.694535% |
| B | 7632 | 96 | 1.257862% |
| C | 7632 | 129 | 1.690252% |
| D | 7632 | 2778 | 36.399371% |

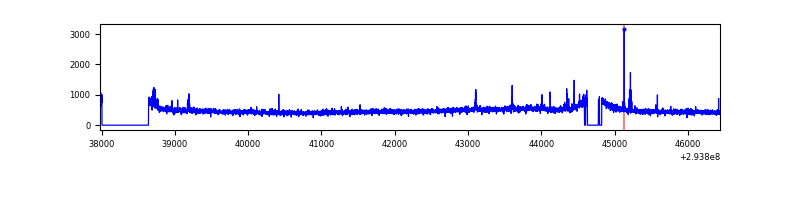

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8461 | 7635 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8462 | 7636 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8462 | 7636 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8462 | 7635 | 2280 | 2280 | 26.94% | 29.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 12954 | 65.0 | 916 | 897 | 185.5 |
| A | 11 | 29 | 12583 | 63.0 | 916 | 897 | 185.5 |
| A | 13 | 254 | 8743 | 42.3 | 916 | 897 | 185.5 |
| B | 0 | 229 | 43853 | 244.46 | 914 | 887 | 175.8 |
| B | 0 | 197 | 23621 | 129.34 | 914 | 887 | 175.8 |
| B | 12 | 111 | 21591 | 117.79 | 914 | 887 | 175.8 |
| C | 14 | 238 | 136235 | 649.32 | 888 | 892 | 208.4 |
| C | 3 | 233 | 97103 | 461.58 | 888 | 892 | 208.4 |
| C | 13 | 61 | 6111 | 25.04 | 888 | 892 | 208.4 |
| D | 10 | 66 | 5817004 | 30853.35 | 772 | 749 | 188.5 |
| D | 1 | 52 | 2064118 | 10945.5 | 772 | 749 | 188.5 |
| D | 7 | 238 | 599246 | 3174.83 | 772 | 749 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

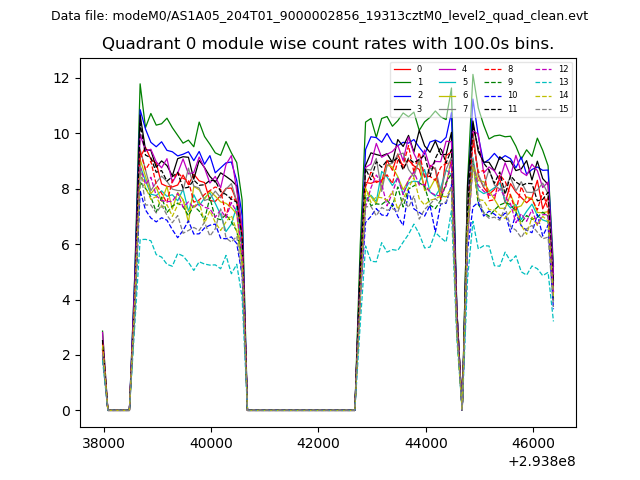

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

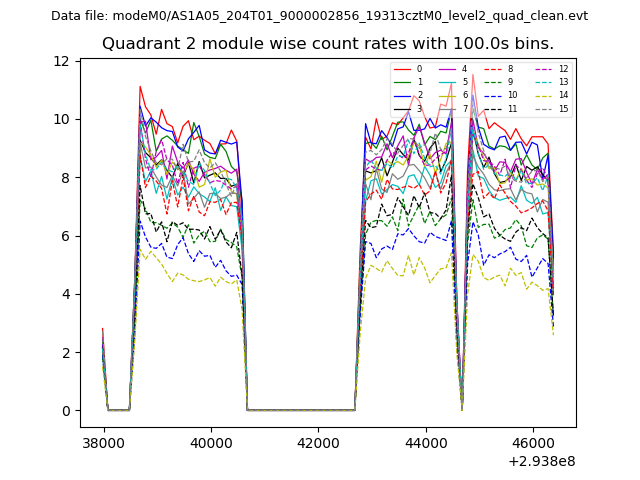

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

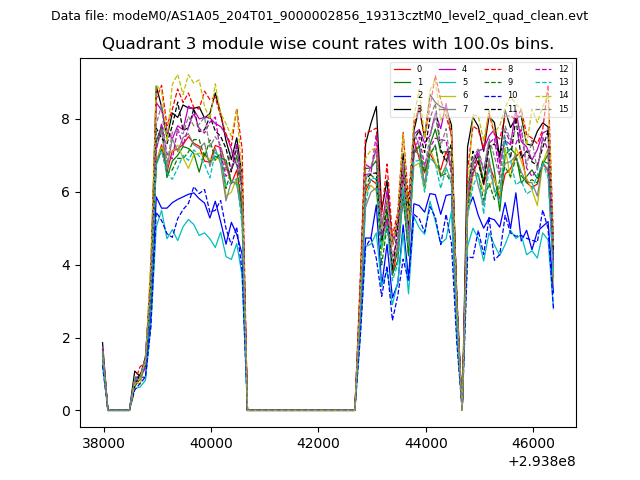

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

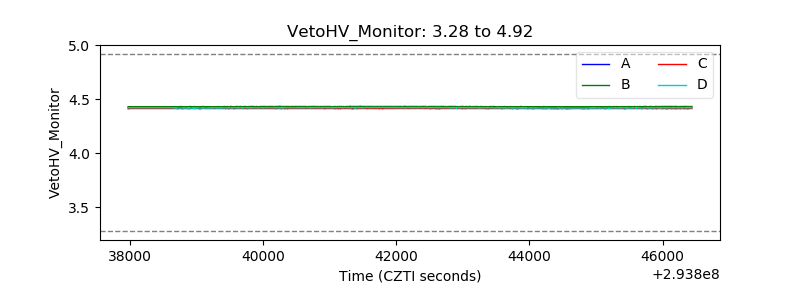

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

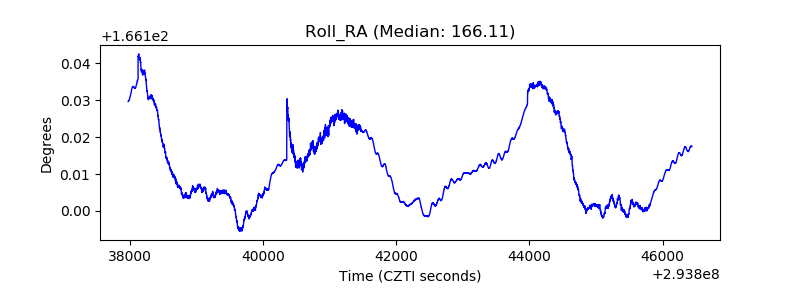

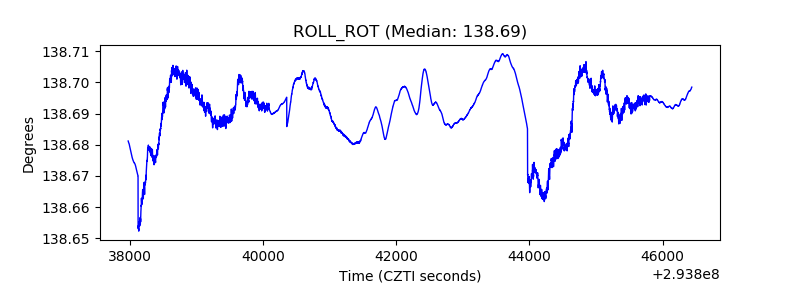

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

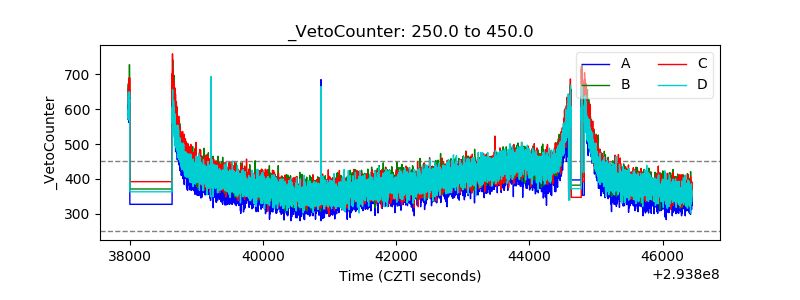

| Veto Counter |  |
