| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19314cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19314cztM0_level2_quad_clean.evt |
| Size (bytes) | 877,210,560 | 114,039,360 |
| Size | 836.6 MB | 108.8 MB |
| Events in quadrant A | 4,018,497 | 768,171 |
| Events in quadrant B | 4,167,772 | 776,400 |
| Events in quadrant C | 4,289,562 | 743,307 |
| Events in quadrant D | 13,515,836 | 573,698 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17663 | 3 |
| B | 0 | 18013 | 3 |
| C | 0 | 18207 | 4 |
| D | 0 | 46002 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8497 | 88 | 1.035660% |
| B | 8498 | 156 | 1.835726% |
| C | 8497 | 213 | 2.506767% |
| D | 8497 | 3269 | 38.472402% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8882 | 8501 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8883 | 8502 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8882 | 8501 | 7 | 7 | 0.08% | 0.08% |  |
| D | 8882 | 8499 | 2752 | 2752 | 30.98% | 32.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 23983 | 109.87 | 1034 | 1009 | 209.1 |
| A | 15 | 174 | 13149 | 58.06 | 1034 | 1009 | 209.1 |
| A | 0 | 226 | 9013 | 38.28 | 1034 | 1009 | 209.1 |
| B | 0 | 229 | 41178 | 203.07 | 1031 | 1003 | 197.8 |
| B | 12 | 111 | 24154 | 117.02 | 1031 | 1003 | 197.8 |
| B | 0 | 197 | 23476 | 113.59 | 1031 | 1003 | 197.8 |
| C | 3 | 233 | 179016 | 750.41 | 1002 | 1004 | 237.2 |
| C | 14 | 238 | 154579 | 647.4 | 1002 | 1004 | 237.2 |
| C | 0 | 207 | 44042 | 181.43 | 1002 | 1004 | 237.2 |
| D | 10 | 66 | 7867592 | 36973.13 | 865 | 838 | 212.8 |
| D | 7 | 238 | 1735061 | 8150.71 | 865 | 838 | 212.8 |
| D | 1 | 52 | 357745 | 1677.43 | 865 | 838 | 212.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

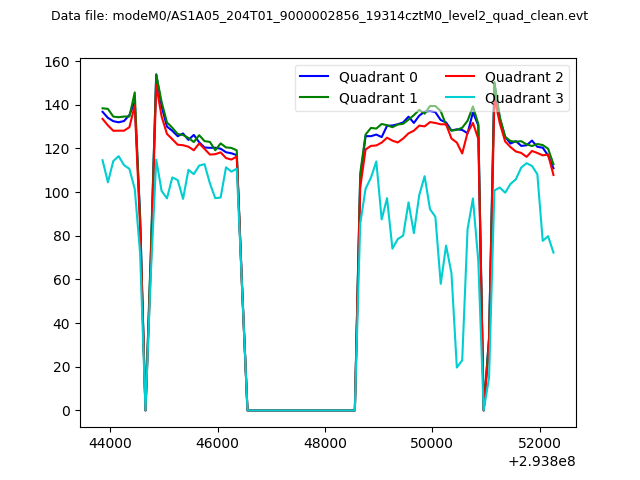

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

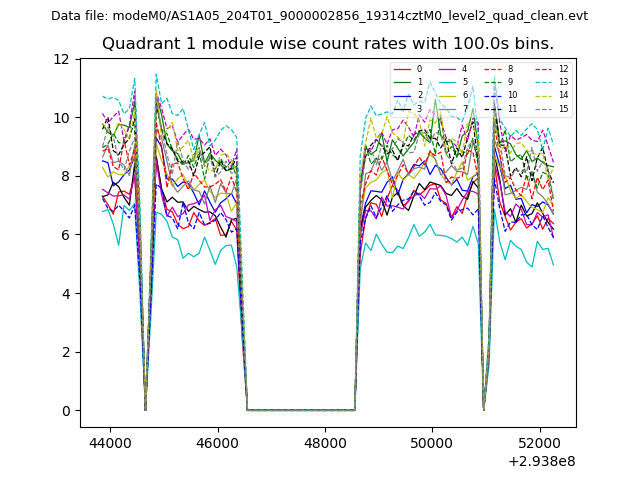

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

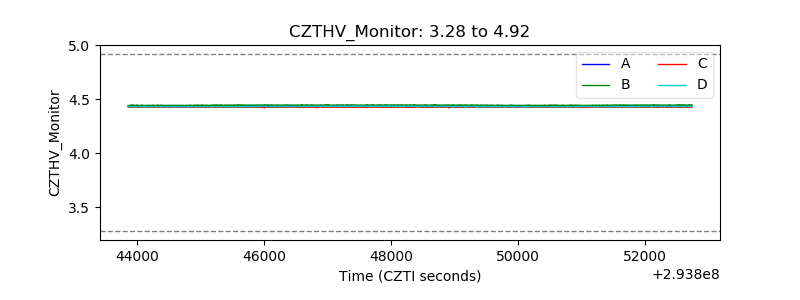

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

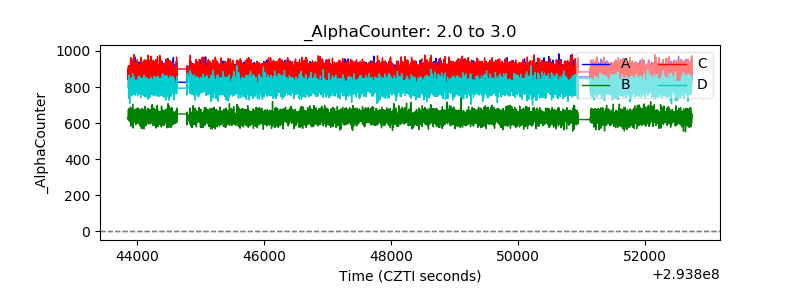

| Alpha Counter |  |

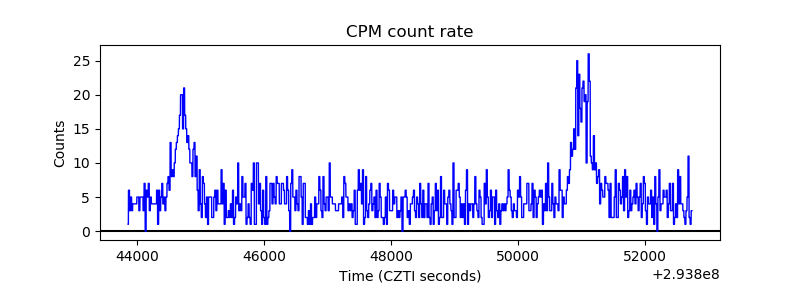

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

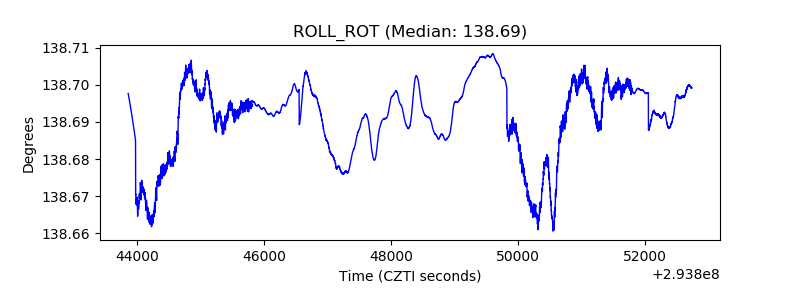

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
