| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19318cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19318cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,191,360 | 73,964,160 |
| Size | 564.8 MB | 70.5 MB |
| Events in quadrant A | 3,428,574 | 458,306 |
| Events in quadrant B | 3,458,739 | 461,721 |
| Events in quadrant C | 3,425,643 | 442,290 |
| Events in quadrant D | 7,146,881 | 389,256 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14565 | 3 |
| B | 0 | 14591 | 2 |
| C | 0 | 14474 | 2 |
| D | 0 | 26035 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7000 | 125 | 1.785714% |
| B | 7001 | 136 | 1.942580% |
| C | 7001 | 136 | 1.942580% |
| D | 7001 | 1099 | 15.697757% |

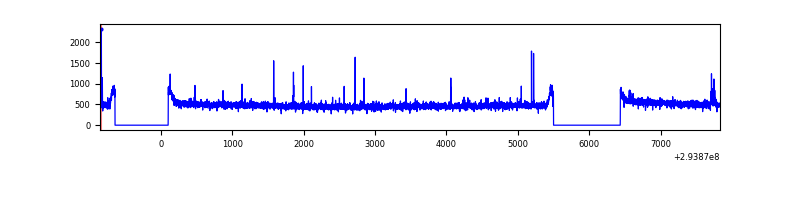

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8680 | 7000 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8681 | 7001 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8681 | 7001 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8681 | 7001 | 880 | 880 | 10.14% | 12.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 53128 | 295.72 | 872 | 852 | 176.8 |
| A | 11 | 29 | 14512 | 77.27 | 872 | 852 | 176.8 |
| A | 13 | 254 | 8396 | 42.68 | 872 | 852 | 176.8 |
| B | 3 | 64 | 37734 | 217.83 | 866 | 842 | 169.4 |
| B | 12 | 111 | 20713 | 117.33 | 866 | 842 | 169.4 |
| B | 11 | 111 | 18505 | 104.29 | 866 | 842 | 169.4 |
| C | 14 | 238 | 128618 | 653.07 | 830 | 833 | 195.7 |
| C | 3 | 233 | 54309 | 273.3 | 830 | 833 | 195.7 |
| C | 7 | 220 | 7139 | 32.23 | 830 | 833 | 195.7 |
| D | 10 | 66 | 1275793 | 6568.11 | 790 | 767 | 194.1 |
| D | 7 | 238 | 1221348 | 6287.64 | 790 | 767 | 194.1 |
| D | 1 | 52 | 1079091 | 5554.83 | 790 | 767 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

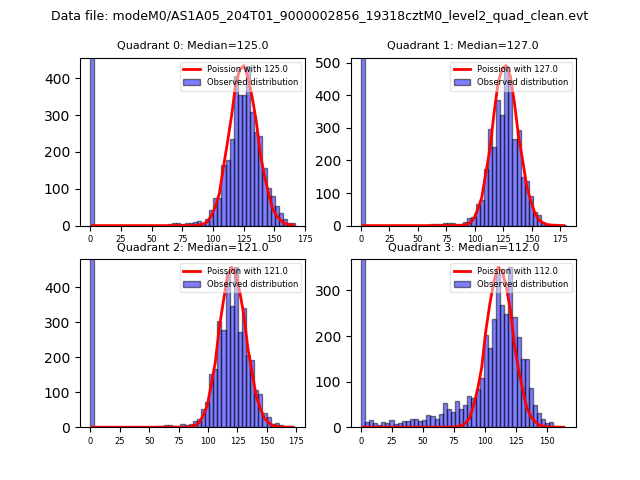

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

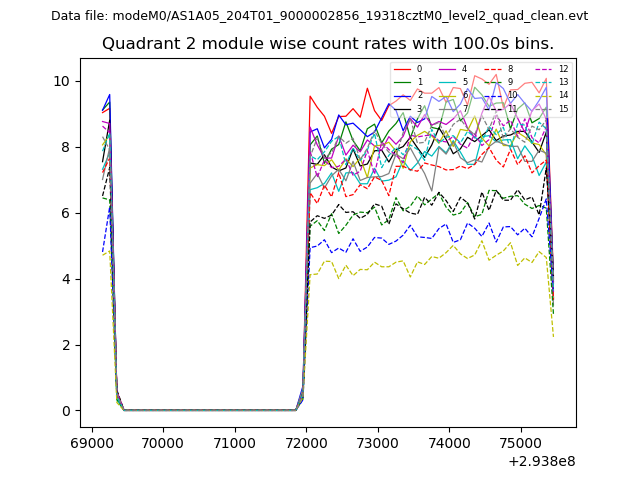

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

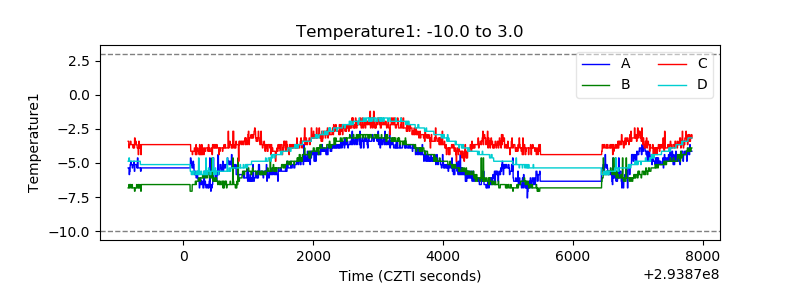

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

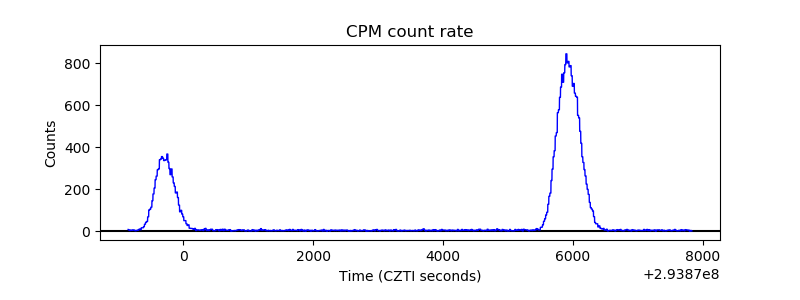

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

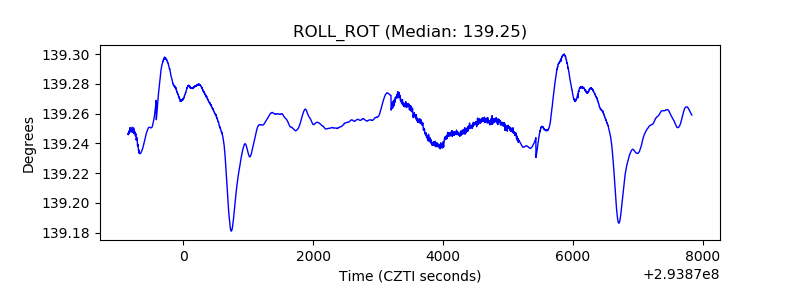

| _ROLL_ROT |  |

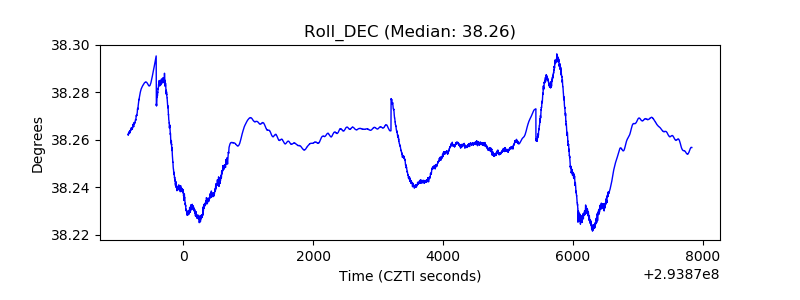

| _Roll_DEC |  |
| _Roll_RA |  |

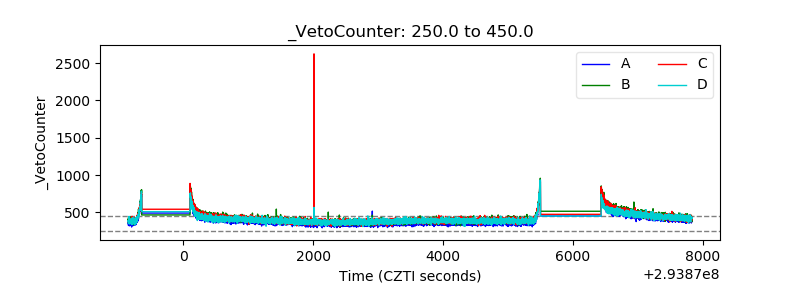

| Veto Counter |  |
