| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19320cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19320cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,209,280 | 88,027,200 |
| Size | 563.8 MB | 83.9 MB |
| Events in quadrant A | 3,475,811 | 566,259 |
| Events in quadrant B | 3,514,969 | 569,735 |
| Events in quadrant C | 3,467,846 | 542,228 |
| Events in quadrant D | 6,978,161 | 506,323 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14663 | 2 |
| B | 0 | 14753 | 2 |
| C | 0 | 14550 | 2 |
| D | 0 | 25450 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6902 | 111 | 1.608229% |
| B | 6903 | 120 | 1.738375% |
| C | 6903 | 127 | 1.839780% |
| D | 6903 | 1144 | 16.572505% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8912 | 6902 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8913 | 6903 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8913 | 6903 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8913 | 6903 | 902 | 902 | 10.12% | 13.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 15112 | 78.97 | 896 | 879 | 180.2 |
| A | 13 | 254 | 8695 | 43.37 | 896 | 879 | 180.2 |
| A | 0 | 226 | 7851 | 38.68 | 896 | 879 | 180.2 |
| B | 12 | 111 | 20688 | 117.7 | 882 | 861 | 168.5 |
| B | 3 | 64 | 20147 | 114.49 | 882 | 861 | 168.5 |
| B | 11 | 111 | 18309 | 103.58 | 882 | 861 | 168.5 |
| C | 14 | 238 | 132159 | 667.36 | 846 | 852 | 196.8 |
| C | 3 | 233 | 36645 | 181.92 | 846 | 852 | 196.8 |
| C | 13 | 61 | 6016 | 26.25 | 846 | 852 | 196.8 |
| D | 7 | 238 | 1313953 | 6700.41 | 804 | 781 | 196.0 |
| D | 1 | 52 | 1022898 | 5215.31 | 804 | 781 | 196.0 |
| D | 11 | 176 | 869124 | 4430.69 | 804 | 781 | 196.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

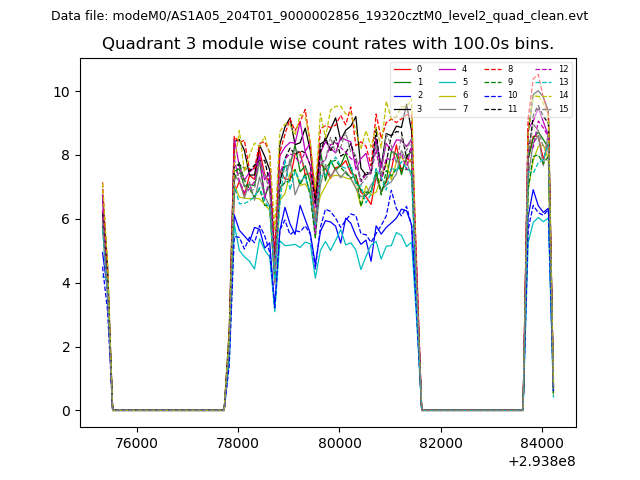

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

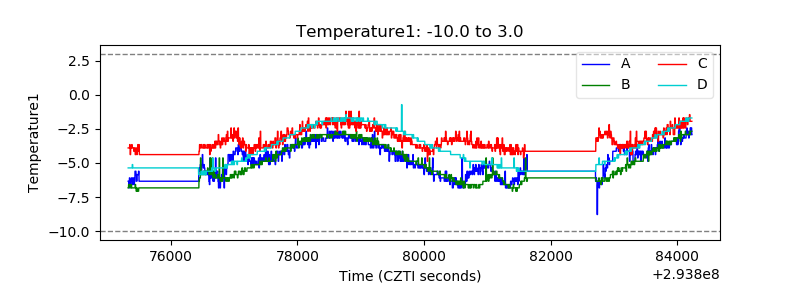

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

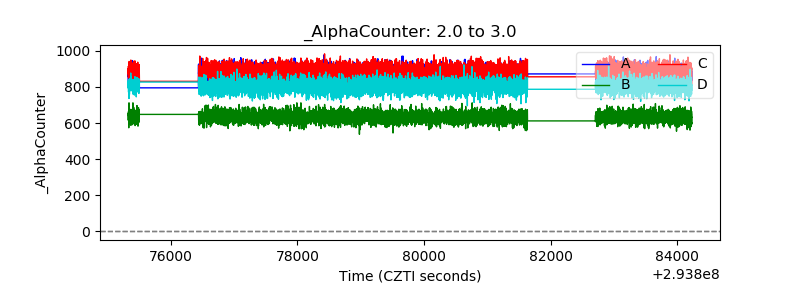

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

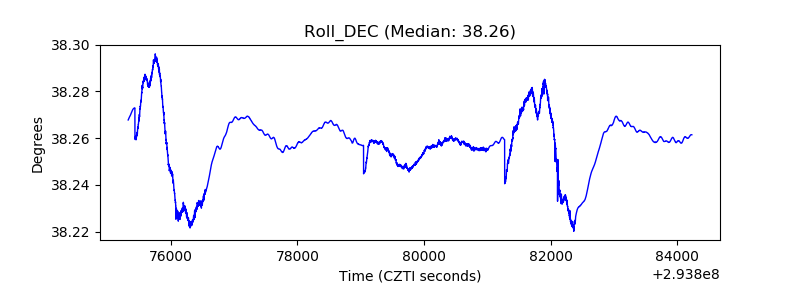

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
