| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19325cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19325cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,434,240 | 91,454,400 |
| Size | 499.2 MB | 87.2 MB |
| Events in quadrant A | 3,136,595 | 629,598 |
| Events in quadrant B | 3,314,252 | 630,102 |
| Events in quadrant C | 3,228,670 | 606,083 |
| Events in quadrant D | 5,746,065 | 464,868 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13324 | 2 |
| B | 0 | 13908 | 2 |
| C | 0 | 13485 | 2 |
| D | 0 | 21328 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6281 | 33 | 0.525394% |
| B | 6281 | 42 | 0.668683% |
| C | 6281 | 74 | 1.178156% |
| D | 6281 | 1257 | 20.012737% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6282 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7511 | 6282 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7511 | 6281 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7511 | 6282 | 1051 | 1051 | 13.99% | 16.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 15356 | 90.11 | 806 | 788 | 161.7 |
| A | 5 | 16 | 10571 | 60.51 | 806 | 788 | 161.7 |
| A | 11 | 29 | 9317 | 52.76 | 806 | 788 | 161.7 |
| B | 6 | 36 | 80380 | 534.67 | 797 | 778 | 148.9 |
| B | 0 | 190 | 30265 | 198.06 | 797 | 778 | 148.9 |
| B | 0 | 229 | 23522 | 152.77 | 797 | 778 | 148.9 |
| C | 14 | 238 | 121259 | 666.1 | 776 | 783 | 180.9 |
| C | 3 | 233 | 73824 | 403.84 | 776 | 783 | 180.9 |
| C | 13 | 61 | 5334 | 25.16 | 776 | 783 | 180.9 |
| D | 7 | 238 | 2678167 | 16458.27 | 675 | 658 | 162.7 |
| D | 11 | 176 | 265975 | 1630.87 | 675 | 658 | 162.7 |
| D | 1 | 52 | 124123 | 758.92 | 675 | 658 | 162.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

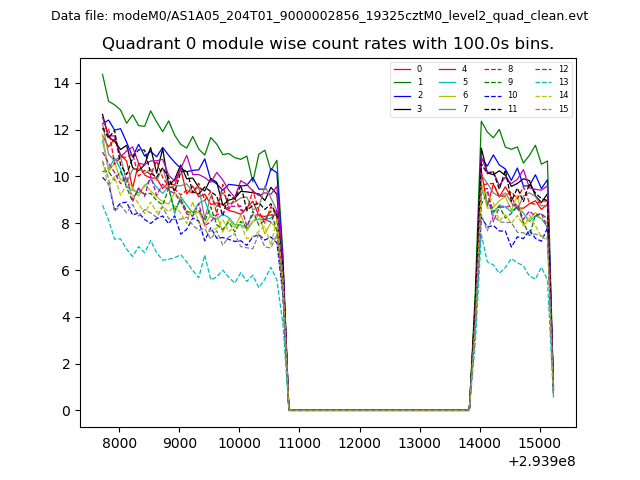

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

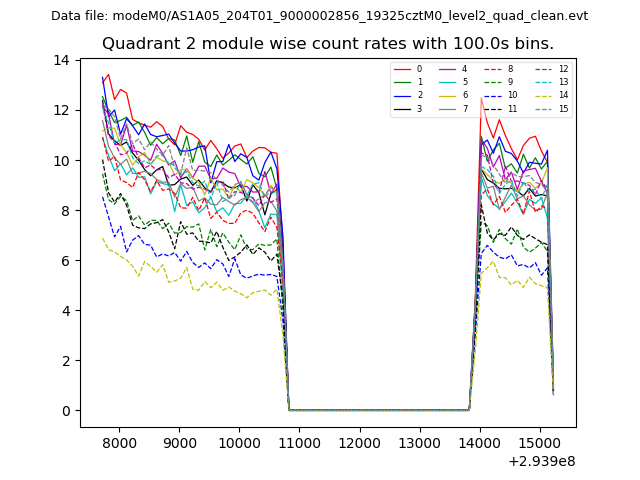

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
