| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19327cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19327cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,371,200 | 101,531,520 |
| Size | 468.6 MB | 96.8 MB |
| Events in quadrant A | 3,362,683 | 655,429 |
| Events in quadrant B | 3,494,784 | 661,033 |
| Events in quadrant C | 3,653,404 | 632,873 |
| Events in quadrant D | 3,882,226 | 625,021 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14823 | 3 |
| B | 0 | 15072 | 3 |
| C | 0 | 15457 | 3 |
| D | 0 | 16536 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7187 | 29 | 0.403506% |
| B | 7187 | 59 | 0.820927% |
| C | 7187 | 95 | 1.321831% |
| D | 7187 | 101 | 1.405315% |

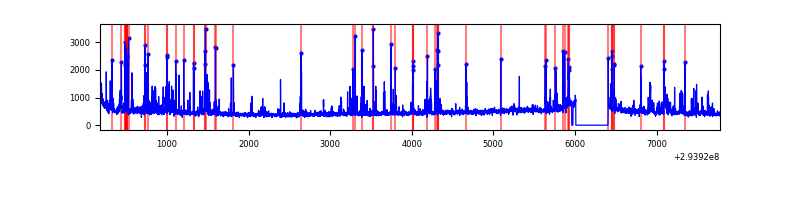

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7597 | 7189 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7597 | 7189 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7597 | 7189 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7597 | 7189 | 65 | 65 | 0.86% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 17857 | 97.42 | 868 | 849 | 174.6 |
| A | 13 | 254 | 7785 | 39.73 | 868 | 849 | 174.6 |
| A | 0 | 226 | 7609 | 38.72 | 868 | 849 | 174.6 |
| B | 0 | 229 | 57699 | 343.87 | 864 | 841 | 165.3 |
| B | 0 | 190 | 27707 | 162.48 | 864 | 841 | 165.3 |
| B | 12 | 111 | 20045 | 116.14 | 864 | 841 | 165.3 |
| C | 3 | 233 | 241026 | 1231.31 | 836 | 843 | 195.1 |
| C | 14 | 238 | 127771 | 650.7 | 836 | 843 | 195.1 |
| C | 8 | 128 | 14551 | 70.27 | 836 | 843 | 195.1 |
| D | 11 | 176 | 393355 | 1913.28 | 846 | 821 | 205.2 |
| D | 7 | 238 | 100499 | 485.85 | 846 | 821 | 205.2 |
| D | 1 | 52 | 45817 | 219.32 | 846 | 821 | 205.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

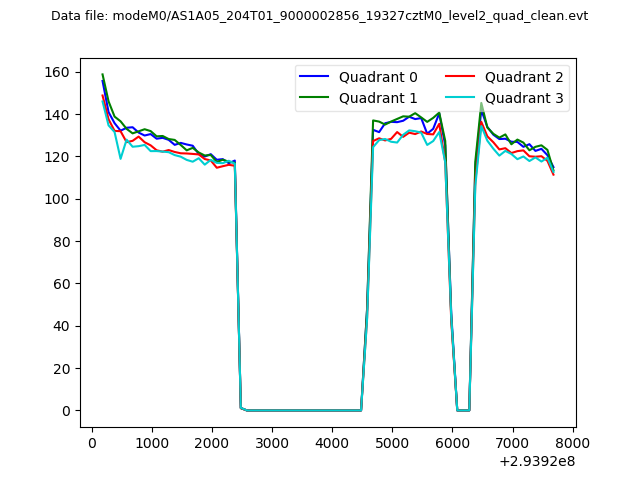

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

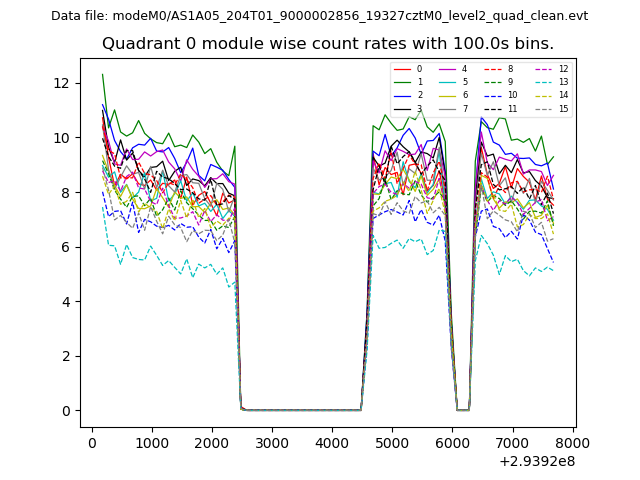

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

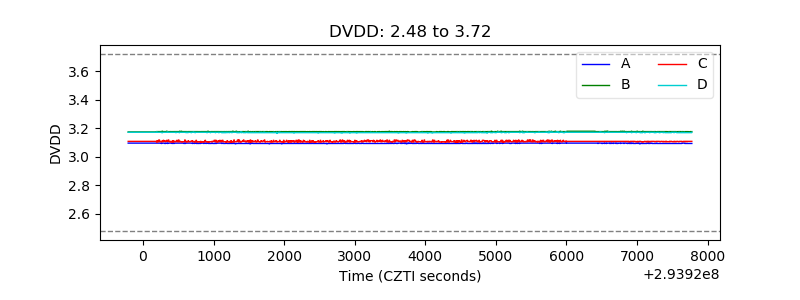

| D_VDD |  |

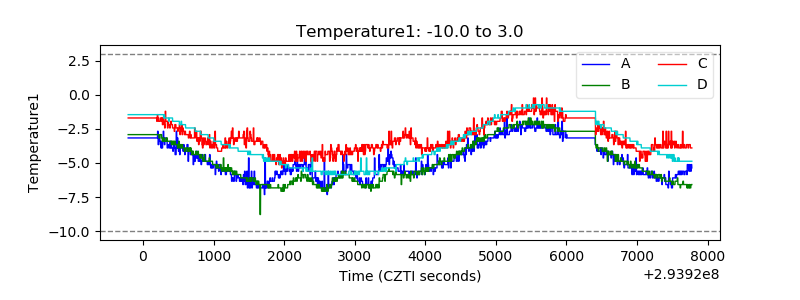

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

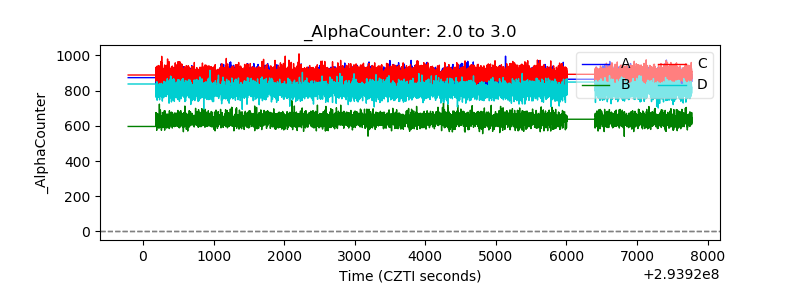

| Alpha Counter |  |

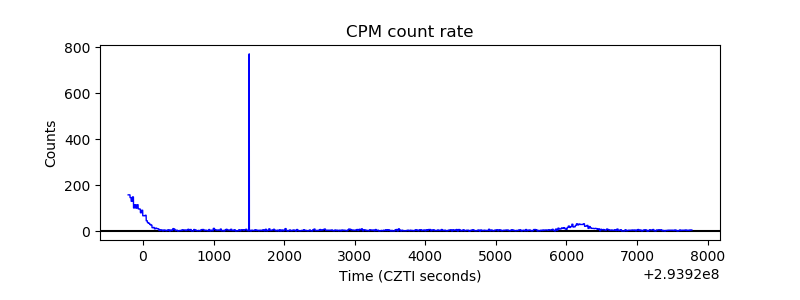

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

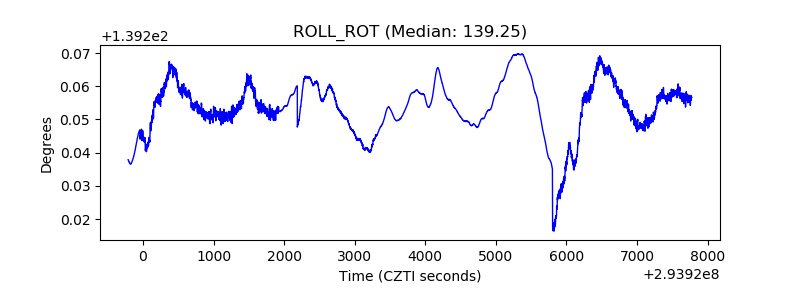

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
