| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19333cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19333cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,843,840 | 76,576,320 |
| Size | 498.6 MB | 73.0 MB |
| Events in quadrant A | 3,547,588 | 470,165 |
| Events in quadrant B | 3,446,665 | 475,512 |
| Events in quadrant C | 3,511,252 | 451,600 |
| Events in quadrant D | 4,864,597 | 444,782 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14830 | 2 |
| B | 0 | 14421 | 2 |
| C | 0 | 14500 | 2 |
| D | 0 | 18954 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6841 | 152 | 2.221897% |
| B | 6841 | 139 | 2.031867% |
| C | 6842 | 140 | 2.046185% |
| D | 6841 | 298 | 4.356088% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8686 | 6841 | 28 | 28 | 0.32% | 0.41% |  |
| B | 8686 | 6841 | 6 | 6 | 0.07% | 0.09% |  |
| C | 8687 | 6842 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8686 | 6841 | 167 | 167 | 1.92% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 174587 | 984.98 | 868 | 848 | 176.4 |
| A | 11 | 29 | 16531 | 88.91 | 868 | 848 | 176.4 |
| A | 9 | 143 | 15436 | 82.7 | 868 | 848 | 176.4 |
| B | 0 | 229 | 40823 | 241.26 | 860 | 839 | 165.7 |
| B | 12 | 111 | 20404 | 118.05 | 860 | 839 | 165.7 |
| B | 11 | 111 | 18418 | 106.07 | 860 | 839 | 165.7 |
| C | 3 | 233 | 131333 | 675.94 | 823 | 828 | 193.1 |
| C | 14 | 238 | 130049 | 669.29 | 823 | 828 | 193.1 |
| C | 9 | 54 | 15175 | 74.31 | 823 | 828 | 193.1 |
| D | 11 | 176 | 623779 | 3089.34 | 831 | 806 | 201.7 |
| D | 10 | 66 | 534706 | 2647.63 | 831 | 806 | 201.7 |
| D | 1 | 52 | 472009 | 2336.71 | 831 | 806 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

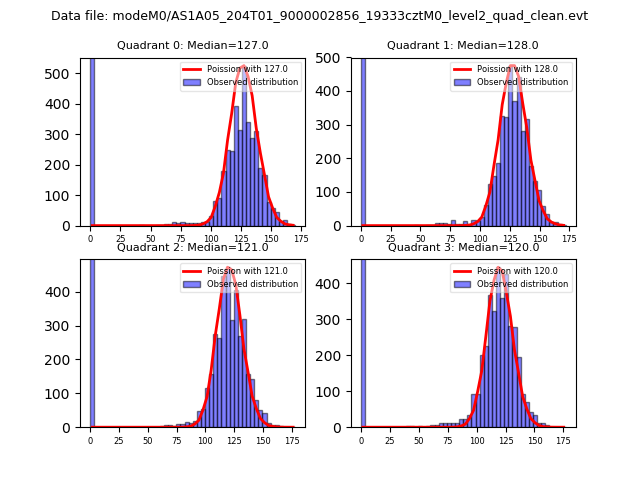

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

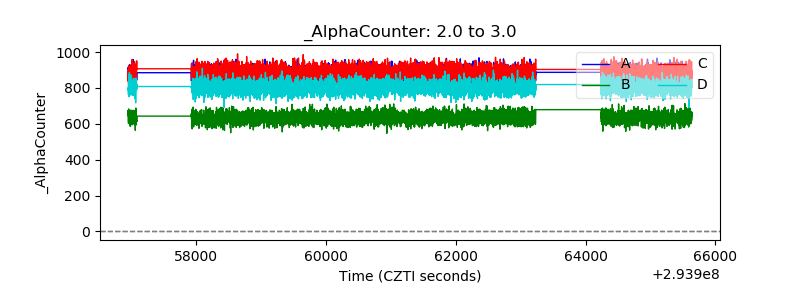

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

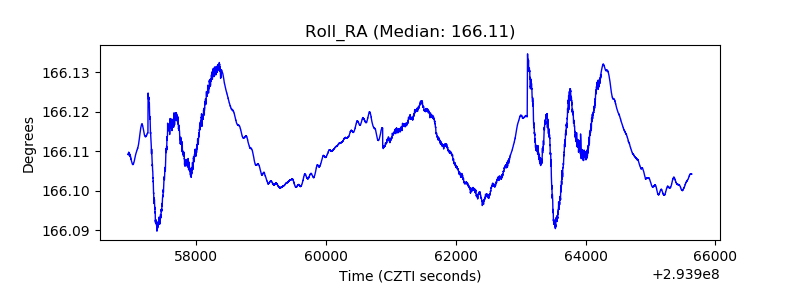

| _Roll_RA |  |

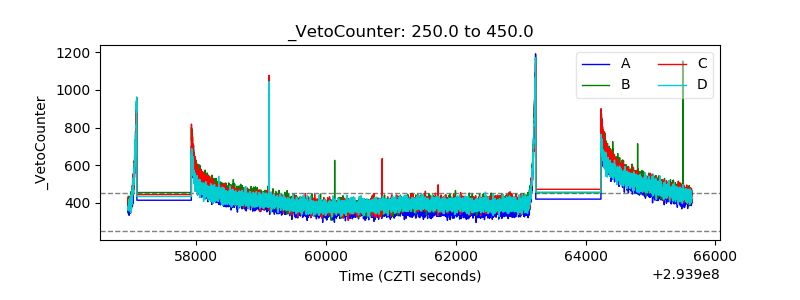

| Veto Counter |  |
