| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19338cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19338cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,081,486,080 | 185,417,280 |
| Size | 1.0 GB | 176.8 MB |
| Events in quadrant A | 5,481,990 | 1,309,830 |
| Events in quadrant B | 5,640,832 | 1,301,313 |
| Events in quadrant C | 6,972,213 | 1,228,274 |
| Events in quadrant D | 13,961,779 | 1,060,631 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22716 | 3 |
| B | 0 | 23336 | 2 |
| C | 0 | 27477 | 2 |
| D | 0 | 48578 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 208 | 0 |
| B | 0 | 208 | 0 |
| C | 0 | 208 | 0 |
| D | 0 | 208 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10335 | 137 | 1.325593% |
| B | 10335 | 152 | 1.470731% |
| C | 10335 | 341 | 3.299468% |
| D | 10336 | 3067 | 29.672988% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13025 | 10336 | 19 | 19 | 0.15% | 0.18% |  |
| B | 13025 | 10336 | 14 | 14 | 0.11% | 0.14% |  |
| C | 13025 | 10335 | 38 | 38 | 0.29% | 0.37% |  |
| D | 13026 | 10336 | 2615 | 2615 | 20.08% | 25.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 89953 | 319.15 | 1393 | 1371 | 277.6 |
| A | 11 | 29 | 27524 | 94.23 | 1393 | 1371 | 277.6 |
| A | 0 | 226 | 12394 | 39.71 | 1393 | 1371 | 277.6 |
| B | 0 | 229 | 103181 | 401.5 | 1366 | 1337 | 253.7 |
| B | 0 | 190 | 61202 | 236.0 | 1366 | 1337 | 253.7 |
| B | 3 | 64 | 40232 | 153.33 | 1366 | 1337 | 253.7 |
| C | 3 | 233 | 1620228 | 5339.5 | 1319 | 1330 | 303.2 |
| C | 14 | 238 | 207533 | 680.11 | 1319 | 1330 | 303.2 |
| C | 13 | 61 | 9323 | 26.36 | 1319 | 1330 | 303.2 |
| D | 7 | 238 | 5505704 | 19169.35 | 1191 | 1159 | 287.2 |
| D | 10 | 66 | 2273291 | 7912.6 | 1191 | 1159 | 287.2 |
| D | 1 | 52 | 1398586 | 4866.48 | 1191 | 1159 | 287.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

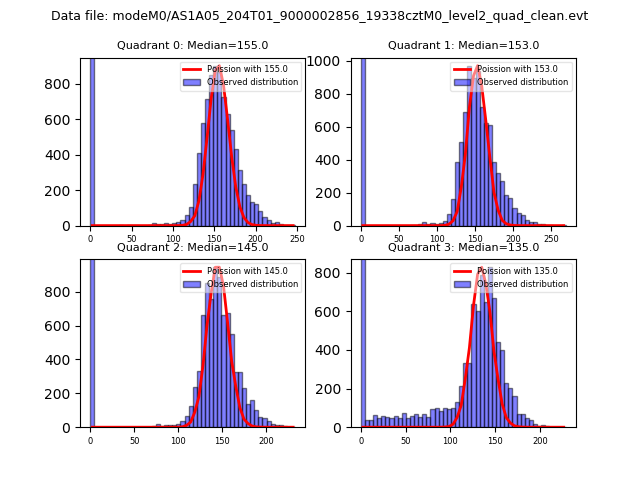

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

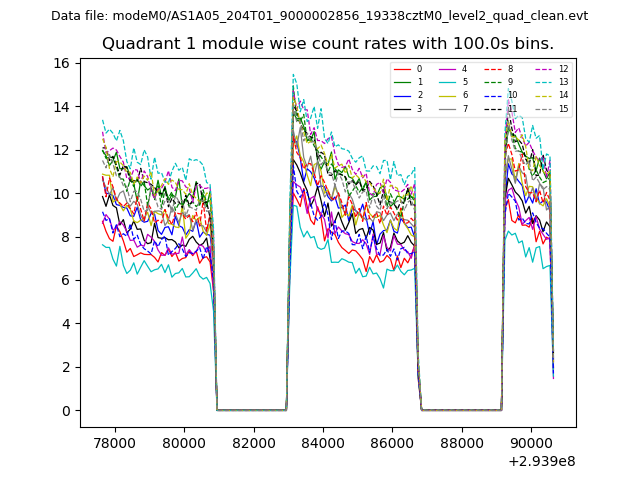

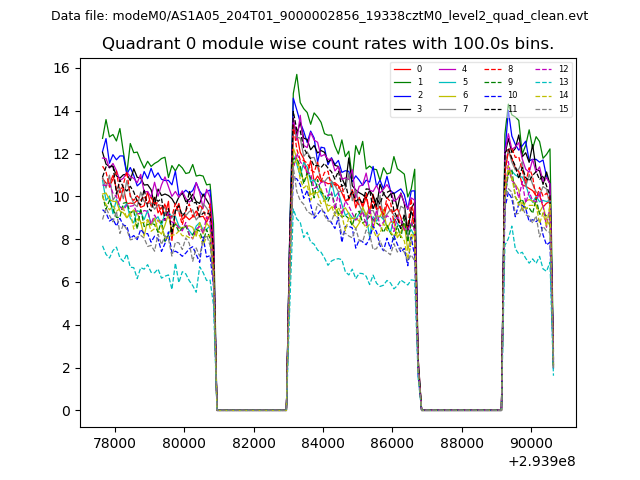

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
