| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19340cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19340cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,537,920 | 88,819,200 |
| Size | 533.6 MB | 84.7 MB |
| Events in quadrant A | 3,106,645 | 592,930 |
| Events in quadrant B | 3,224,714 | 593,872 |
| Events in quadrant C | 3,751,911 | 568,190 |
| Events in quadrant D | 6,425,984 | 485,186 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13336 | 1 |
| B | 0 | 13582 | 1 |
| C | 0 | 15343 | 1 |
| D | 0 | 23633 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6434 | 24 | 0.373018% |
| B | 6435 | 38 | 0.590521% |
| C | 6435 | 70 | 1.087801% |
| D | 6434 | 968 | 15.045073% |

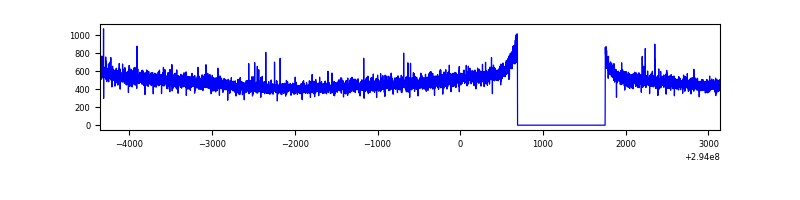

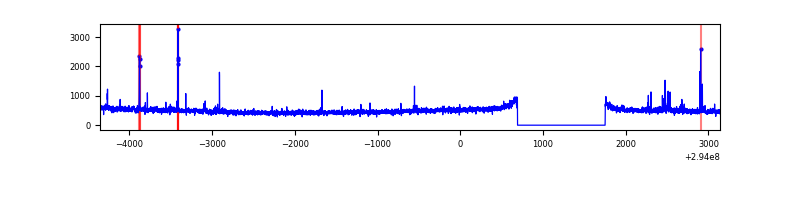

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7494 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7495 | 6436 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7495 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7493 | 6434 | 871 | 871 | 11.62% | 13.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 14121 | 82.85 | 800 | 784 | 161.0 |
| A | 0 | 226 | 7183 | 39.75 | 800 | 784 | 161.0 |
| A | 5 | 16 | 7173 | 39.69 | 800 | 784 | 161.0 |
| B | 0 | 229 | 38190 | 249.07 | 790 | 772 | 150.2 |
| B | 15 | 32 | 23989 | 154.54 | 790 | 772 | 150.2 |
| B | 12 | 111 | 17691 | 112.62 | 790 | 772 | 150.2 |
| C | 3 | 233 | 634016 | 3510.67 | 770 | 775 | 180.4 |
| C | 14 | 238 | 117263 | 645.81 | 770 | 775 | 180.4 |
| C | 13 | 61 | 5404 | 25.66 | 770 | 775 | 180.4 |
| D | 7 | 238 | 1758324 | 10115.53 | 719 | 701 | 173.8 |
| D | 1 | 52 | 777049 | 4468.06 | 719 | 701 | 173.8 |
| D | 10 | 66 | 623920 | 3586.77 | 719 | 701 | 173.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

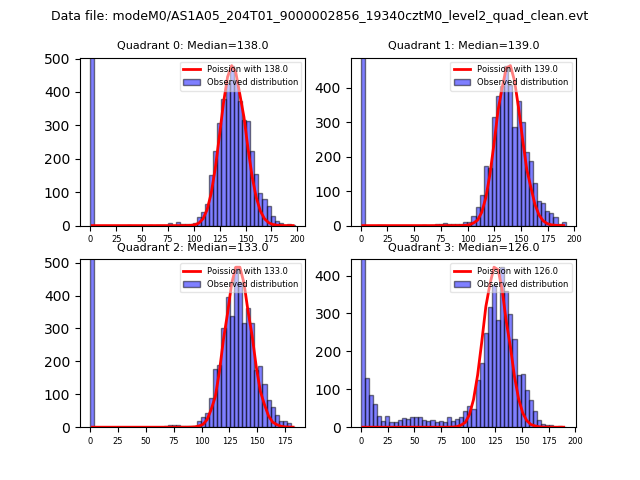

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

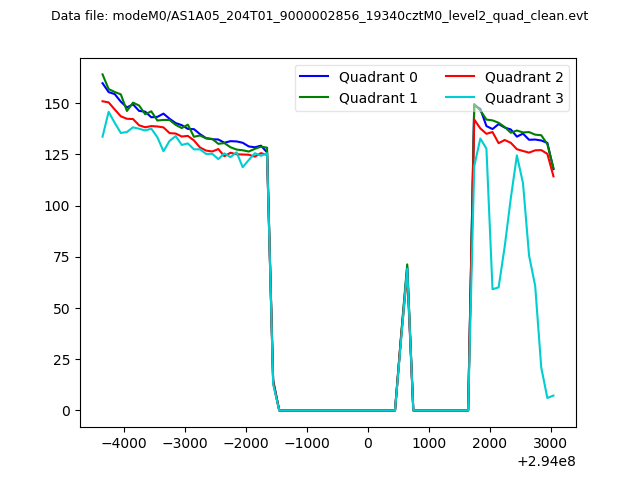

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

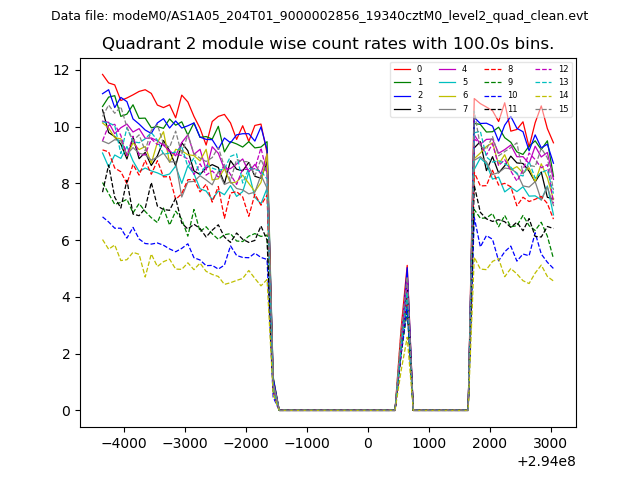

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

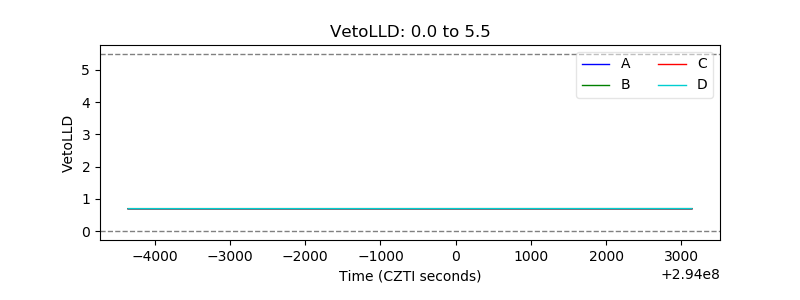

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

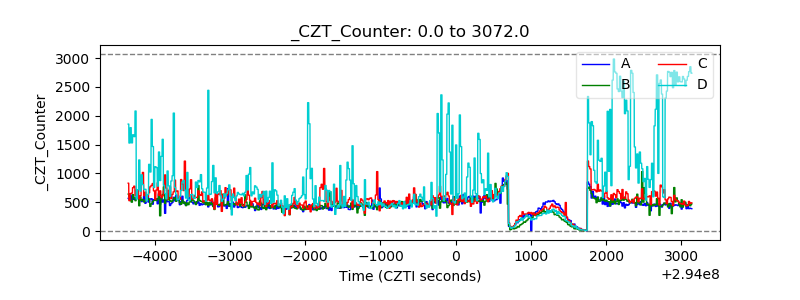

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

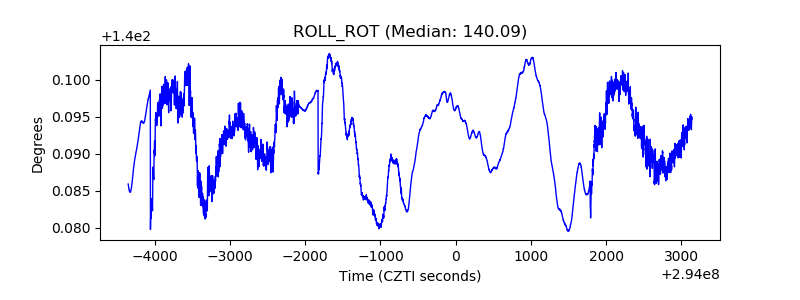

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
