| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19342cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19342cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,685,440 | 105,232,320 |
| Size | 541.4 MB | 100.4 MB |
| Events in quadrant A | 3,520,591 | 685,538 |
| Events in quadrant B | 3,693,150 | 690,140 |
| Events in quadrant C | 3,627,747 | 662,922 |
| Events in quadrant D | 5,845,810 | 629,940 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15513 | 2 |
| B | 0 | 15904 | 2 |
| C | 0 | 15626 | 2 |
| D | 0 | 22609 | 9 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7451 | 35 | 0.469736% |
| B | 7451 | 58 | 0.778419% |
| C | 7451 | 102 | 1.368944% |
| D | 7450 | 536 | 7.194631% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7716 | 7452 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7716 | 7452 | 11 | 11 | 0.14% | 0.15% |  |
| C | 7716 | 7452 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7715 | 7450 | 431 | 431 | 5.59% | 5.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 29748 | 157.54 | 897 | 876 | 183.3 |
| A | 11 | 29 | 21572 | 112.92 | 897 | 876 | 183.3 |
| A | 5 | 16 | 10827 | 54.3 | 897 | 876 | 183.3 |
| B | 7 | 220 | 52380 | 303.58 | 892 | 870 | 169.7 |
| B | 0 | 229 | 39671 | 228.68 | 892 | 870 | 169.7 |
| B | 0 | 198 | 23949 | 136.02 | 892 | 870 | 169.7 |
| C | 14 | 238 | 133473 | 648.19 | 867 | 871 | 204.6 |
| C | 3 | 233 | 111671 | 541.62 | 867 | 871 | 204.6 |
| C | 13 | 61 | 6071 | 25.42 | 867 | 871 | 204.6 |
| D | 1 | 52 | 1116627 | 5442.23 | 850 | 826 | 205.0 |
| D | 7 | 238 | 595821 | 2902.04 | 850 | 826 | 205.0 |
| D | 10 | 66 | 589343 | 2870.45 | 850 | 826 | 205.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

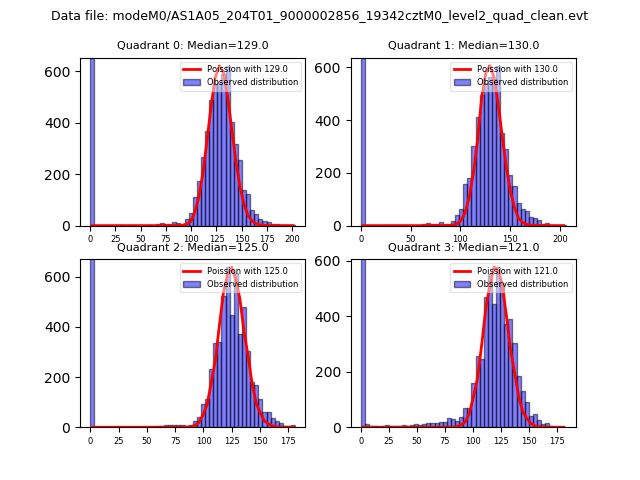

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

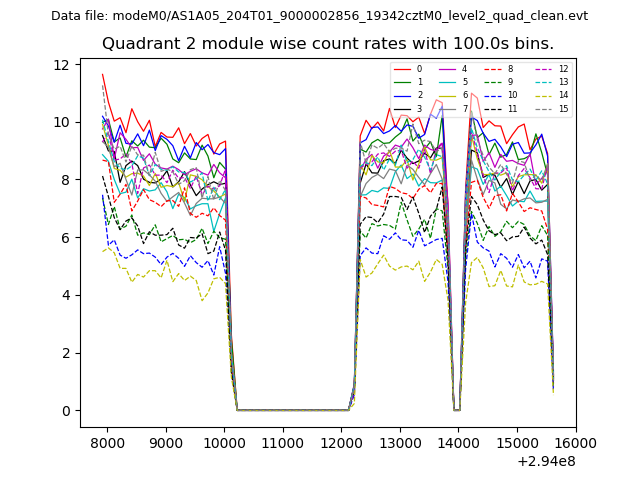

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
