| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19347cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19347cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,122,880 | 68,117,760 |
| Size | 460.7 MB | 65.0 MB |
| Events in quadrant A | 3,086,698 | 412,513 |
| Events in quadrant B | 3,146,739 | 415,716 |
| Events in quadrant C | 3,104,655 | 395,718 |
| Events in quadrant D | 4,851,900 | 385,194 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13273 | 1 |
| B | 0 | 13395 | 1 |
| C | 0 | 13251 | 1 |
| D | 0 | 18744 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6497 | 76 | 1.169771% |
| B | 6497 | 88 | 1.354471% |
| C | 6497 | 88 | 1.354471% |
| D | 6497 | 538 | 8.280745% |

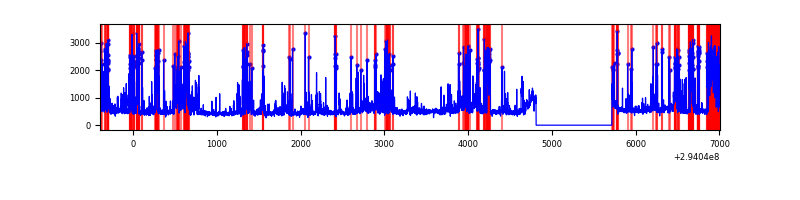

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7402 | 6497 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7402 | 6497 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7402 | 6497 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7402 | 6497 | 397 | 397 | 5.36% | 6.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6936 | 37.87 | 801 | 782 | 162.5 |
| A | 3 | 137 | 6464 | 34.97 | 801 | 782 | 162.5 |
| A | 13 | 254 | 5683 | 30.16 | 801 | 782 | 162.5 |
| B | 12 | 111 | 18867 | 117.73 | 795 | 773 | 153.7 |
| B | 11 | 111 | 16808 | 104.33 | 795 | 773 | 153.7 |
| B | 14 | 111 | 15162 | 93.62 | 795 | 773 | 153.7 |
| C | 14 | 238 | 119454 | 663.57 | 761 | 766 | 178.9 |
| C | 3 | 233 | 15719 | 83.6 | 761 | 766 | 178.9 |
| C | 13 | 61 | 5396 | 25.89 | 761 | 766 | 178.9 |
| D | 7 | 238 | 1577122 | 8652.98 | 748 | 726 | 182.2 |
| D | 11 | 176 | 270031 | 1478.24 | 748 | 726 | 182.2 |
| D | 1 | 52 | 100698 | 548.76 | 748 | 726 | 182.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

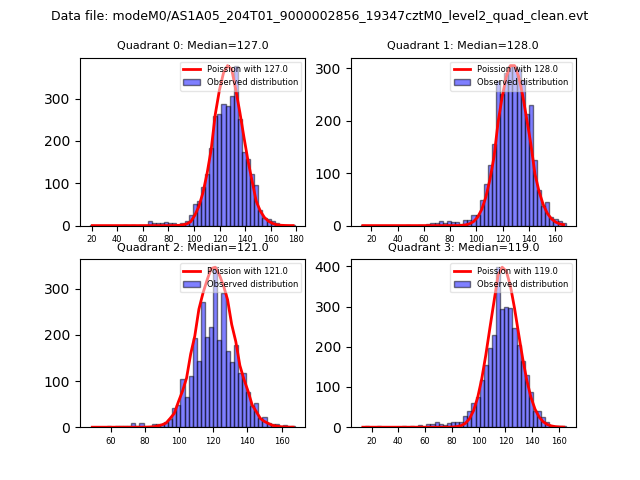

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

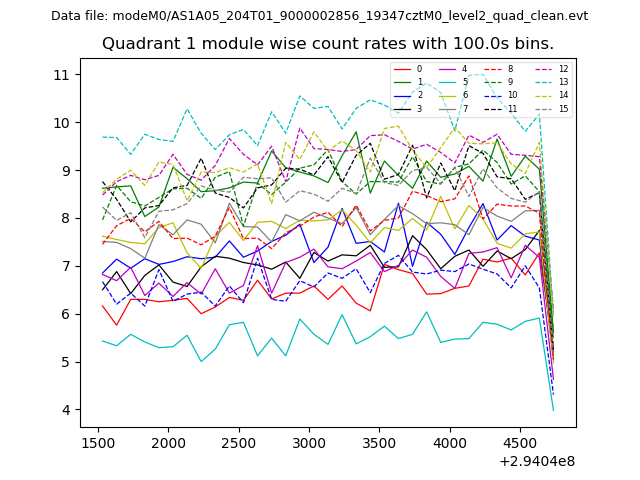

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

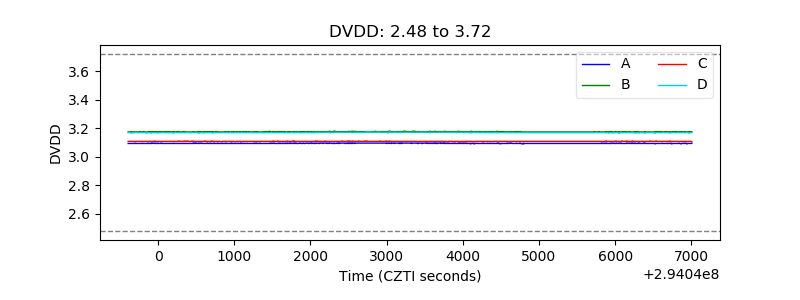

| D_VDD |  |

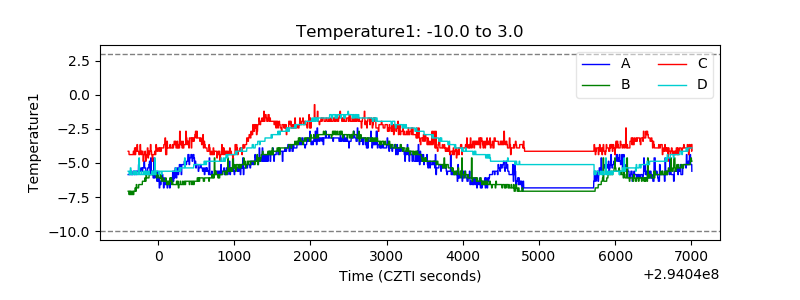

| Temperature 1 |  |

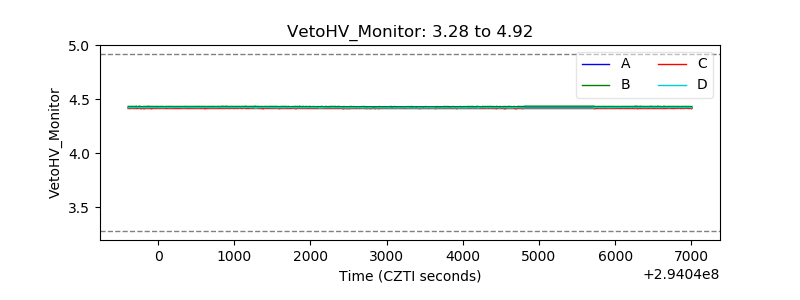

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

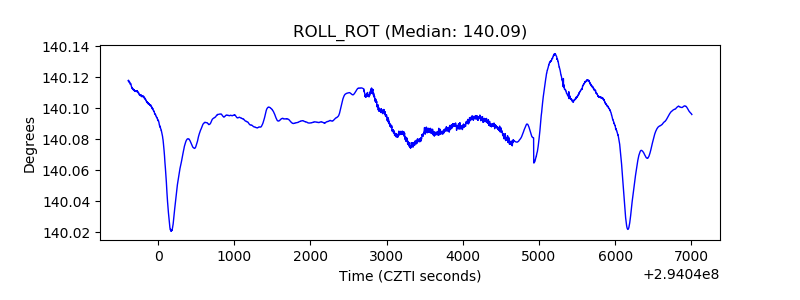

| _ROLL_ROT |  |

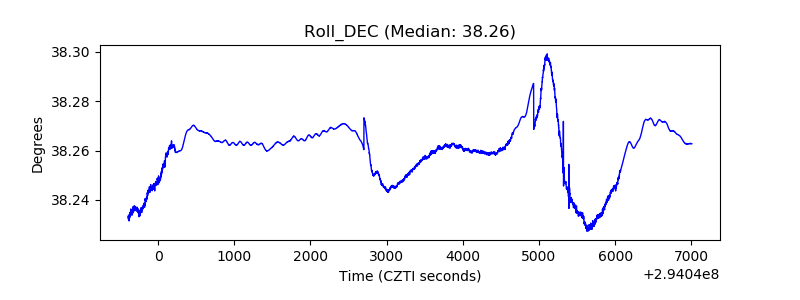

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
