| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19350cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19350cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,235,200 | 94,176,000 |
| Size | 520.9 MB | 89.8 MB |
| Events in quadrant A | 3,360,431 | 622,897 |
| Events in quadrant B | 3,447,513 | 626,595 |
| Events in quadrant C | 3,302,665 | 586,696 |
| Events in quadrant D | 5,993,473 | 564,207 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14045 | 1 |
| B | 0 | 14266 | 1 |
| C | 0 | 13786 | 1 |
| D | 0 | 22180 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6470 | 83 | 1.282844% |
| B | 6471 | 91 | 1.406274% |
| C | 6471 | 99 | 1.529903% |
| D | 6471 | 621 | 9.596662% |

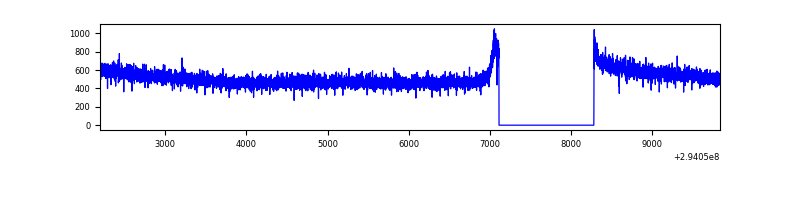

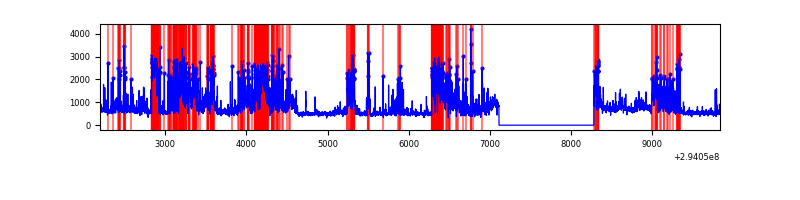

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7640 | 6470 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7641 | 6471 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7641 | 6471 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7641 | 6471 | 493 | 493 | 6.45% | 7.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 8455 | 43.99 | 870 | 855 | 172.8 |
| A | 13 | 254 | 7757 | 39.95 | 870 | 855 | 172.8 |
| A | 0 | 226 | 7618 | 39.14 | 870 | 855 | 172.8 |
| B | 0 | 190 | 80388 | 490.09 | 853 | 832 | 162.3 |
| B | 12 | 111 | 18997 | 111.9 | 853 | 832 | 162.3 |
| B | 11 | 111 | 16743 | 98.02 | 853 | 832 | 162.3 |
| C | 14 | 238 | 128395 | 676.07 | 813 | 820 | 188.7 |
| C | 13 | 61 | 5806 | 26.42 | 813 | 820 | 188.7 |
| C | 3 | 233 | 5410 | 24.32 | 813 | 820 | 188.7 |
| D | 7 | 238 | 1510334 | 7745.65 | 809 | 785 | 194.9 |
| D | 1 | 52 | 763612 | 3914.14 | 809 | 785 | 194.9 |
| D | 13 | 104 | 282430 | 1445.15 | 809 | 785 | 194.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

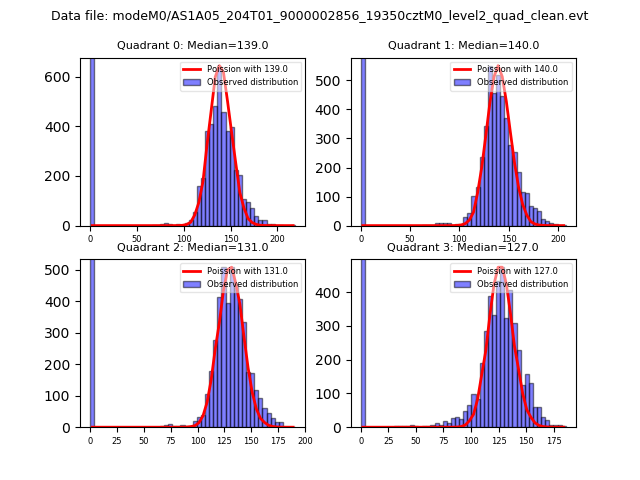

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

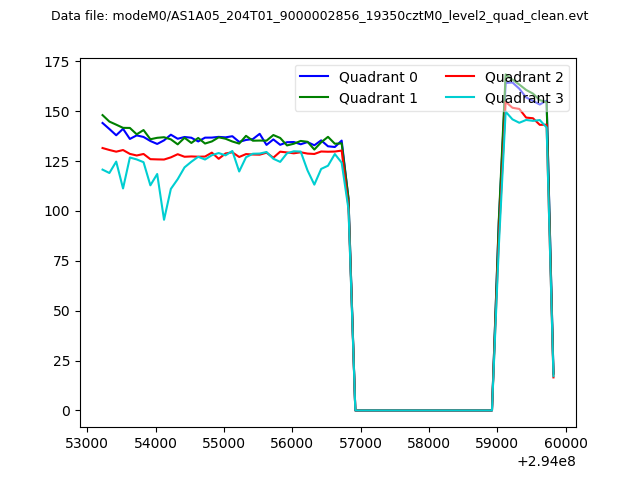

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

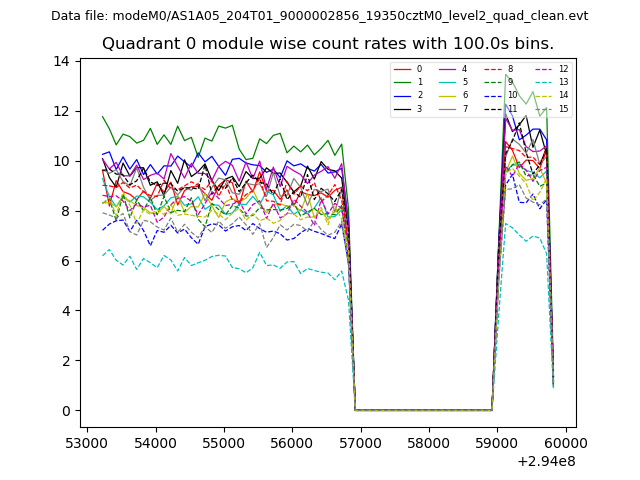

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

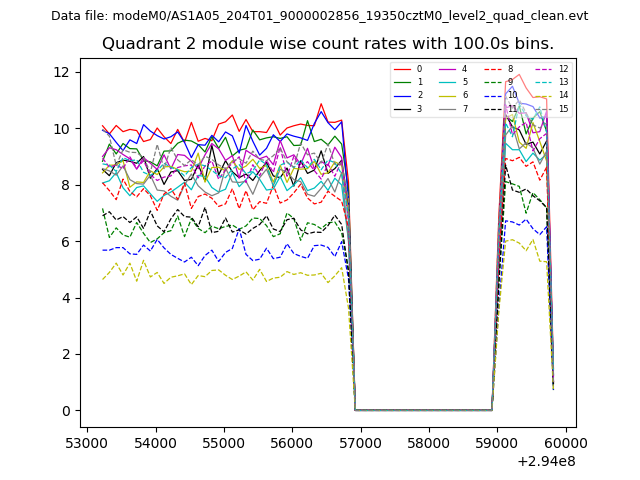

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

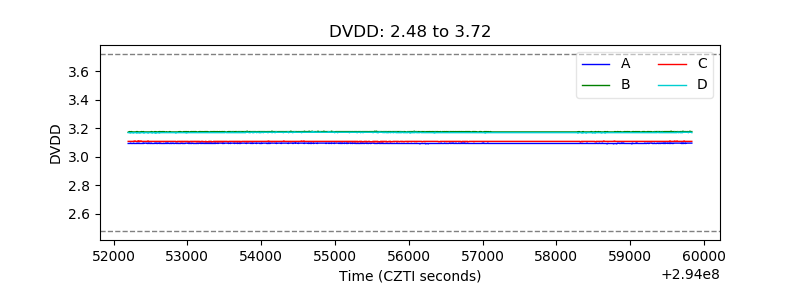

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

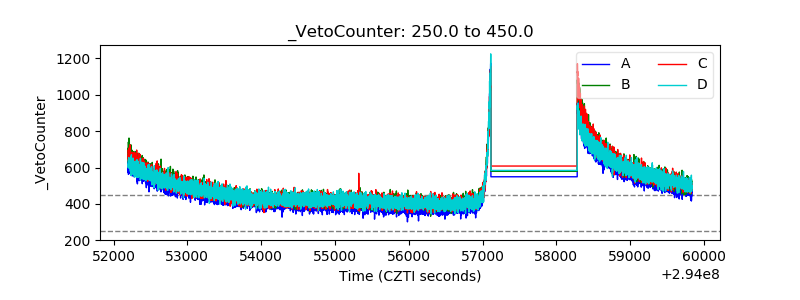

| Veto Counter |  |
