| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_204T01_9000002856_19355cztM0_level2.evt | modeM0/AS1A05_204T01_9000002856_19355cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,493,440 | 95,276,160 |
| Size | 475.4 MB | 90.9 MB |
| Events in quadrant A | 3,239,992 | 625,555 |
| Events in quadrant B | 3,406,378 | 624,760 |
| Events in quadrant C | 3,280,578 | 601,143 |
| Events in quadrant D | 4,711,029 | 562,564 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14004 | 2 |
| B | 0 | 14440 | 2 |
| C | 0 | 14038 | 3 |
| D | 0 | 18686 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6758 | 40 | 0.591891% |
| B | 6758 | 55 | 0.813850% |
| C | 6757 | 78 | 1.154358% |
| D | 6757 | 439 | 6.496966% |

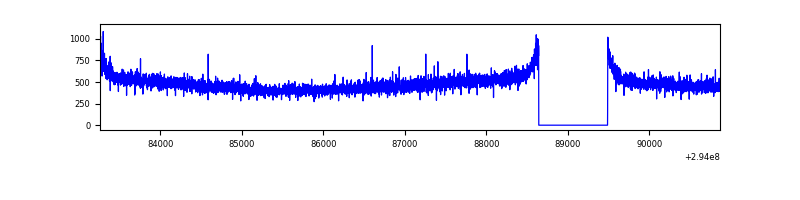

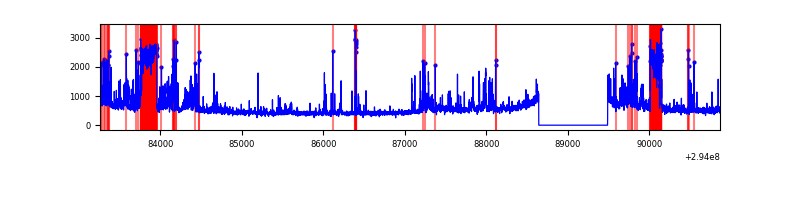

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6759 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7603 | 6759 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7602 | 6758 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7602 | 6758 | 330 | 330 | 4.34% | 4.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9169 | 49.1 | 839 | 820 | 170.1 |
| A | 0 | 226 | 7323 | 38.24 | 839 | 820 | 170.1 |
| A | 3 | 137 | 6665 | 34.37 | 839 | 820 | 170.1 |
| B | 7 | 220 | 61512 | 382.57 | 828 | 804 | 158.7 |
| B | 0 | 190 | 34983 | 215.39 | 828 | 804 | 158.7 |
| B | 0 | 229 | 31322 | 192.32 | 828 | 804 | 158.7 |
| C | 14 | 238 | 125350 | 654.09 | 805 | 811 | 190.4 |
| C | 3 | 233 | 8423 | 39.98 | 805 | 811 | 190.4 |
| C | 13 | 61 | 5678 | 25.56 | 805 | 811 | 190.4 |
| D | 7 | 238 | 817733 | 4213.97 | 792 | 770 | 193.9 |
| D | 10 | 66 | 507059 | 2611.49 | 792 | 770 | 193.9 |
| D | 11 | 176 | 233022 | 1197.98 | 792 | 770 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

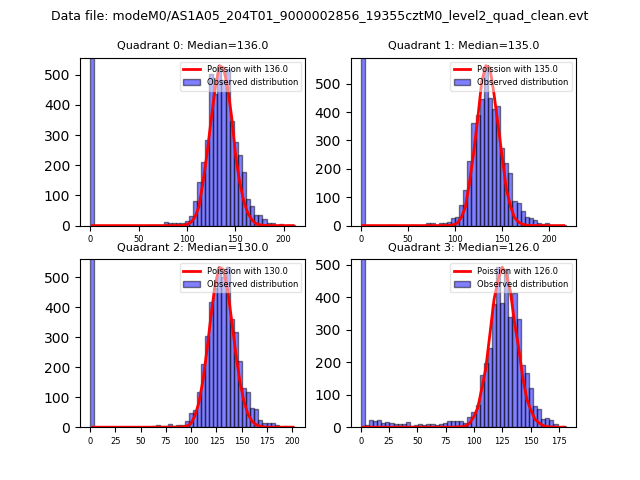

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

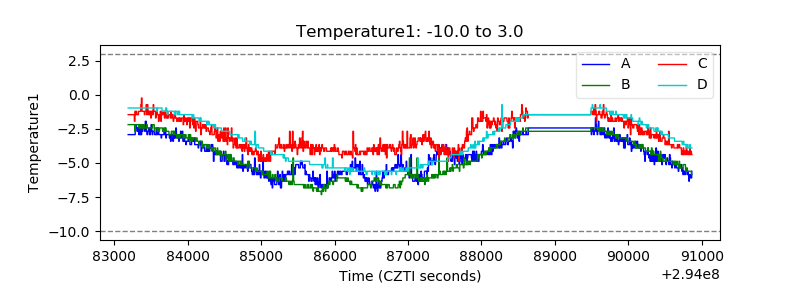

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

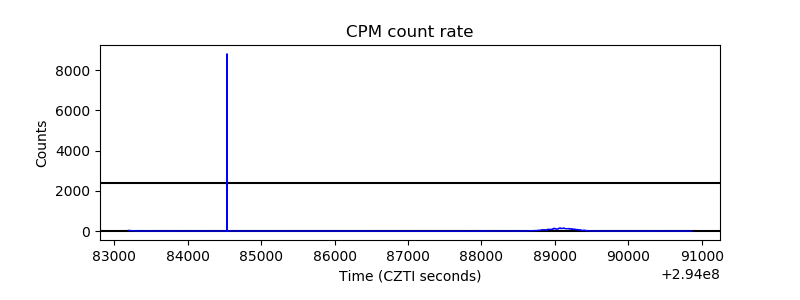

| _CPM_Rate |  |

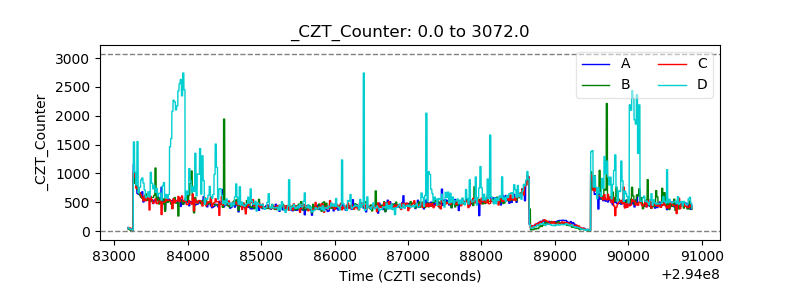

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

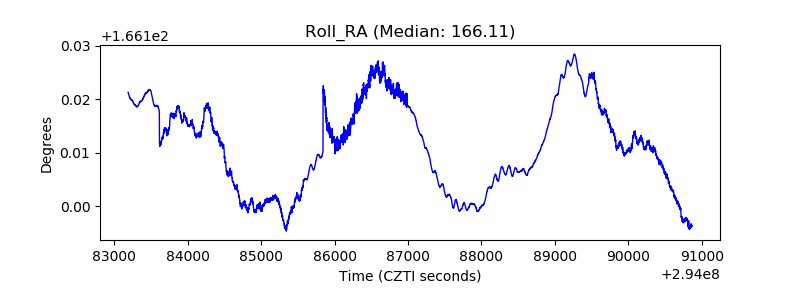

| _Roll_RA |  |
| Veto Counter |  |
